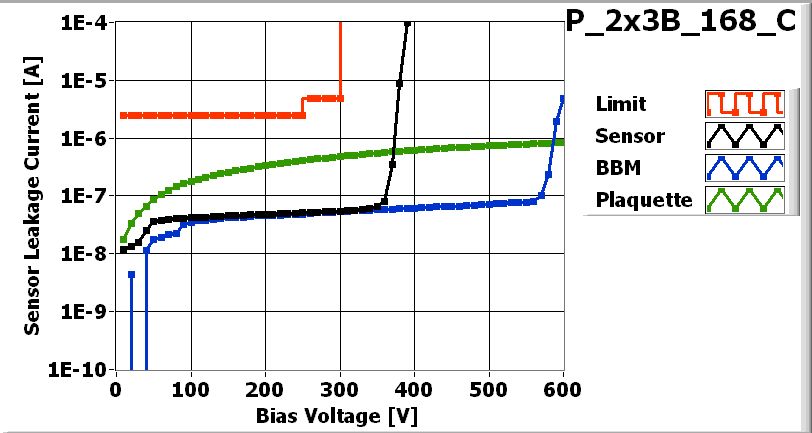

![[IMAGE] of](P_2x3B_168_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

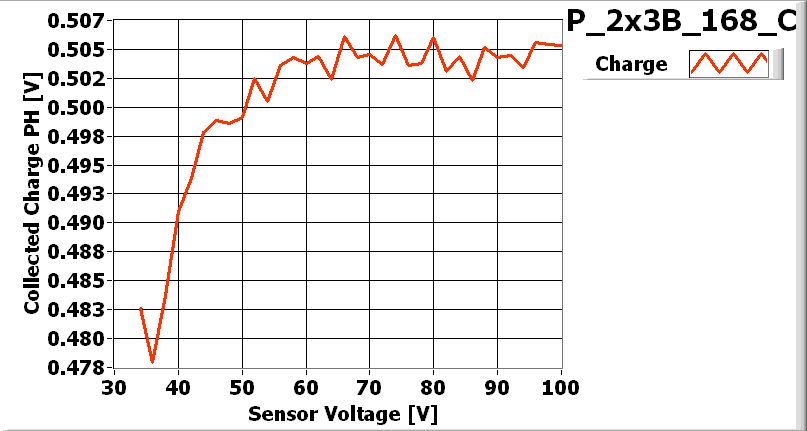

![[IMAGE] of](P_2x3B_168_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_168-2x3B |
| VHDI | 2x3_606 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 24B |
| ROC1 | KBNG0QT | 54B |
| ROC2 | KBNG0QT | 75C |
| ROC3 | KBNG0QT | 55B |
| ROC4 | KBNG0QT | 44D |
| ROC5 | KBNG0QT | 64B |
Inspected by Lockwood Gale on date 5/22/2007
Inspected by Lockwood Gale on date 5/22/2007
| LR_dev | 0.021 |
| LL_dev | 0.033 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems, ROC 4 Ch 1 2 attempts |
PLAQUETTE made READY for ENCAPSULATION on 5/22/2007 by Lockwood Gale
P_2x3B_168_Con 5/22/2007 1:47 PM
P_2x3B_168_Con 5/22/2007 1:47 PM
PLAQUETTE encapsulated on 5/22/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/22/2007 by Perera Rajiv
P_2x3B_168_C-1on 5/23/2007 11:35 AM
P_2x3B_168_C-1on 5/23/2007 11:35 AM
PLAQUETTE TESTED on 2007-05-23 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 160 | 146 | 172 | 146 | 156 | 170 | |
| Vana | 146 | 121 | 142 | 141 | 143 | 148 | |
| Cal_Del | 63 | 75 | 79 | 88 | 61 | 60 | |
| Vthrs_Comp | 92 | 77 | 88 | 74 | 89 | 90 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 4 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 0 | 0 | 0 | 4 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

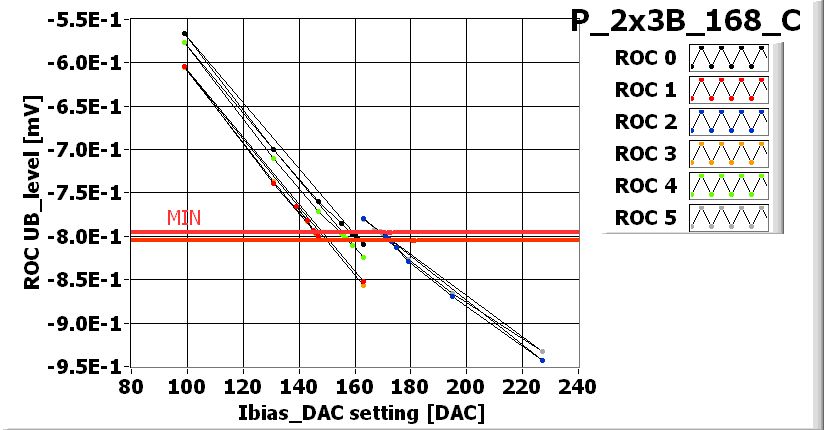

![[IMAGE] of](P_2x3B_168_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

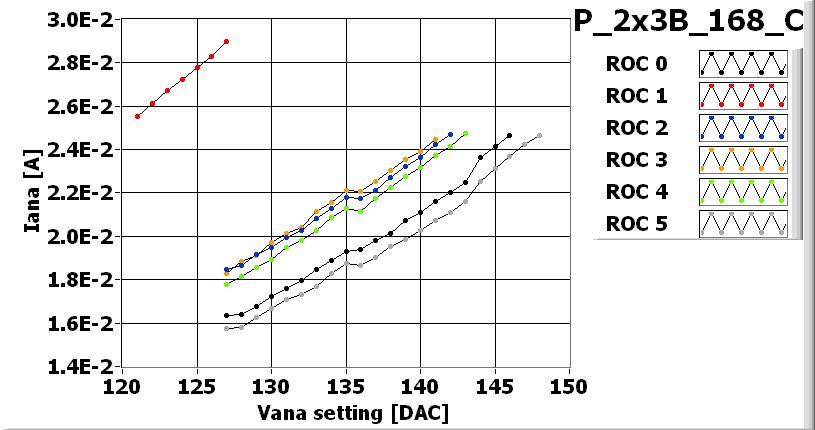

![[IMAGE] of](P_2x3B_168_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_168_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_168_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_168_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_168_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 130 | 125 | 95 | 100 | 100 |
| Vsf | 145 | 135 | 140 | 140 | 145 | 145 |
| VoffsetOp | 105 | 85 | 110 | 80 | 85 | 130 |
| VIbias_PH | 95 | 95 | 100 | 100 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_168_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_168_C-1-580-efficiency.jpg)

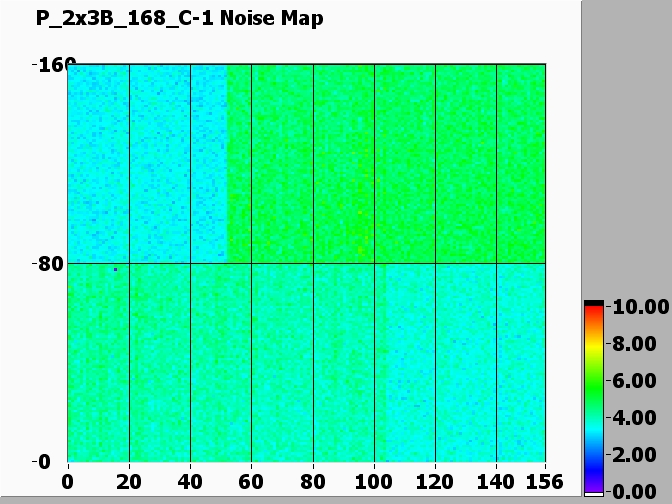

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_168_C-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_168_C-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
