P_2x3B_168

P_2x3B_168_C

Production testing

Date:5/22/2007

Operator: Emily Grace

start testing time:1:47 PM

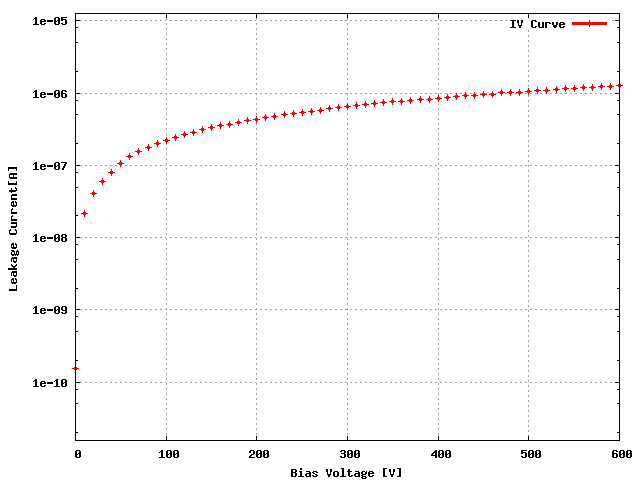

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 24B

ROC1 KBNG0QT 54B

ROC2 KBNG0QT 75C

ROC3 KBNG0QT 55B

ROC4 KBNG0QT 44D

ROC5 KBNG0QT 64B

ROC	ROC wafer	Label
ROC0	KBNG0QT	24B
ROC1	KBNG0QT	54B
ROC2	KBNG0QT	75C
ROC3	KBNG0QT	55B
ROC4	KBNG0QT	44D
ROC5	KBNG0QT	64B

Depletion Voltage is -56 and suggested operational voltage is -96

Ibias_DAC, Ibias_DAC Data 160 146 170 146 156 170

Vana, VanaData 146 121 142 141 143 148

CalDelData and plots 63 75 79 88 61 60

VthrCompData and plots 92 77 88 74 89 90

TestDdata ,TestD Plots 1 1 3 0 0 1

LightData ,Light Plots 1 0 0 0 0 4

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

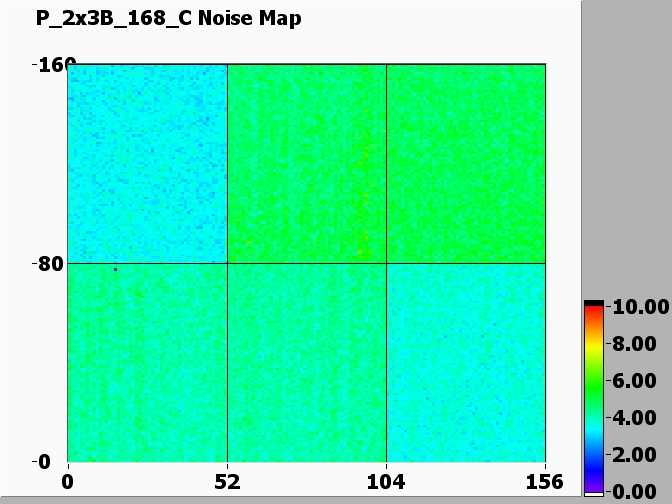

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	125	125	90	100	100
Vsf	145	130	140	140	145	145
VoffsetOp	105	85	110	80	85	130
VIbias_PH	95	100	100	100	95	100

ROC0 NOISE			MEAN = 4.078529 SIGMA = 0.334536
ROC1 NOISE			MEAN = 4.123878 SIGMA = 0.334716
ROC2 NOISE			MEAN = 3.618743 SIGMA = 0.284019

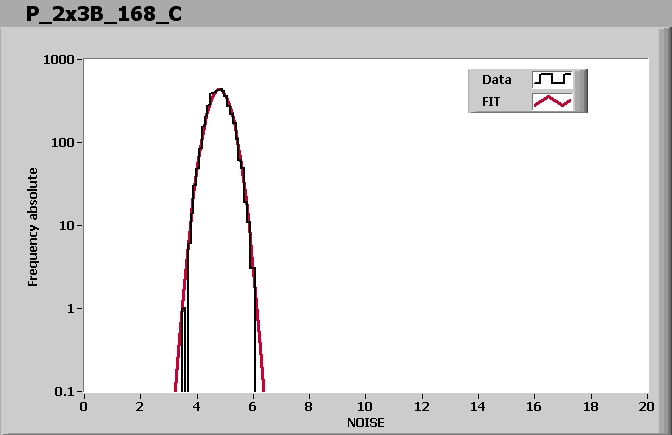

ROC3 NOISE			MEAN = 4.803824 SIGMA = 0.381336

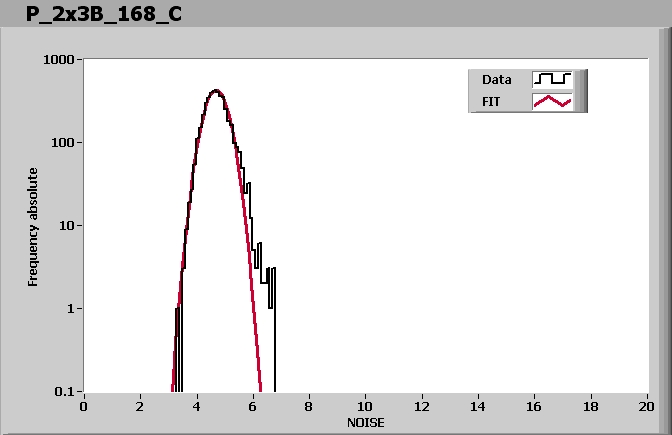

ROC4 NOISE			MEAN = 4.686168 SIGMA = 0.384084

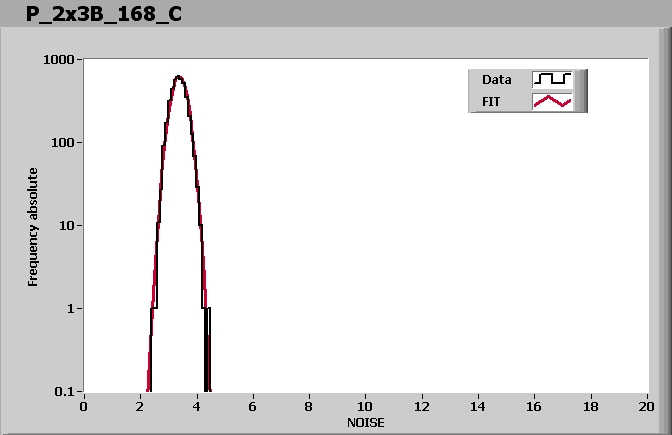

ROC5 NOISE			MEAN = 3.366909 SIGMA = 0.263930

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:11 PM

Ibias_DAC, Ibias_DAC Data	160	146	170	146	156	170
Vana, VanaData	146	121	142	141	143	148
CalDelData and plots	63	75	79	88	61	60
VthrCompData and plots	92	77	88	74	89	90
TestDdata ,TestD Plots	1	1	3	0	0	1
LightData ,Light Plots	1	0	0	0	0	4
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
