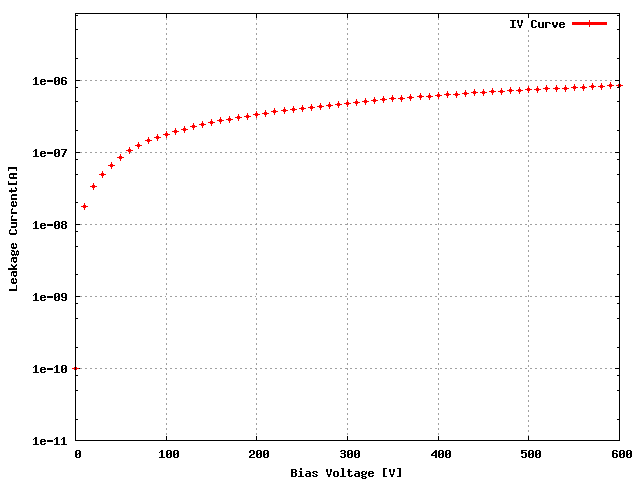

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KBNG0QT	24B
ROC1	KBNG0QT	54B
ROC2	KBNG0QT	75C
ROC3	KBNG0QT	55B
ROC4	KBNG0QT	44D
ROC5	KBNG0QT	64B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	160	146	172	146	156	170
Vana, VanaData	146	121	142	141	143	148
CalDelData and plots	63	75	79	88	61	60
VthrCompData and plots	92	77	88	74	89	90
TestDdata ,TestD Plots	1	1	0	1	0	1
LightData ,Light Plots	1	0	0	0	0	4
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

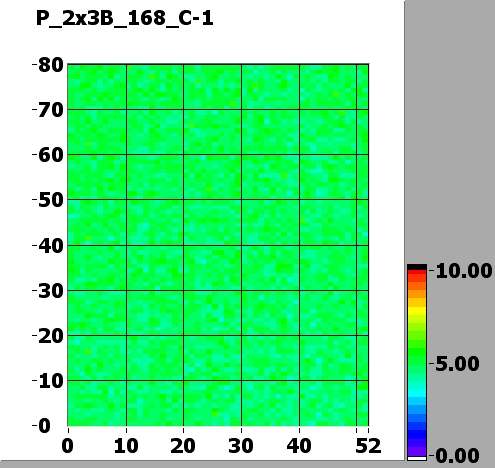

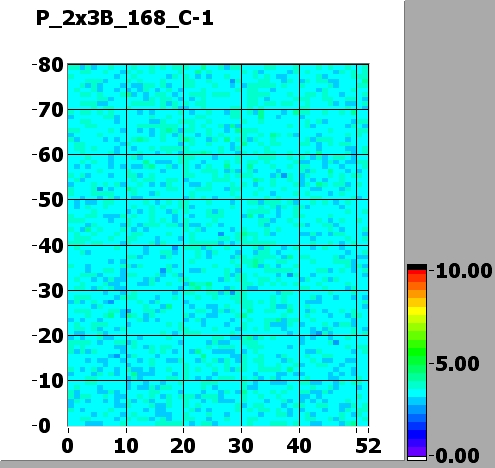

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

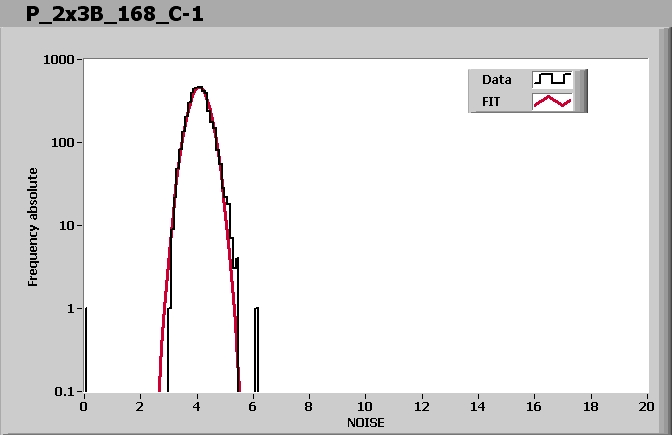

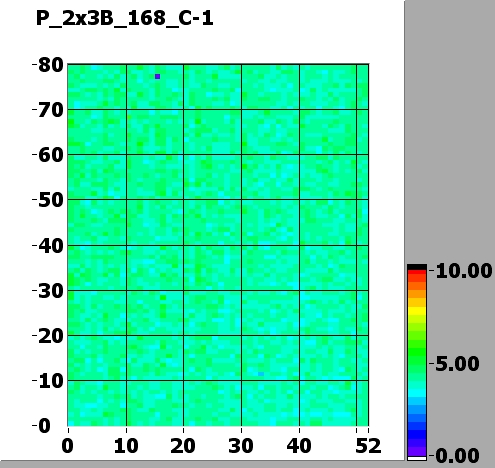

ROC0 NOISE			MEAN = 4.081718 SIGMA = 0.351306

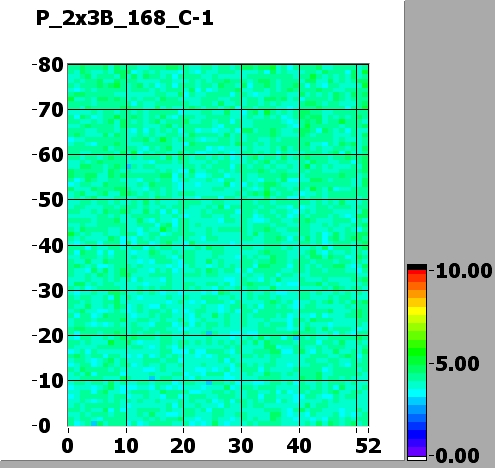

ROC1 NOISE			MEAN = 3.979160 SIGMA = 0.328643

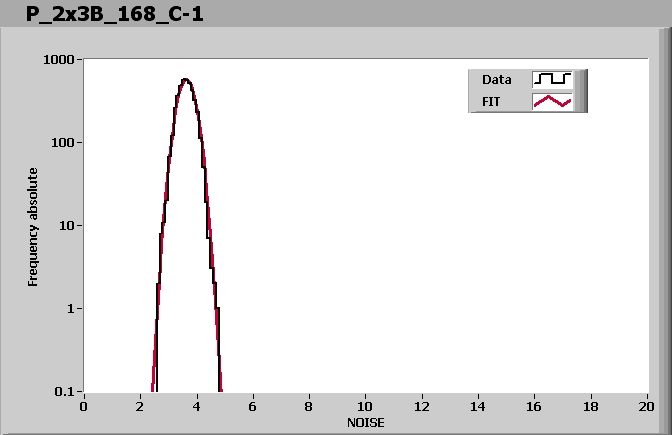

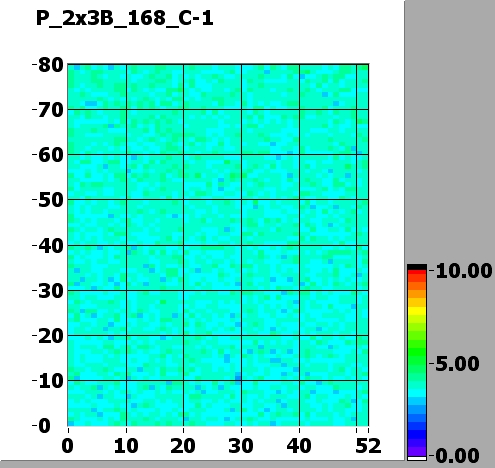

ROC2 NOISE			MEAN = 3.627982 SIGMA = 0.291085

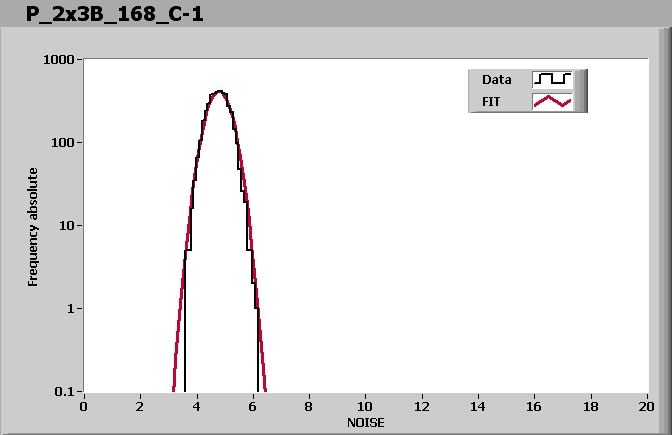

ROC3 NOISE			MEAN = 4.785072 SIGMA = 0.397990

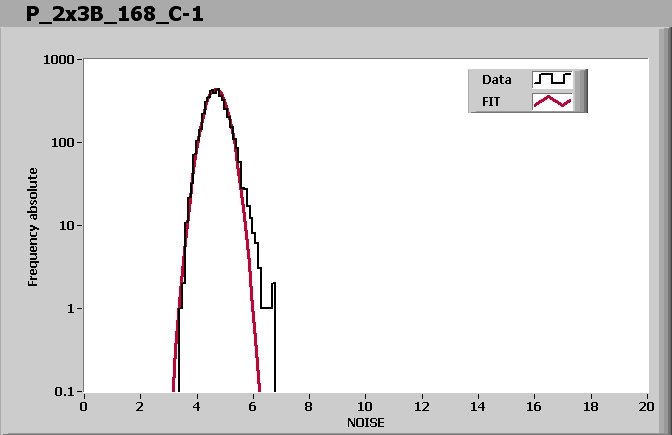

ROC4 NOISE			MEAN = 4.680616 SIGMA = 0.376284

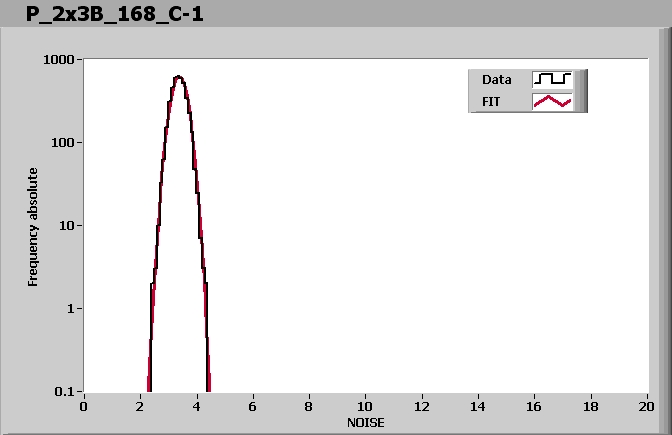

ROC5 NOISE			MEAN = 3.369358 SIGMA = 0.262205

Comment (if any):

P_2x3B_168_C.html,

End testing time: 12:00 PM
