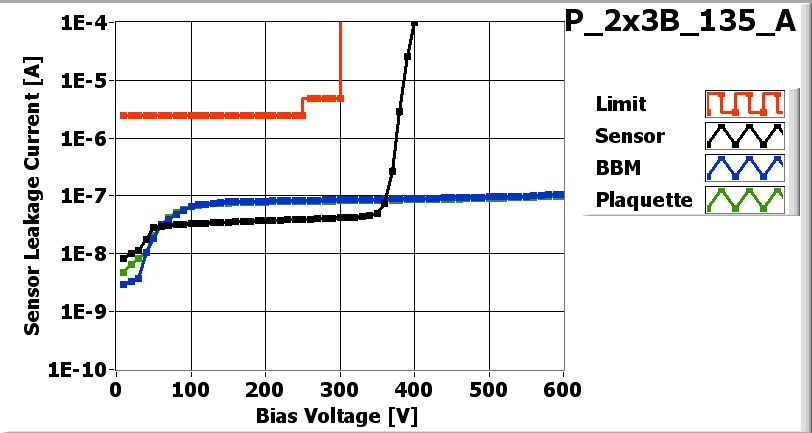

![[IMAGE] of](P_2x3B_135_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_135_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 3/20/2007
| Part | ID |
|---|---|
| BBM | BBM_135-2x3B |
| VHDI | 2x3_500 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 37D |
| ROC1 | W36_XD4K3LT | 37C |
| ROC2 | W36_XD4K3LT | 37B |
| ROC3 | W36_XD4K3LT | 54D |
| ROC4 | W36_XD4K3LT | 55A |
| ROC5 | W36_XD4K3LT | 55B |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.044 |
| LL_dev | 0.075 |
| FINAL COMMENT by Lockwood Gale | assembly successful No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x3B_135_Aon 3/29/2007 11:24 AM
P_2x3B_135_Aon 3/29/2007 11:24 AM
PLAQUETTE TESTED on 2007-03-29 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 138 | 140 | 138 | 148 | 136 | |
| Vana | 122 | 138 | 132 | 128 | 141 | 134 | |
| Cal_Del | 84 | 84 | 97 | 88 | 89 | 92 | |
| Vthrs_Comp | 65 | 85 | 69 | 78 | 84 | 81 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

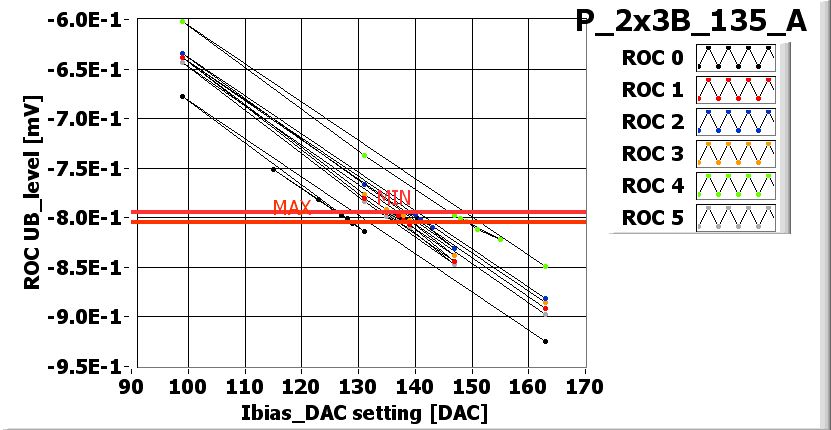

![[IMAGE] of](P_2x3B_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

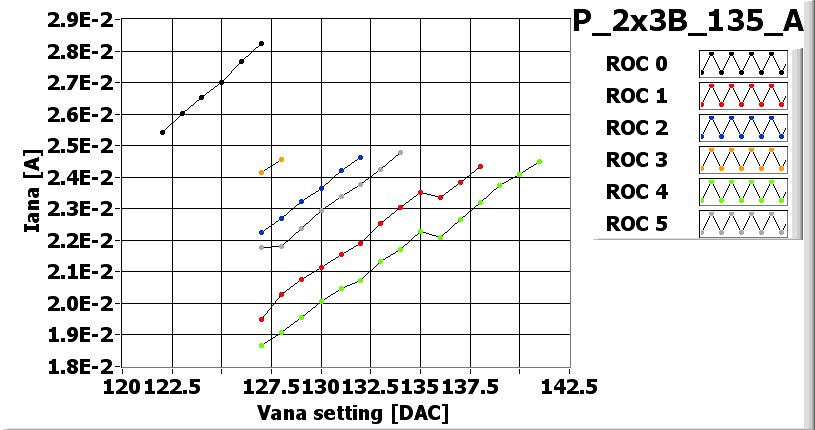

![[IMAGE] of](P_2x3B_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 135 | 95 | 115 | 110 | 115 |
| Vsf | 135 | 140 | 140 | 130 | 140 | 140 |
| VoffsetOp | 50 | 95 | 80 | 80 | 100 | 80 |
| VIbias_PH | 105 | 100 | 95 | 100 | 105 | 95 |

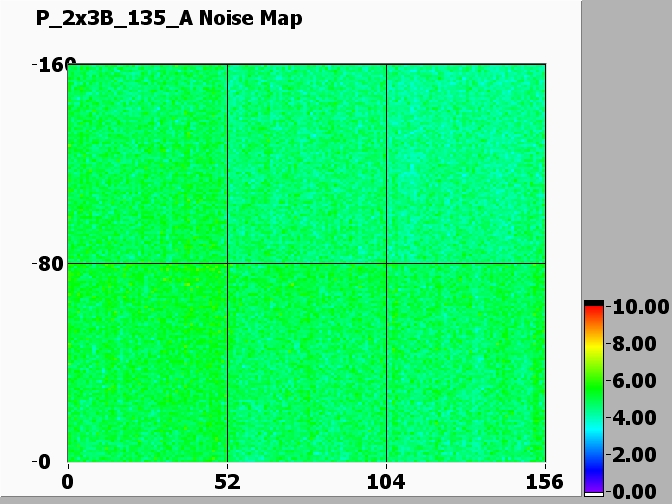

Noise MAP
![[IMAGE] of](P_2x3B_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_135_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
