P_2x3B_135

P_2x3B_135_A

Production testing

Date:3/29/2007

Operator: Joseph Clampitt

start testing time:11:24 AM

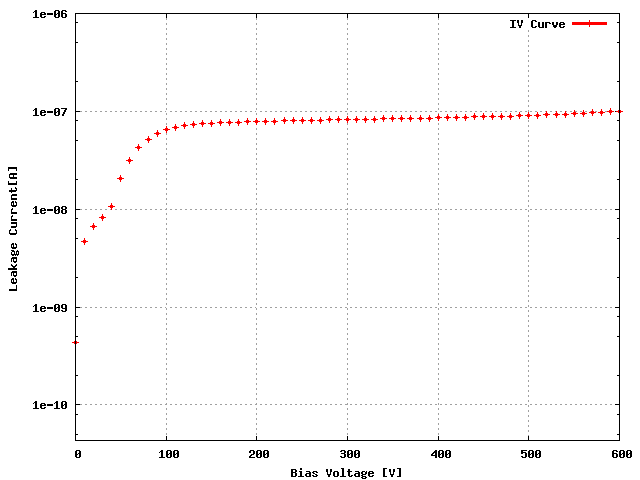

Sensor: S_2x3B_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W36_XD4K3LT 37D

ROC1 W36_XD4K3LT 37C

ROC2 W36_XD4K3LT 37B

ROC3 W36_XD4K3LT 54D

ROC4 W36_XD4K3LT 55A

ROC5 W36_XD4K3LT 55B

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	37D
ROC1	W36_XD4K3LT	37C
ROC2	W36_XD4K3LT	37B
ROC3	W36_XD4K3LT	54D
ROC4	W36_XD4K3LT	55A
ROC5	W36_XD4K3LT	55B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 128 138 140 138 148 136

Vana, VanaData 122 138 132 128 141 134

CalDelData and plots 84 84 97 88 89 92

VthrCompData and plots 65 85 69 78 84 81

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 1 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

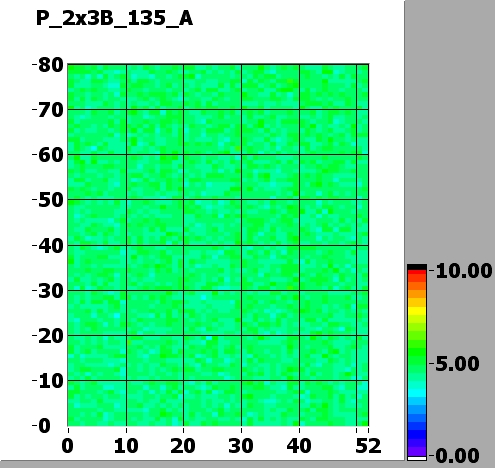

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	135	95	115	110	115
Vsf	135	140	140	130	140	140
VoffsetOp	50	95	80	80	100	80
VIbias_PH	105	100	95	100	105	95

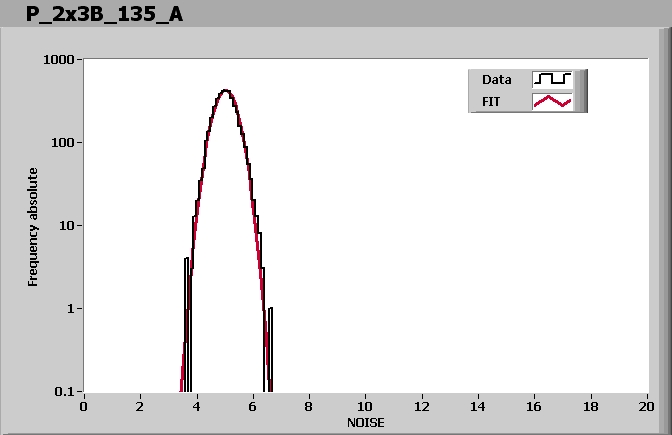

ROC0 NOISE			MEAN = 5.015818 SIGMA = 0.386832
ROC1 NOISE			MEAN = 4.781271 SIGMA = 0.381510
ROC2 NOISE			MEAN = 4.715849 SIGMA = 0.390885
ROC3 NOISE			MEAN = 4.389160 SIGMA = 0.321152
ROC4 NOISE			MEAN = 4.568078 SIGMA = 0.350005
ROC5 NOISE			MEAN = 4.841471 SIGMA = 0.393182

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:44 AM

Ibias_DAC, Ibias_DAC Data	128	138	140	138	148	136
Vana, VanaData	122	138	132	128	141	134
CalDelData and plots	84	84	97	88	89	92
VthrCompData and plots	65	85	69	78	84	81
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	1	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
