Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_123-2x3B |
| VHDI | 2x3_741 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 18A |
| ROC1 | W47_DXLQF5T | 17D |
| ROC2 | W47_DXLQF5T | 16D |
| ROC3 | W55_D3LQE4T | 67C |
| ROC4 | W55_D3LQE4T | 67D |
| ROC5 | W55_D3LQE4T | 68C |
Inspected by Lockwood Gale on date 11/21/2007
| LR_dev | 0.056 |
| LL_dev | 0.057 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 5,ch1,2Fl no wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/21/2007 by Ozhan Koybasi
P_2x3B_123_Aon 11/21/2007 4:52 PM
P_2x3B_123_A-1on 11/21/2007 5:07 PM
P_2x3B_123_A-2on 11/21/2007 5:27 PM
P_2x3B_123_A-3on 11/21/2007 5:42 PM
P_2x3B_123_A-4on 11/21/2007 5:59 PM
P_2x3B_123_A-5on 11/21/2007 6:29 PM
P_2x3B_123_A-6on 11/21/2007 6:37 PM
P_2x3B_123_A-7on 11/21/2007 6:55 PM
P_2x3B_123_A-8on 11/21/2007 7:10 PM
P_2x3B_123_A-9on 11/26/2007 4:06 PM
P_2x3B_123_A-10on 11/26/2007 4:18 PM
P_2x3B_123_A-10on 11/26/2007 4:18 PM
Inspected by Bolla Gino on date 11/26/2007
| Picture | Comment |
|---|---|

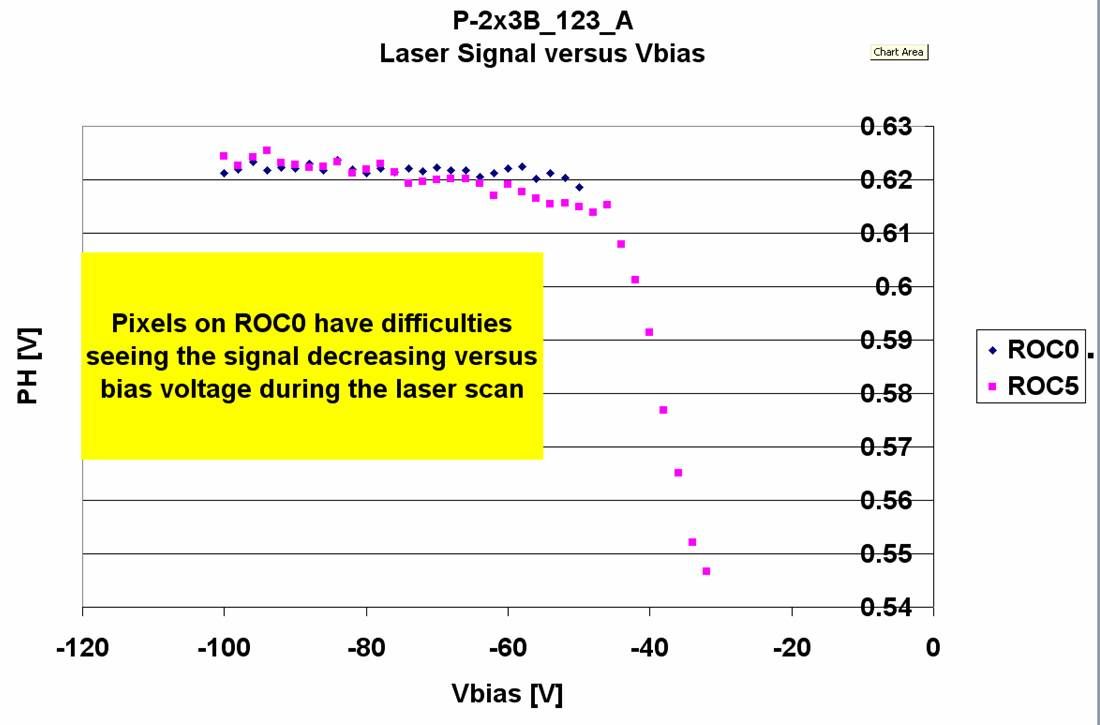

| excell plot showing the laser signal in ROC0 and ROC5. Somehow the ROC0 seems to be insensitive to small charges. We ship the toy to FNAL to see what they find. |
PLAQUETTE TESTED on 2007-11-26 by Gino Bolla
![[IMAGE] of](P_2x3B_123_A_IV.jpg) |
|
|||
![[IMAGE] of](P_2x3B_123_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 176 | 146 | 154 | 146 | 148 | 166 | |
| Vana | 146 | 137 | 148 | 151 | 144 | 159 | |
| Cal_Del | 52 | 81 | 81 | 93 | 94 | 76 | |
| Vthrs_Comp | 83 | 88 | 91 | 86 | 89 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_123_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

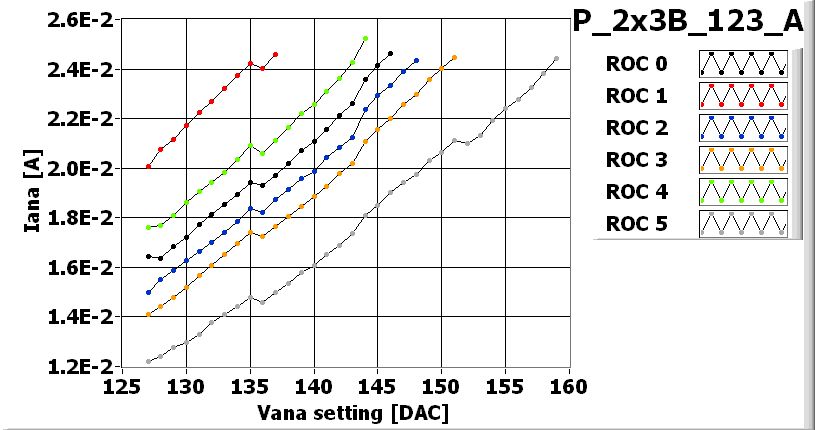

![[IMAGE] of](P_2x3B_123_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_123_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_123_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_123_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_123_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 95 | 100 | 100 | 100 | 95 |
| Vsf | 145 | 140 | 150 | 150 | 145 | 165 |
| VoffsetOp | 130 | 100 | 120 | 100 | 105 | 100 |
| VIbias_PH | 100 | 95 | 100 | 100 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_123_A-10-580-noise.jpg)

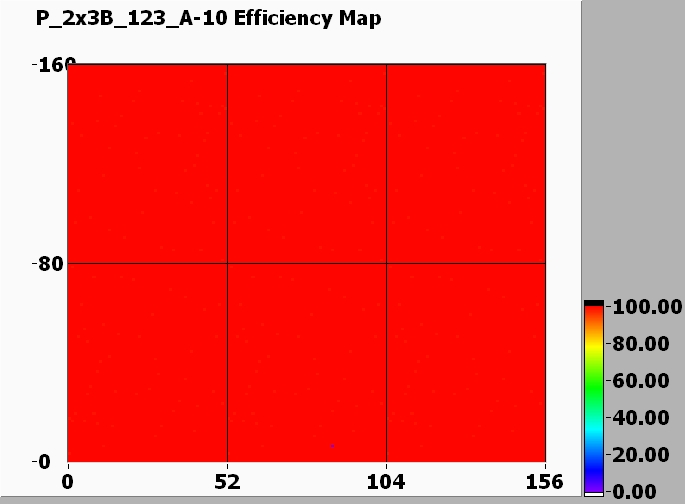

Efficiency MAP
![[IMAGE] of](P_2x3B_123_A-10-580-efficiency.jpg)

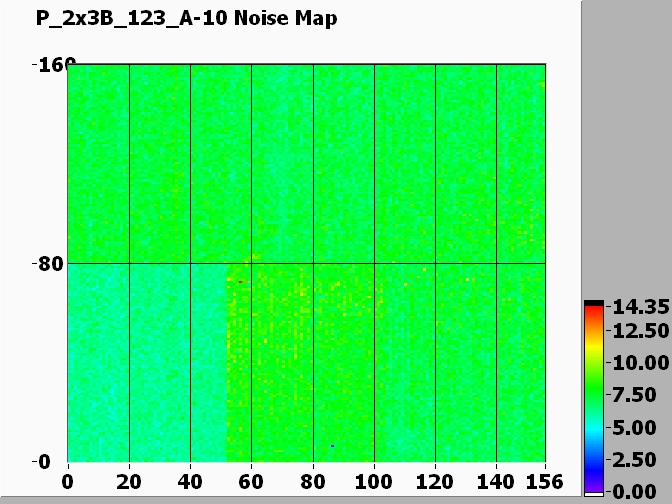

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_123_A-10-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_123_A-10-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
