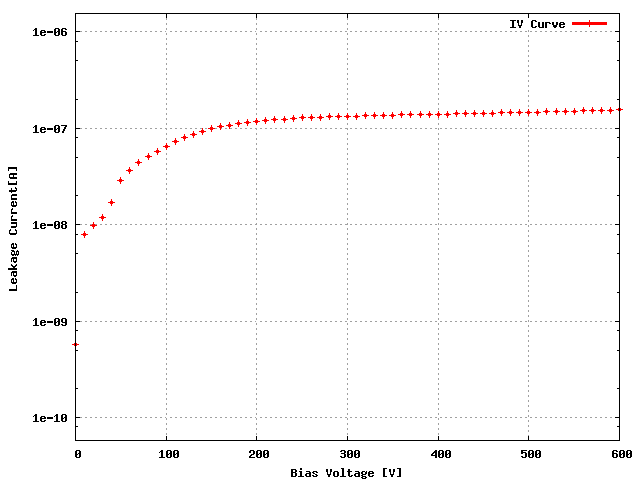

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 18A |
| ROC1 | W47_DXLQF5T | 17D |
| ROC2 | W47_DXLQF5T | 16D |
| ROC3 | W55_D3LQE4T | 67C |
| ROC4 | W55_D3LQE4T | 67D |
| ROC5 | W55_D3LQE4T | 68C |
| Ibias_DAC, Ibias_DAC Data | 176 | 146 | 154 | 146 | 146 | 166 |
| Vana, VanaData | 146 | 137 | 149 | 151 | 144 | 159 |
| CalDelData and plots | 52 | 81 | 81 | 93 | 94 | 76 |
| VthrCompData and plots | 83 | 88 | 93 | 86 | 89 | 90 | Depletion Voltage is -60 and suggested operational voltage is -100
