P_2x3B_123_A-10

Production testing

Date:11/26/2007

Operator: Gino Bolla

start testing time:4:18 PM

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W47_DXLQF5T18A
ROC1W47_DXLQF5T17D
ROC2W47_DXLQF5T16D
ROC3W55_D3LQE4T67C
ROC4W55_D3LQE4T67D
ROC5W55_D3LQE4T68C

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 176 146 154 146 148 166
Vana, VanaData 146 137 148 151 144 159
CalDelData and plots528181939476
VthrCompData and plots838891868990
TestDdata ,TestD Plots010001
LightData ,Light Plots000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe1209510010010095
Vsf145140150150145165
VoffsetOp130100120100105100
VIbias_PH10095100100100105

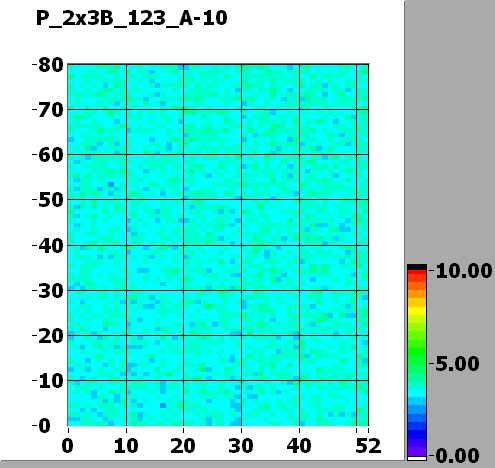

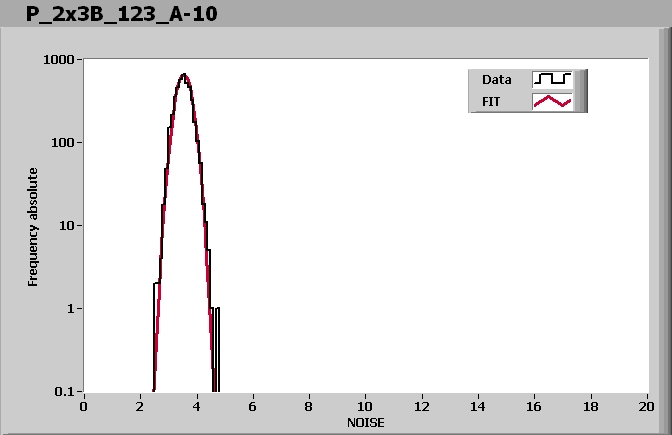

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 3.535387

SIGMA = 0.255465

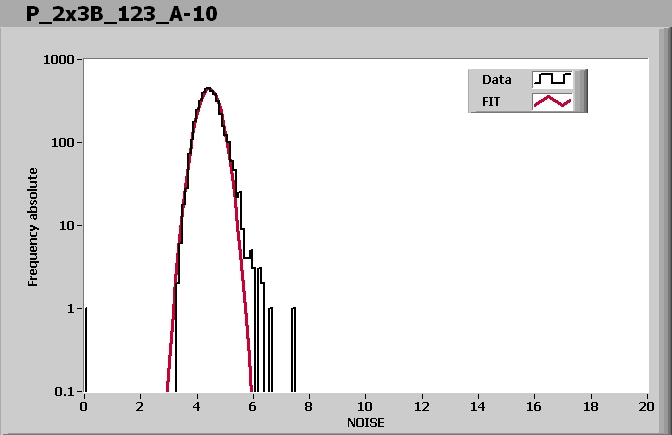

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.440338

SIGMA = 0.365546

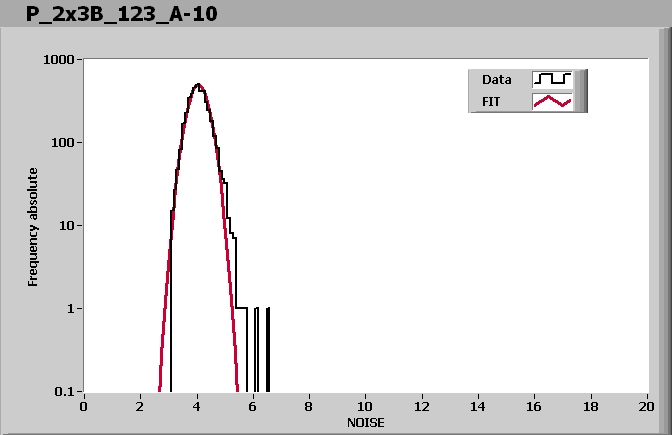

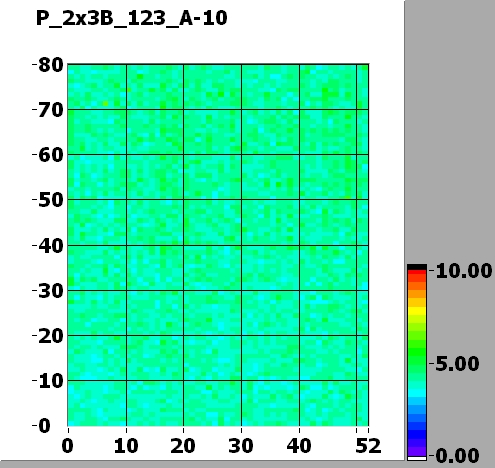

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.051822

SIGMA = 0.336770

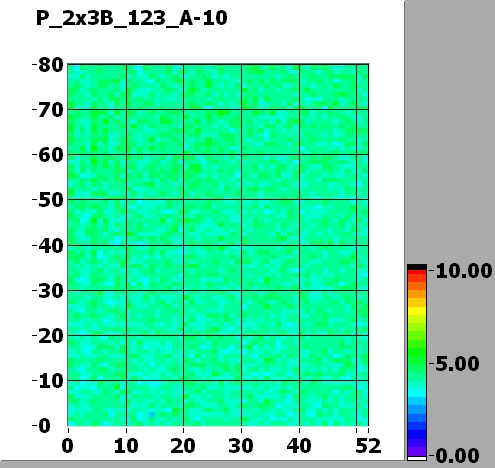

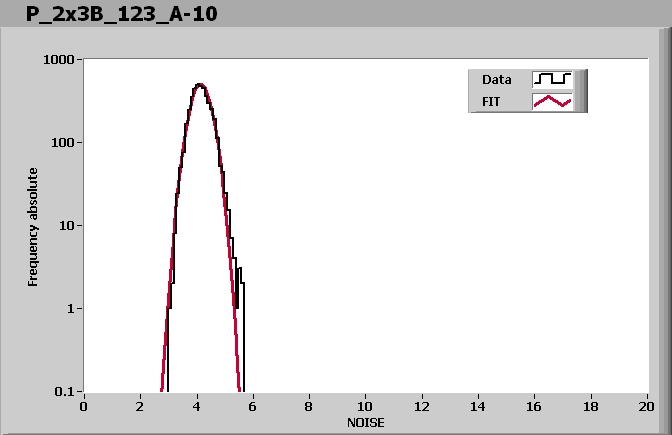

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.134285

SIGMA = 0.333098
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.031553

SIGMA = 0.298622

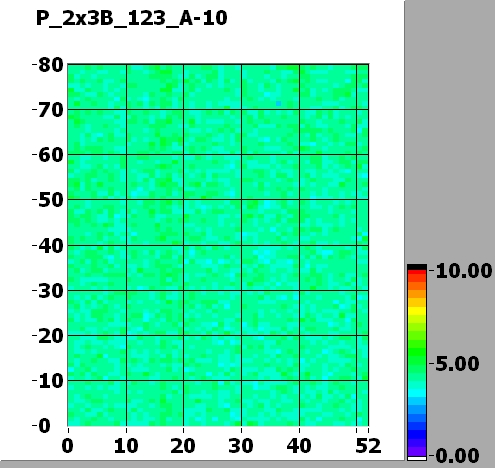

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.149762

SIGMA = 0.325496

Comment (if any): troubles with the laser measurements on ROC0

This Device have been tested 10Times prior to this one and here are the links to the previous tests:

P_2x3B_123_A-1.html,

P_2x3B_123_A-2.html,

P_2x3B_123_A-3.html,

P_2x3B_123_A-4.html,

P_2x3B_123_A-5.html,

P_2x3B_123_A-6.html,

P_2x3B_123_A-7.html,

P_2x3B_123_A-8.html,

P_2x3B_123_A-9.html,

,

End testing time: 4:41 PM
