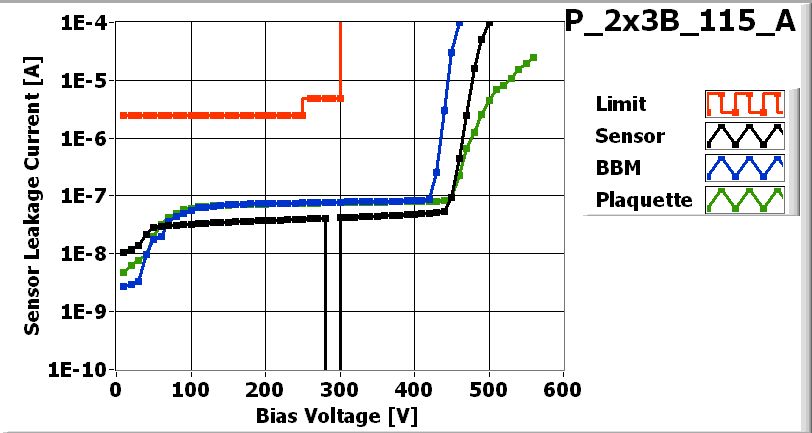

![[IMAGE] of](P_2x3B_115_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 560 V |
![[IMAGE] of](P_2x3B_115_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_115-2x3B |
| VHDI | 2x3_613 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 57D |
| ROC1 | W34_XA4K3PT | 57C |
| ROC2 | W34_XA4K3PT | 57B |
| ROC3 | W34_XA4K3PT | 30C |
| ROC4 | W34_XA4K3PT | 31B |
| ROC5 | W34_XA4K3PT | 31C |
Inspected by Arndt Kirk on date 3/7/2007
| LR_dev | 0.024 |
| LL_dev | 0.027 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. VHDI from "new" batch. Problems bonding channels 1 and 35 pads on VHDI for ROC-VHDI wirebonds. ROC0 chn 1,35; ROC1 chn 35; ROC2 chn 1; ROC4 chn 1,35 required scraping VHDI pads and multiple attempts to bond. |
PLAQUETTE made READY for ENCAPSULATION on 3/7/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/7/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/7/2007 by Ozhan Koybasi
P_2x3B_115_Aon 3/8/2007 12:02 PM
P_2x3B_115_Aon 3/8/2007 12:02 PM
PLAQUETTE TESTED on 2007-03-08 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 132 | 140 | 146 | 134 | 146 | 128 | |
| Vana | 128 | 127 | 140 | 115 | 140 | 127 | |
| Cal_Del | 96 | 95 | 84 | 80 | 80 | 84 | |
| Vthrs_Comp | 66 | 71 | 84 | 73 | 83 | 80 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

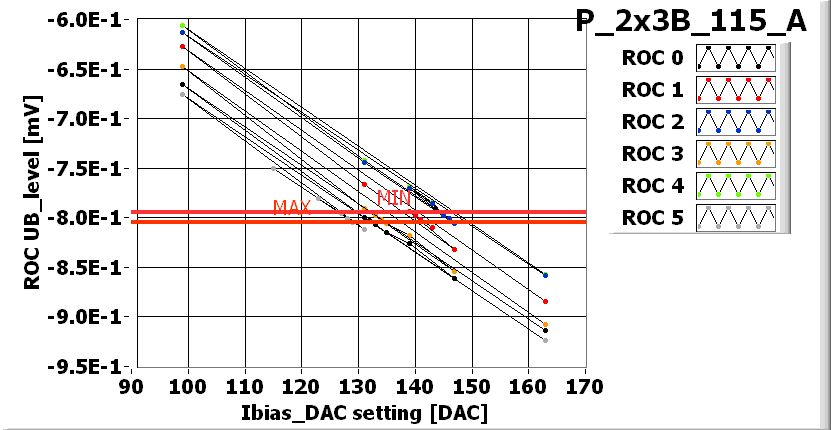

![[IMAGE] of](P_2x3B_115_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

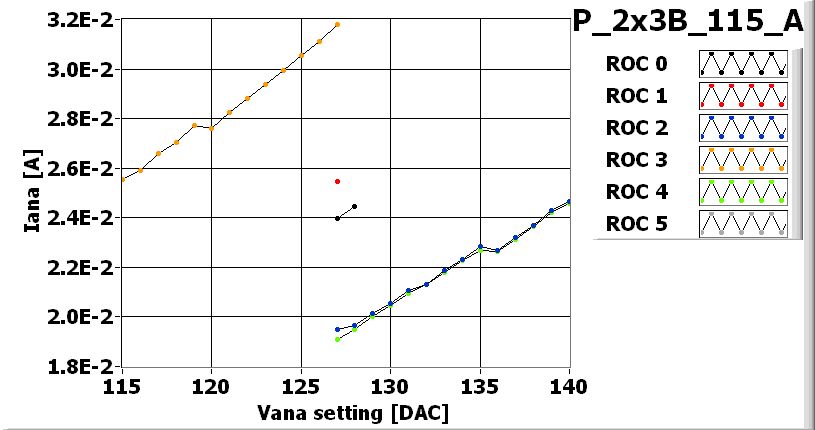

![[IMAGE] of](P_2x3B_115_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_115_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_115_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_115_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_115_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 120 | 110 | 140 | 115 | 125 |
| Vsf | 140 | 140 | 140 | 140 | 140 | 130 |
| VoffsetOp | 80 | 65 | 110 | 55 | 100 | 80 |
| VIbias_PH | 95 | 100 | 100 | 105 | 100 | 95 |

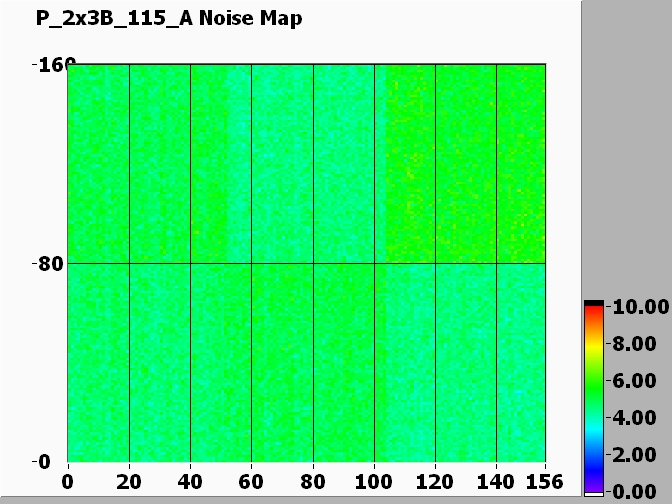

Noise MAP
![[IMAGE] of](P_2x3B_115_A-540-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_115_A-540-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
