P4R_063
Unbumped pixels are red, dead are black, noisy are yellow, and undecoded are blue
Plaquette
Position
Purdue Map
FNAL Plaq. Map
FNAL Panel Map

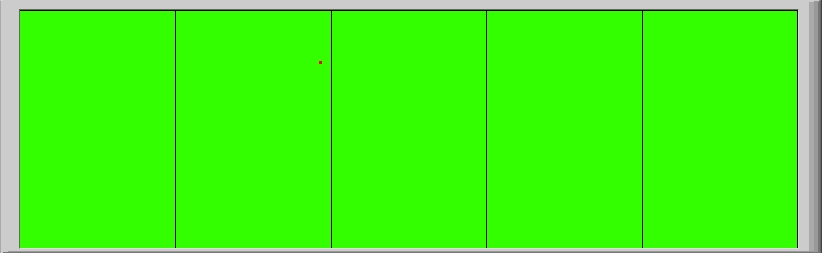

P_1x5L_115_A
4
P_2x4T_155_A
3

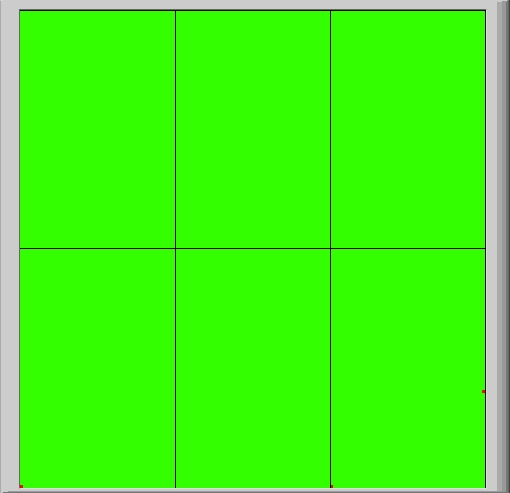

P_2x3B_115_A
2
P_1x2R_050_C
1
Panel assembly comments
Overall panel grade:
A
