P_2x3B_115

P_2x3B_115_A

Production testing

Date:3/8/2007

Operator: Joseph Clampitt

start testing time:12:02 PM

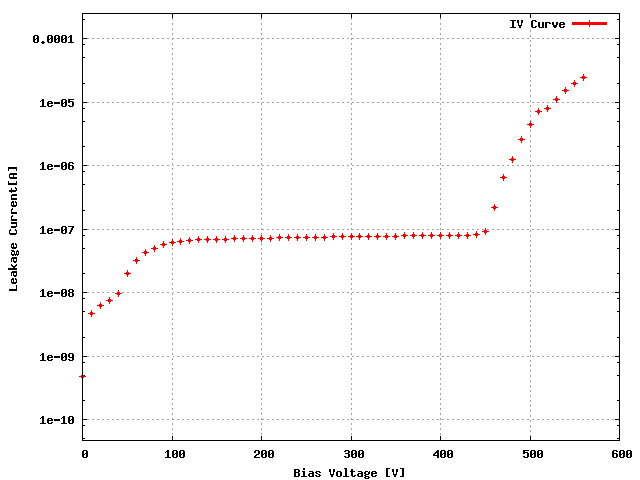

Sensor: S_2x3B_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 57D

ROC1 W34_XA4K3PT 57C

ROC2 W34_XA4K3PT 57B

ROC3 W34_XA4K3PT 30C

ROC4 W34_XA4K3PT 31B

ROC5 W34_XA4K3PT 31C

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	57D
ROC1	W34_XA4K3PT	57C
ROC2	W34_XA4K3PT	57B
ROC3	W34_XA4K3PT	30C
ROC4	W34_XA4K3PT	31B
ROC5	W34_XA4K3PT	31C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 132 140 146 134 146 128

Vana, VanaData 128 127 140 115 140 127

CalDelData and plots 96 95 84 80 80 84

VthrCompData and plots 66 71 84 73 83 80

TestDdata ,TestD Plots 1 0 1 1 0 0

LightData ,Light Plots 0 0 1 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

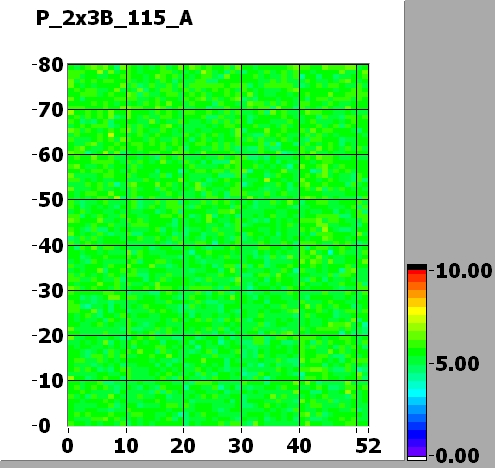

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	120	110	140	115	125
Vsf	140	140	140	140	140	130
VoffsetOp	80	65	110	55	100	80
VIbias_PH	95	100	100	105	100	95

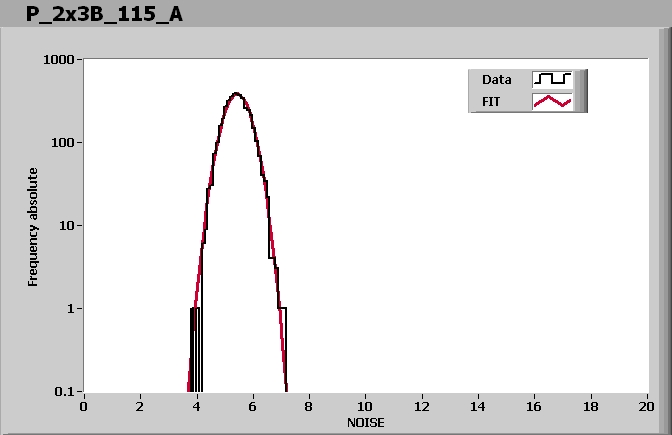

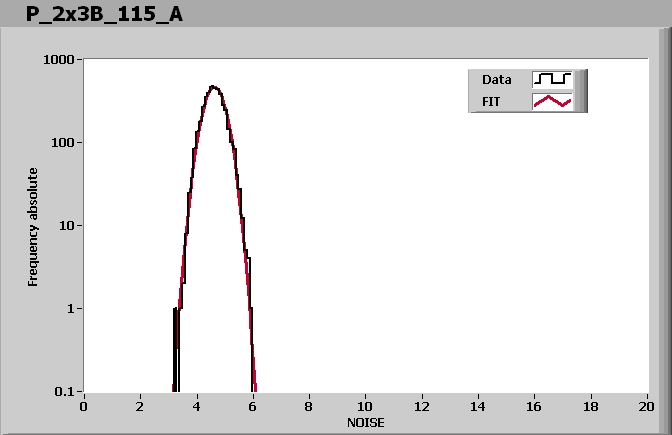

ROC0 NOISE			MEAN = 4.621900 SIGMA = 0.356195

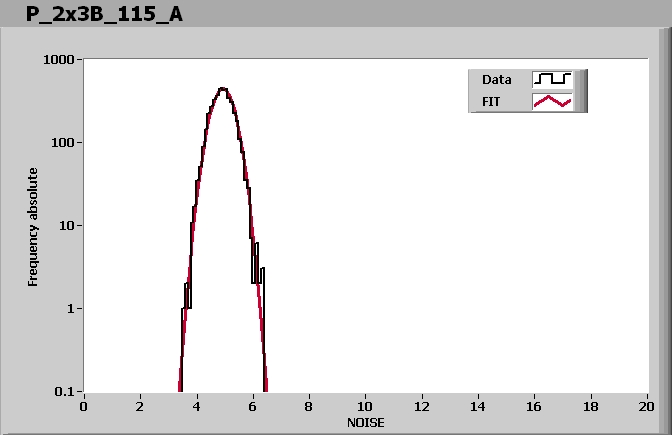

ROC1 NOISE			MEAN = 4.921287 SIGMA = 0.377231

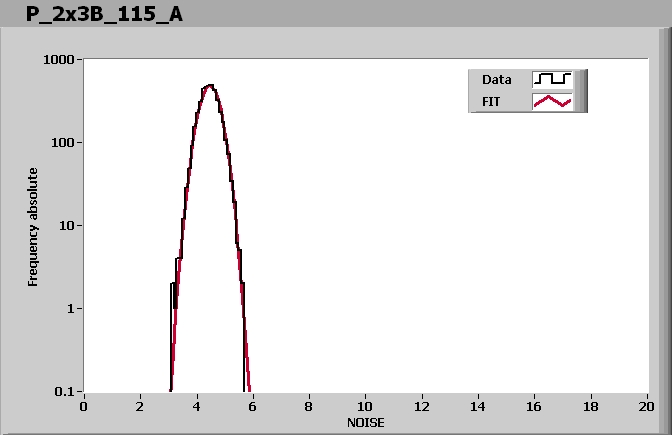

ROC2 NOISE			MEAN = 4.454435 SIGMA = 0.338179
ROC3 NOISE			MEAN = 5.433468 SIGMA = 0.432878
ROC4 NOISE			MEAN = 4.501494 SIGMA = 0.365387

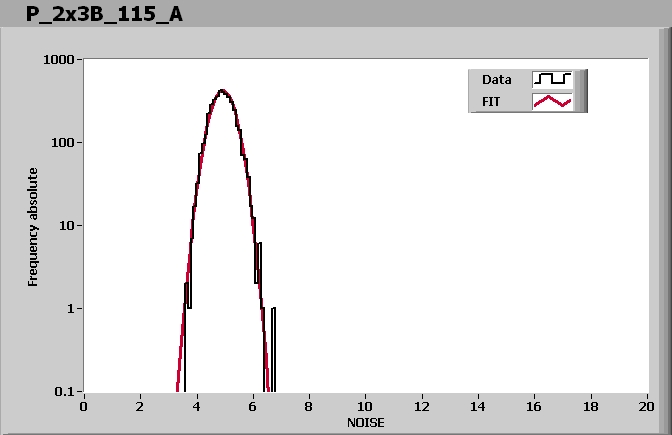

ROC5 NOISE			MEAN = 4.922790 SIGMA = 0.394864

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:21 PM

Ibias_DAC, Ibias_DAC Data	132	140	146	134	146	128
Vana, VanaData	128	127	140	115	140	127
CalDelData and plots	96	95	84	80	80	84
VthrCompData and plots	66	71	84	73	83	80
TestDdata ,TestD Plots	1	0	1	1	0	0
LightData ,Light Plots	0	0	1	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
