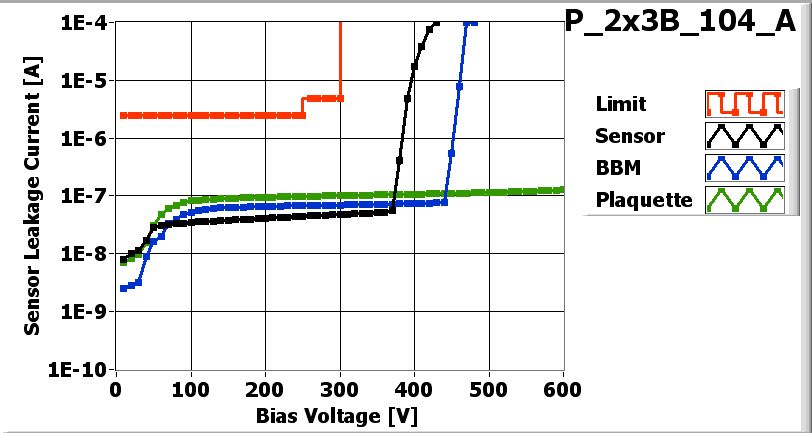

![[IMAGE] of](P_2x3B_104_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_104_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/12/2007
| Part | ID |
|---|---|
| BBM | BBM_104-2x3B |
| VHDI | 2x3_451 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 58A |
| ROC1 | W33_XC4K5LT | 57D |
| ROC2 | W33_XC4K5LT | 57C |
| ROC3 | W33_XC4K5LT | 34C |
| ROC4 | W33_XC4K5LT | 34D |
| ROC5 | W33_XC4K5LT | 35B |
P_2x3B_104_Aon 2/15/2007 3:20 PM
P_2x3B_104_Aon 2/15/2007 3:20 PM
Inspected by Arndt Kirk on date 2/15/2007
| LR_dev | 0.057 |
| LL_dev | 0.076 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. no wirebonding problem. |
PLAQUETTE made READY for testing on 2/15/2007 by Arndt Kirk
PLAQUETTE TESTED on 2007-02-15 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 132 | 138 | 138 | 140 | 144 | |
| Vana | 131 | 130 | 145 | 138 | 124 | 132 | |
| Cal_Del | 74 | 92 | 75 | 74 | 87 | 81 | |
| Vthrs_Comp | 86 | 74 | 83 | 77 | 76 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

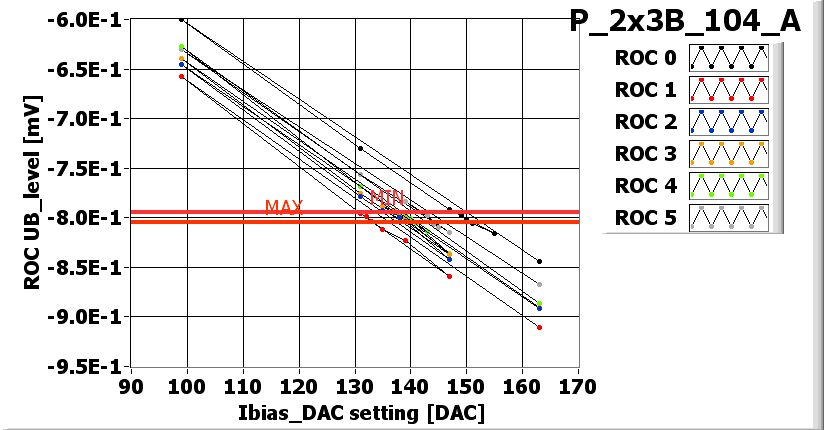

![[IMAGE] of](P_2x3B_104_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

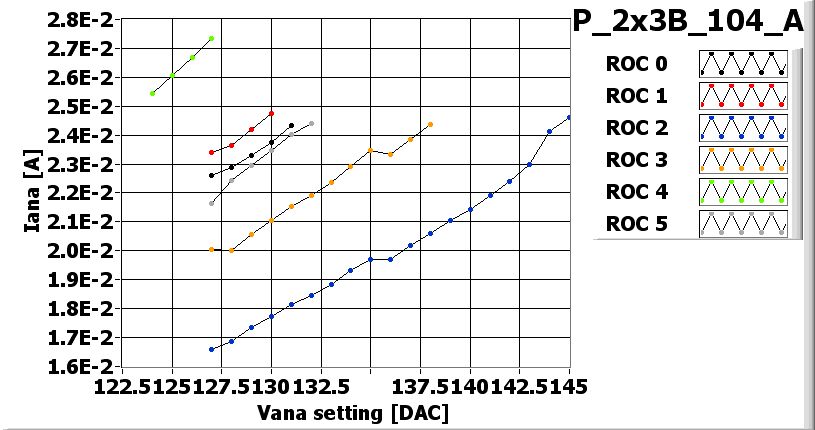

![[IMAGE] of](P_2x3B_104_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_104_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_104_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_104_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_104_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 120 | 90 | 130 | 135 | 135 |
| Vsf | 140 | 140 | 145 | 140 | 140 | 140 |
| VoffsetOp | 105 | 70 | 80 | 70 | 60 | 95 |
| VIbias_PH | 100 | 105 | 105 | 105 | 105 | 100 |

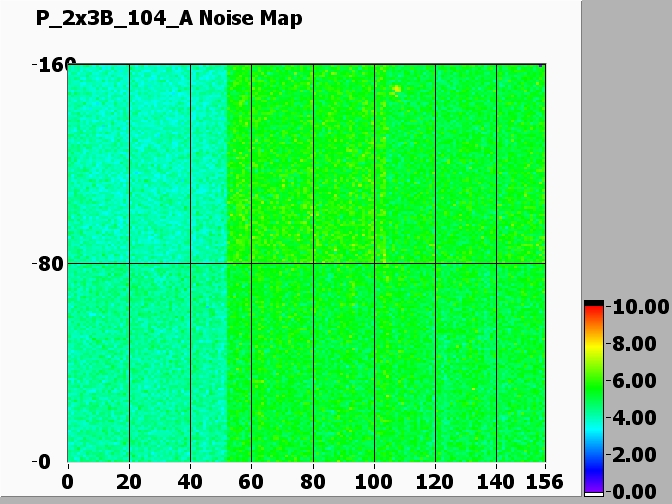

Noise MAP
![[IMAGE] of](P_2x3B_104_A-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_104_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 120 | 90 | 130 | 135 | 135 |
| Vsf | 140 | 140 | 145 | 140 | 140 | 140 |
| VoffsetOp | 105 | 70 | 80 | 70 | 60 | 95 |
| VIbias_PH | 100 | 105 | 105 | 105 | 105 | 100 |

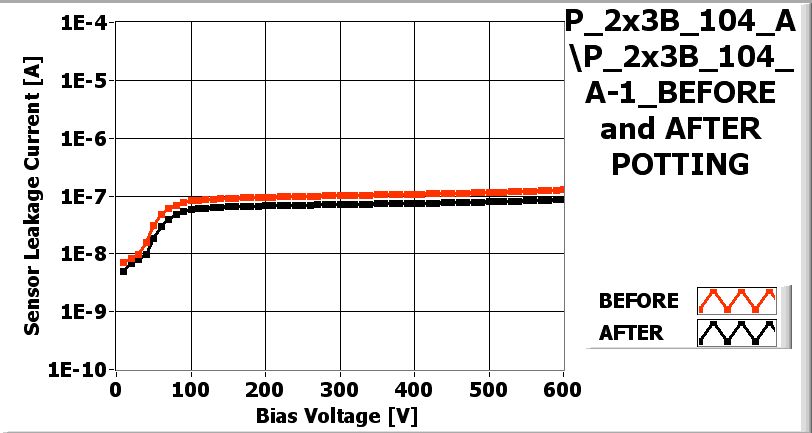

PLAQUETTE READY TO BE POTTED
