P_2x3B_104

P_2x3B_104_A

Production testing

Date:2/15/2007

Operator: Gino Bolla

start testing time:3:20 PM

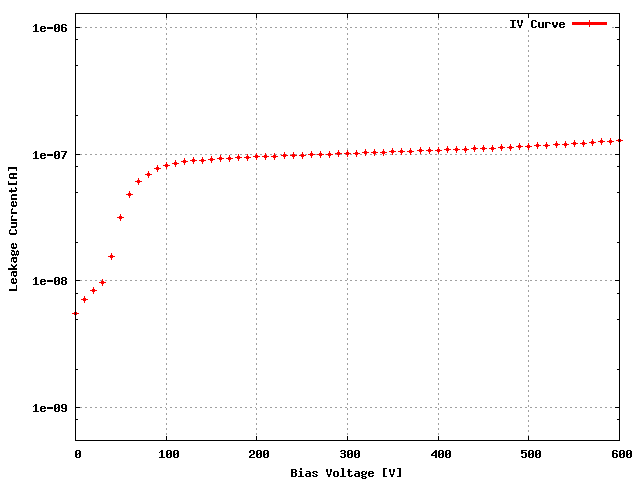

Sensor: S_2x3B_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W33_XC4K5LT 58A

ROC1 W33_XC4K5LT 57D

ROC2 W33_XC4K5LT 57C

ROC3 W33_XC4K5LT 34C

ROC4 W33_XC4K5LT 34D

ROC5 W33_XC4K5LT 35B

ROC	ROC wafer	Label
ROC0	W33_XC4K5LT	58A
ROC1	W33_XC4K5LT	57D
ROC2	W33_XC4K5LT	57C
ROC3	W33_XC4K5LT	34C
ROC4	W33_XC4K5LT	34D
ROC5	W33_XC4K5LT	35B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 150 132 138 138 140 144

Vana, VanaData 131 130 145 138 124 132

CalDelData and plots 74 92 75 74 87 81

VthrCompData and plots 86 74 83 77 76 84

TestDdata ,TestD Plots 0 0 0 1 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	120	90	130	135	135
Vsf	140	140	145	140	140	140
VoffsetOp	105	70	80	70	60	95
VIbias_PH	100	105	105	105	105	100

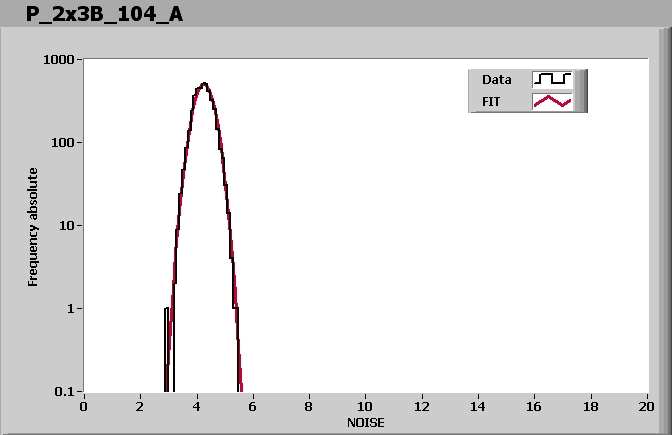

ROC0 NOISE			MEAN = 4.244815 SIGMA = 0.324122
ROC1 NOISE			MEAN = 5.272495 SIGMA = 0.406516

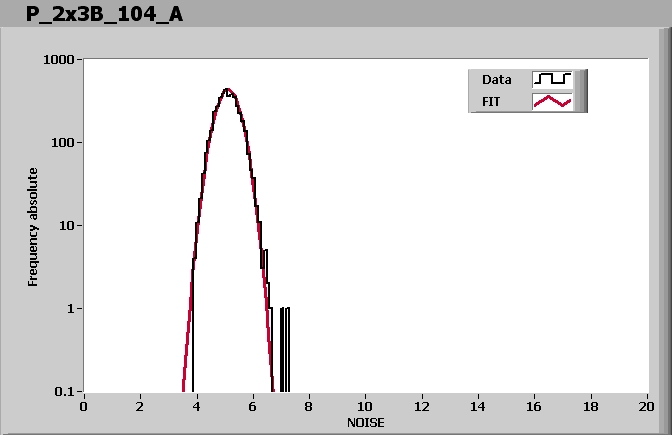

ROC2 NOISE			MEAN = 5.104369 SIGMA = 0.391477

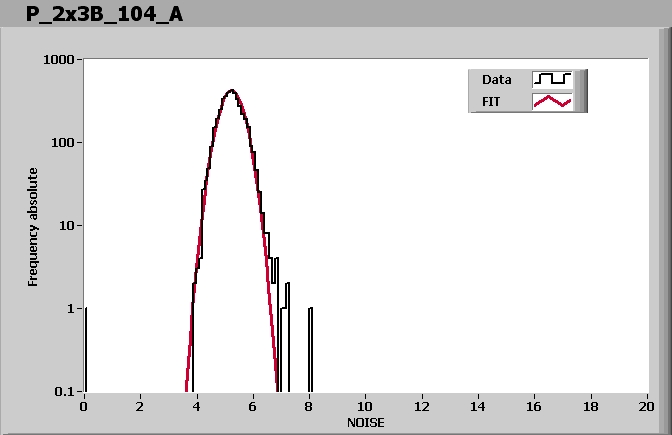

ROC3 NOISE			MEAN = 5.230727 SIGMA = 0.398435

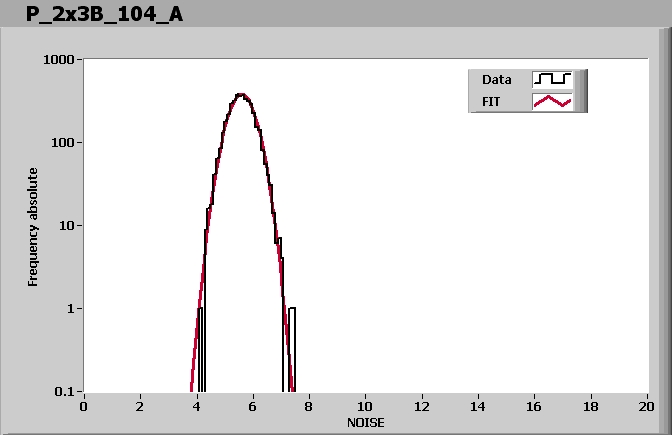

ROC4 NOISE			MEAN = 5.589517 SIGMA = 0.441590

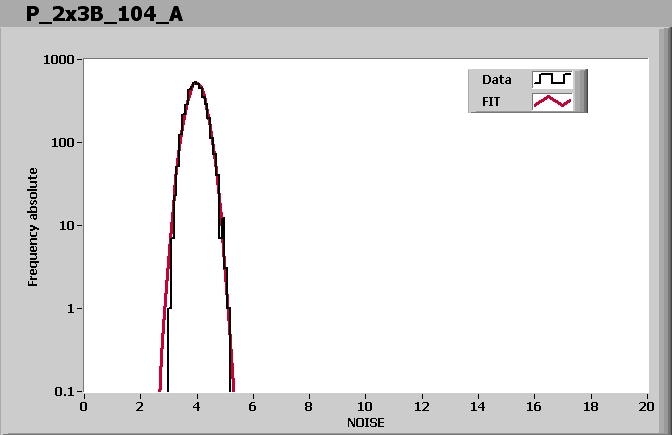

ROC5 NOISE			MEAN = 3.982743 SIGMA = 0.316780

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:39 PM

Ibias_DAC, Ibias_DAC Data	150	132	138	138	140	144
Vana, VanaData	131	130	145	138	124	132
CalDelData and plots	74	92	75	74	87	81
VthrCompData and plots	86	74	83	77	76	84
TestDdata ,TestD Plots	0	0	0	1	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
