P_2x3B_099_A

Parts committed by Bolla Gino on date 1/30/2007

PartID
BBMBBM_099-2x3B
VHDI2x3_432

ROCROC waferLabel
ROC0W28_X54K5TT21C
ROC1W28_X54K5TT21B
ROC2W28_X54K5TT21A
ROC3W28_X54K5TT03A
ROC4W28_X54K5TT03B
ROC5W29_X64K5ST76C

Inspected by Lockwood Gale on date 2/5/2007
LR_dev0.076
LL_dev0.081
FINAL COMMENT by Lockwood GaleNo assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 2/5/2007 by Lockwood Gale

P_2x3B_099_Aon 2/5/2007 3:46 PM

P_2x3B_099_Aon 2/5/2007 3:46 PM

PLAQUETTE TESTED on 2007-02-05 by Cameron McKinney

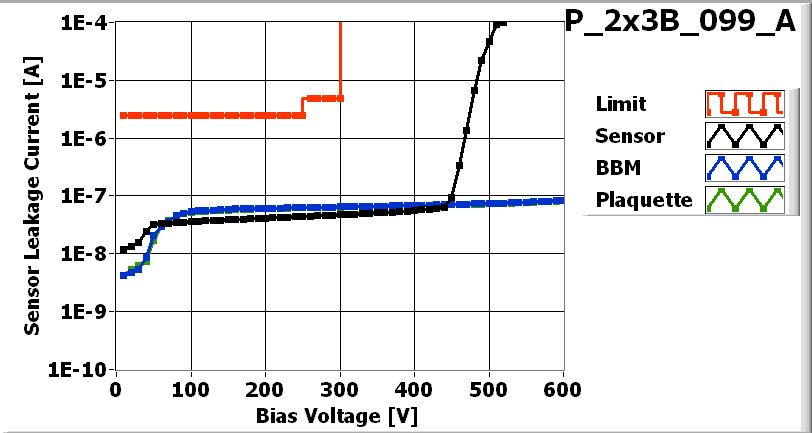

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V

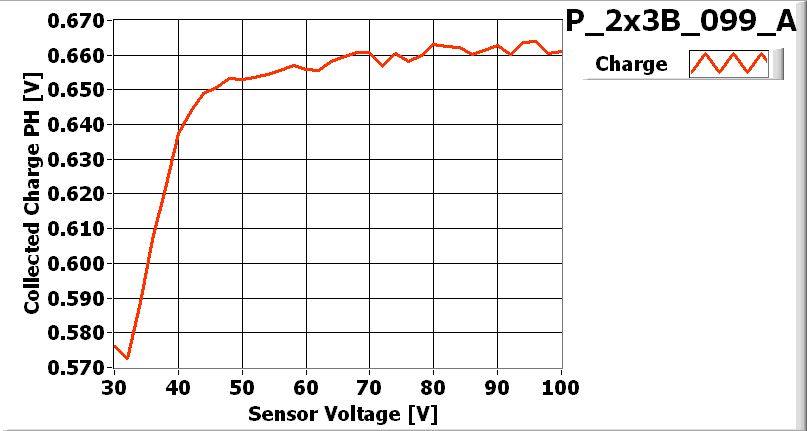

[IMAGE] of
LASER_XML-File
Depletion Voltage 46 V
Operational Voltage 86 V

ROCROC0ROC1ROC2ROC3ROC4ROC5
Ibias_DAC124134132130140136
Vana120138127120134129
Cal_Del857484887572
Vthrs_Comp627486717378
Unbumped000000
Dead000000
Noisy000000
Undecoded000000
Total BAD000000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

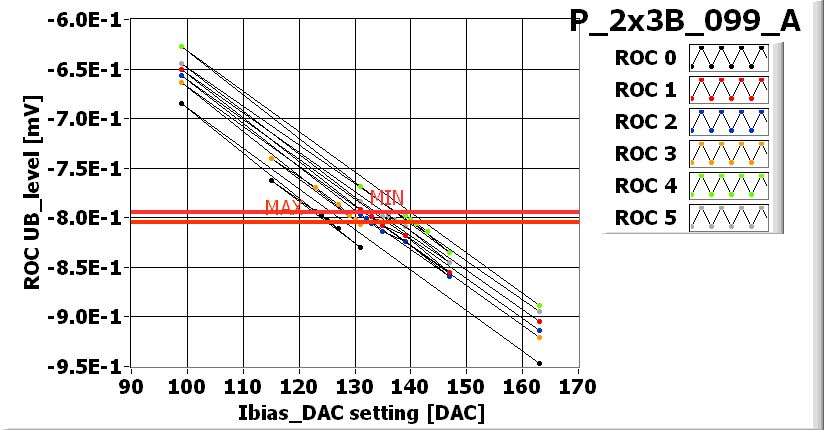

[IMAGE] of I_BIAS_DAC_XML-File

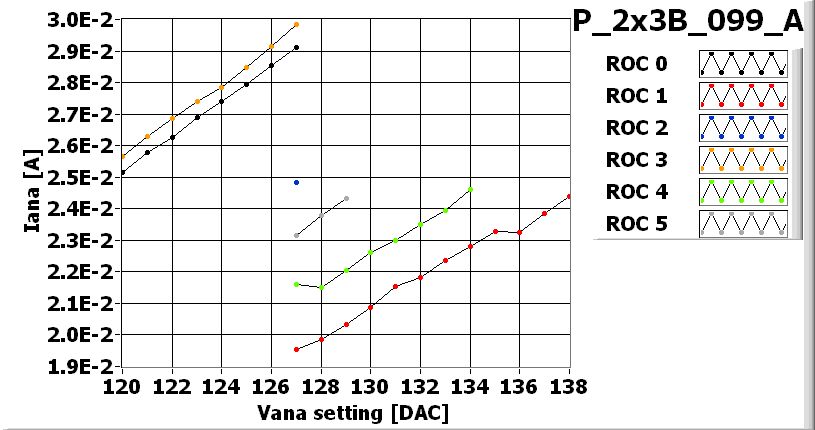

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.557153

SIGMA = 0.331404
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.686326

SIGMA = 0.369053
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 5.198753

SIGMA = 0.425016
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.757189

SIGMA = 0.384731
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.112566

SIGMA = 0.405113
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.595769

SIGMA = 0.372015
PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/7/2007 by Arndt Kirk

P_2x3B_099_A-1on 2/9/2007 10:34 AM

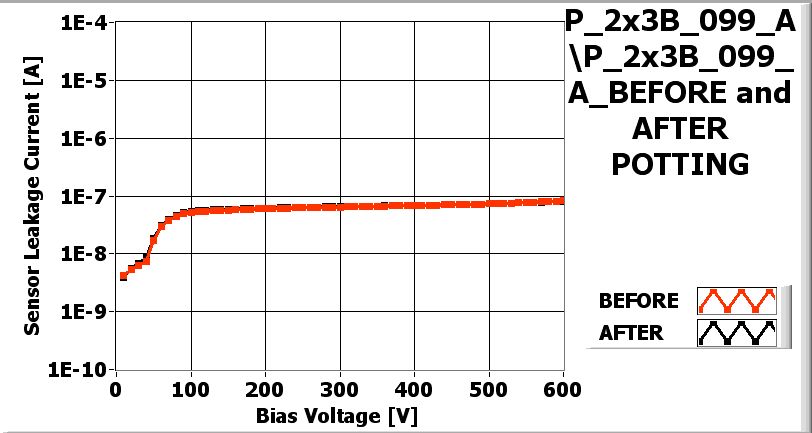

P_2x3B_099_A-1on 2/9/2007 10:34 AM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/00/00/0
ROC10/00/00/00/00/0
ROC20/00/00/00/00/0
ROC30/00/00/00/00/0
ROC40/00/00/00/00/0
ROC50/00/00/01/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-12

Plaquette assigned to panel P4L_019
