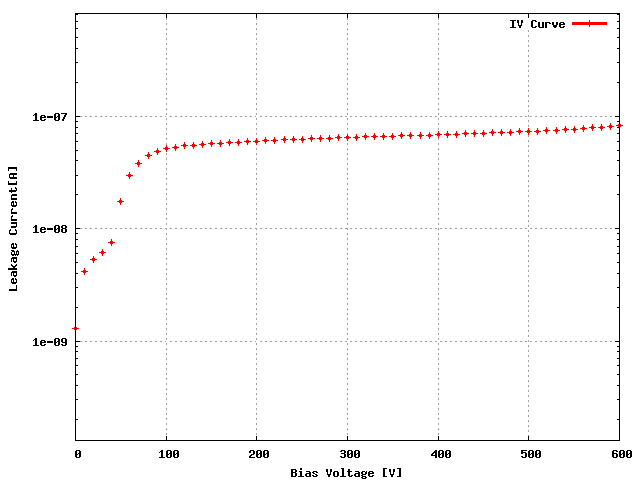

Sensor: S_2x3B_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 21C |
| ROC1 | W28_X54K5TT | 21B |
| ROC2 | W28_X54K5TT | 21A |
| ROC3 | W28_X54K5TT | 03A |
| ROC4 | W28_X54K5TT | 03B |
| ROC5 | W29_X64K5ST | 76C |
| Ibias_DAC, Ibias_DAC Data | 124 | 134 | 132 | 130 | 140 | 136 |
| Vana, VanaData | 120 | 138 | 127 | 120 | 134 | 129 |
| CalDelData and plots | 85 | 74 | 84 | 88 | 75 | 72 |
| VthrCompData and plots | 62 | 74 | 86 | 71 | 73 | 78 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 1 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): OK.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:04 PM
