P_2x3B_099_A-1

Production testing

Date:2/9/2007

Operator: Cameron McKinney

start testing time:10:34 AM

Sensor: S_2x3B_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W28_X54K5TT21C
ROC1W28_X54K5TT21B
ROC2W28_X54K5TT21A
ROC3W28_X54K5TT03A
ROC4W28_X54K5TT03B
ROC5W29_X64K5ST76C

FIXED (not measured) Depletion Voltage is -50 and FIXED (not measured) suggested operational voltage is -150
Ibias_DAC, Ibias_DAC Data 124 134 132 130 140 136
Vana, VanaData 120 138 127 120 134 129
TestDdata ,TestD Plots000000
LightData ,Light Plots000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

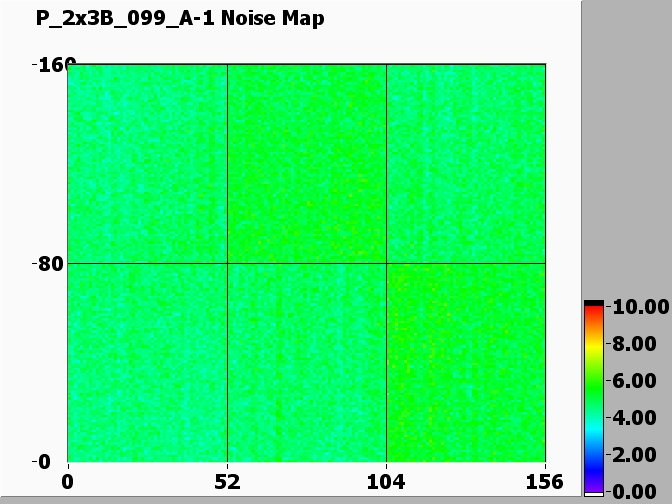

Noise MAP

[IMAGE] of

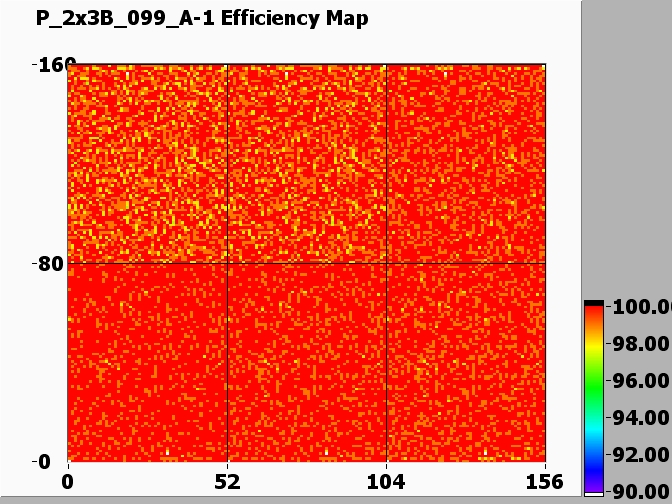

Efficiency MAP

[IMAGE] of

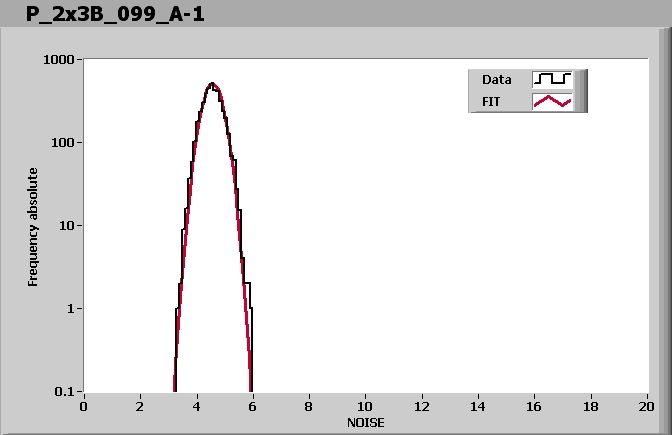

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.557153

SIGMA = 0.331404

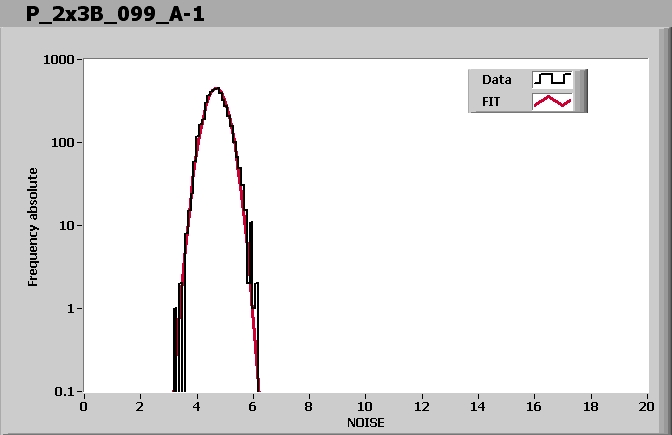

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.686326

SIGMA = 0.369053

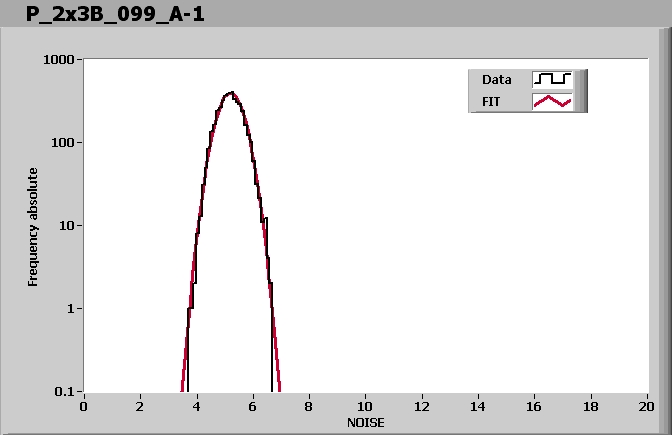

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 5.198753

SIGMA = 0.425016

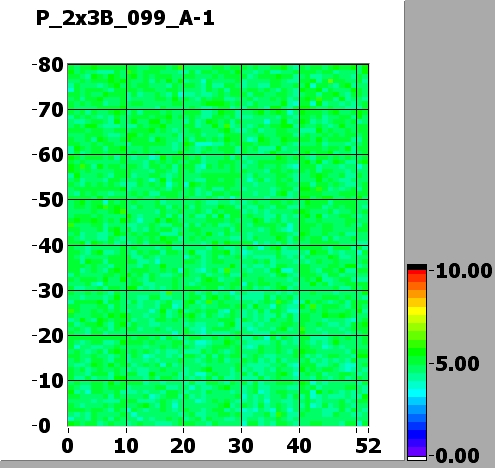

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.757189

SIGMA = 0.384731
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.112566

SIGMA = 0.405113
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.595769

SIGMA = 0.372015

Comment (if any): OK.

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3B_099_A.html,

End testing time: 10:46 AM
