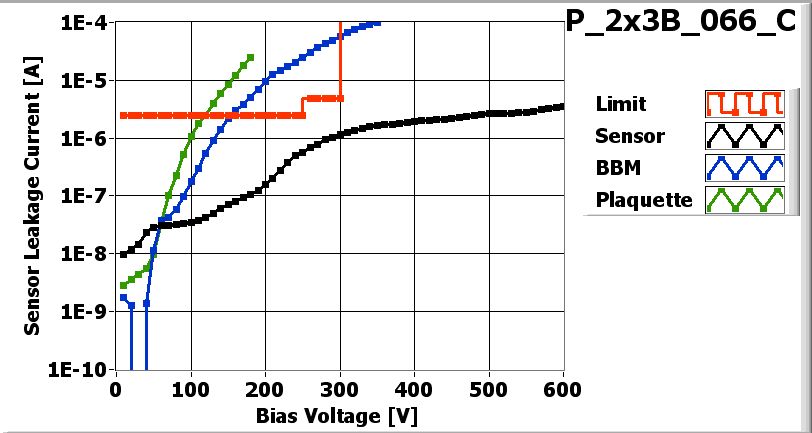

![[IMAGE] of](P_2x3B_066_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 180 V |
![[IMAGE] of](P_2x3B_066_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 4/16/2007
| Part | ID |
|---|---|
| BBM | BBM_066-2x3B |
| VHDI | 2x3_491 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 04D |
| ROC1 | X94KFJT | 23D |
| ROC2 | X94KFJT | 04B |
| ROC3 | X94KFJT | 34D |
| ROC4 | X94KFJT | 34B |
| ROC5 | X94KFJT | 24C |
Inspected by Lockwood Gale on date 4/19/2007
| LR_dev | 0.086 |
| LL_dev | 0.072 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 0, CH 35, ROC 1 ch 1 |
PLAQUETTE made READY for ENCAPSULATION on 4/19/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi
P_2x3B_066_Con 4/23/2007 2:35 PM
P_2x3B_066_Con 4/23/2007 2:35 PM
P_2x3B_066_C-1on 4/23/2007 3:06 PM
P_2x3B_066_C-1on 4/23/2007 3:06 PM
PLAQUETTE TESTED on 2007-04-23 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 122 | 124 | 144 | 144 | 148 | |
| Vana | 157 | 122 | 121 | 121 | 131 | 144 | |
| Cal_Del | 79 | 100 | 78 | 84 | 82 | 83 | |
| Vthrs_Comp | 86 | 57 | 78 | 78 | 74 | 78 | |
| Unbumped | 2 | 0 | 0 | 0 | 31 | 167 | |
| Dead | 0 | 0 | 1 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 3 | 0 | 3 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 4 | 0 | 35 | 167 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

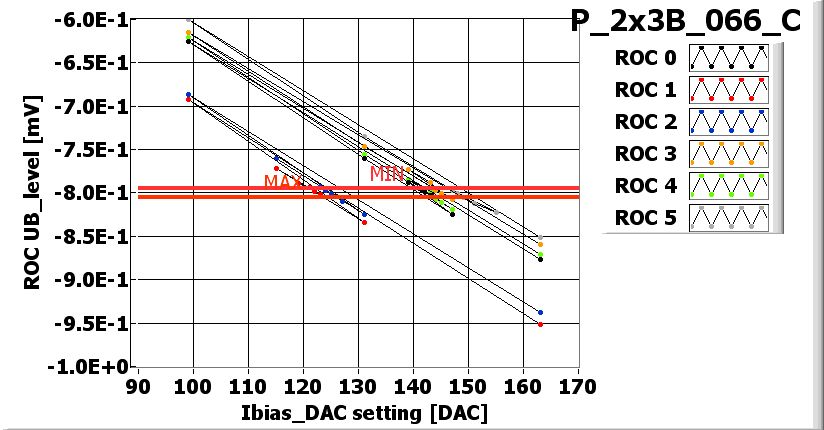

![[IMAGE] of](P_2x3B_066_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

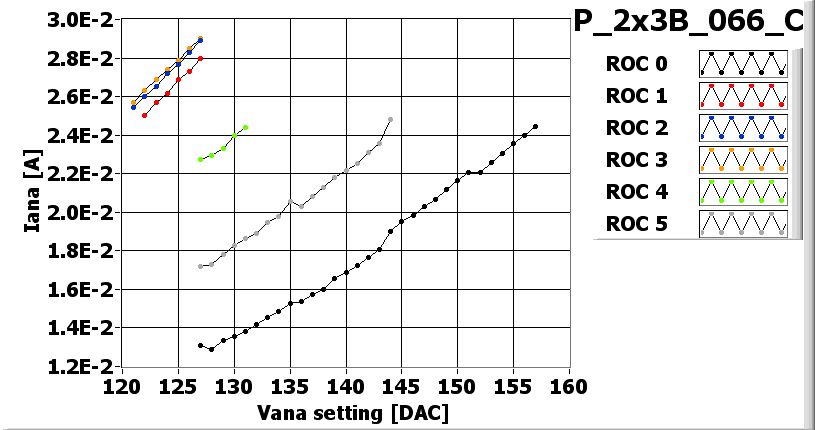

![[IMAGE] of](P_2x3B_066_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_066_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_066_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_066_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

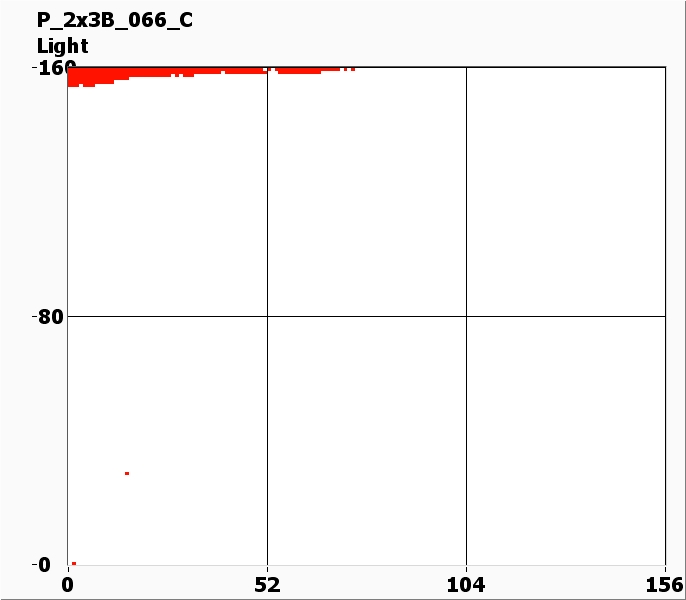

![[IMAGE] of](P_2x3B_066_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 155 | 135 | 160 | 110 | 90 |
| Vsf | 150 | 135 | 130 | 135 | 145 | 140 |
| VoffsetOp | 100 | 45 | 75 | 75 | 75 | 95 |
| VIbias_PH | 100 | 110 | 100 | 100 | 100 | 95 |
Noise MAP
![[IMAGE] of](P_2x3B_066_C-1-160-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_066_C-1-160-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
