P_2x3B_066

P_2x3B_066_C

Production testing

Date:4/23/2007

Operator: mia tosi

start testing time:2:35 PM

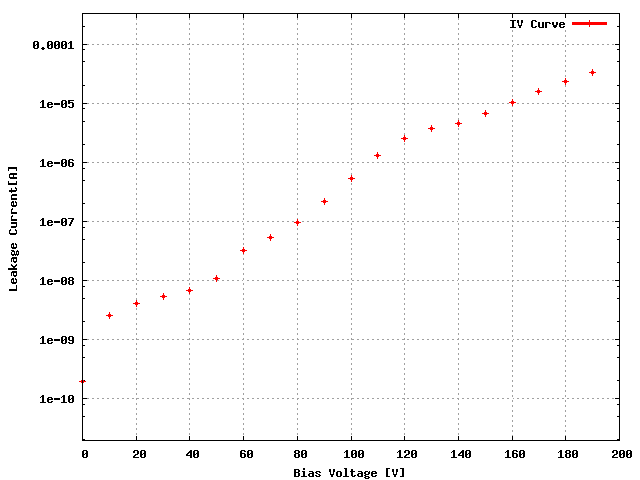

Sensor: S_2x3B_06, Data for leakage current measurement , and plot on overall it is a

ROC ROC wafer Label

ROC0 X94KFJT 04D

ROC1 X94KFJT 23D

ROC2 X94KFJT 04B

ROC3 X94KFJT 34D

ROC4 X94KFJT 34B

ROC5 X94KFJT 24C

ROC	ROC wafer	Label
ROC0	X94KFJT	04D
ROC1	X94KFJT	23D
ROC2	X94KFJT	04B
ROC3	X94KFJT	34D
ROC4	X94KFJT	34B
ROC5	X94KFJT	24C

Depletion Voltage is -108 and suggested operational voltage is -148

Ibias_DAC, Ibias_DAC Data 142 122 124 144 144 148

Vana, VanaData 157 123 121 121 132 144

CalDelData and plots 79 100 78 84 82 83

VthrCompData and plots 86 58 78 78 75 78

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 2 0 0 0 31 167

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD BAD

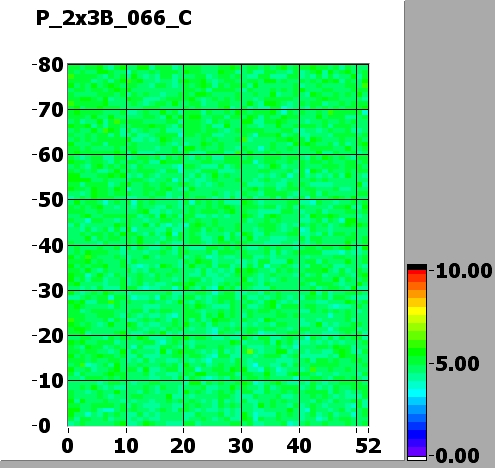

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	150	155	145	105	100
Vsf	150	135	140	140	140	145
VoffsetOp	100	50	70	75	75	90
VIbias_PH	95	90	105	105	105	100

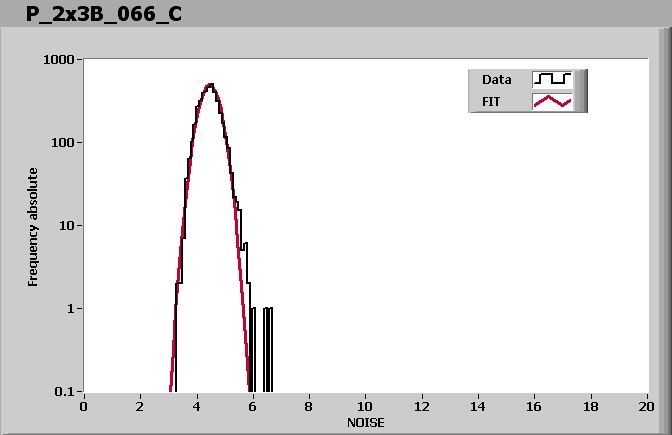

ROC0 NOISE			MEAN = 4.451116 SIGMA = 0.339128

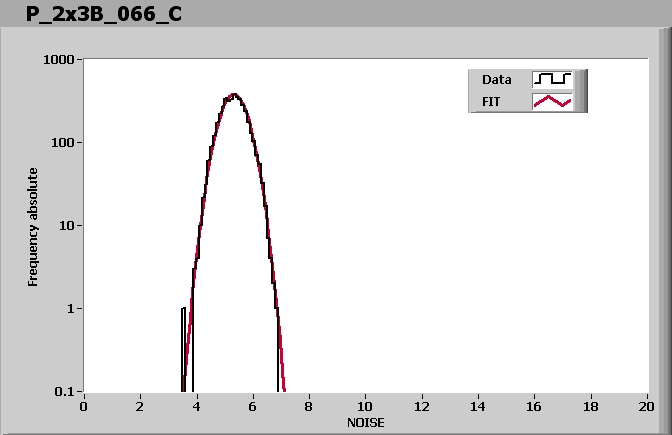

ROC1 NOISE			MEAN = 5.313720 SIGMA = 0.442437

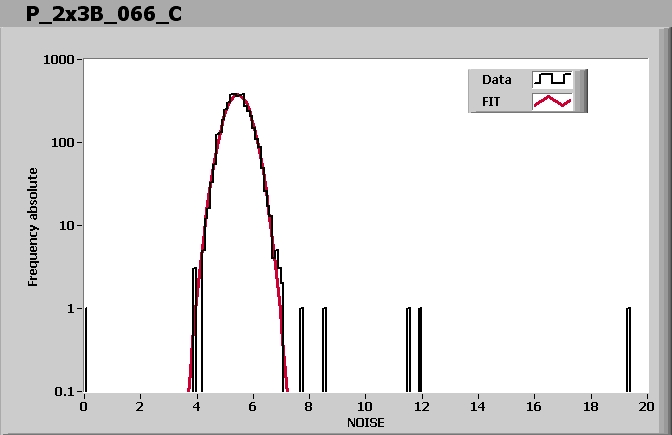

ROC2 NOISE			MEAN = 5.450319 SIGMA = 0.433002

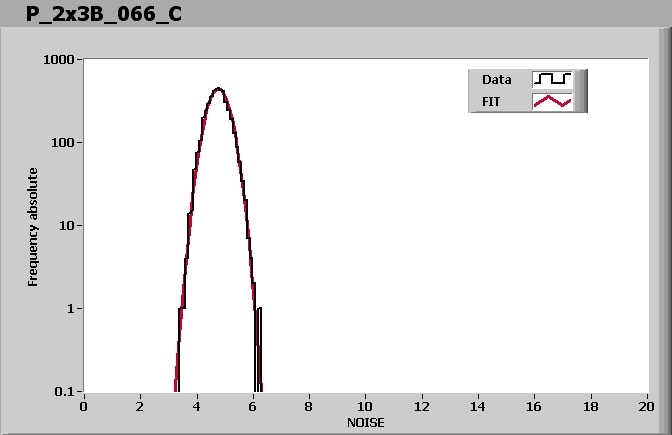

ROC3 NOISE			MEAN = 4.761417 SIGMA = 0.372268

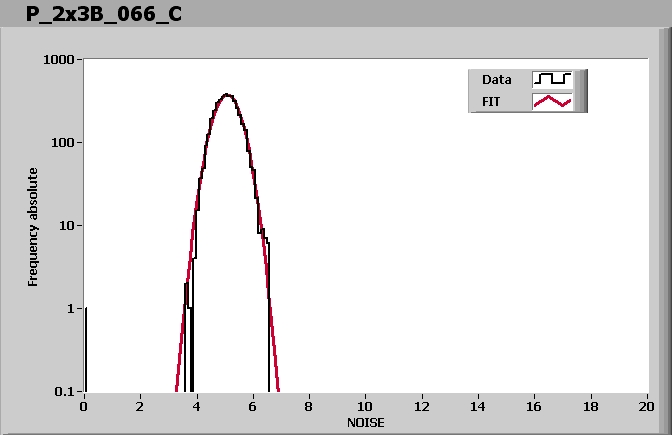

ROC4 NOISE			MEAN = 5.079689 SIGMA = 0.443199
ROC5 NOISE			MEAN = 4.691262 SIGMA = 0.379889

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:56 PM

Ibias_DAC, Ibias_DAC Data	142	122	124	144	144	148
Vana, VanaData	157	123	121	121	132	144
CalDelData and plots	79	100	78	84	82	83
VthrCompData and plots	86	58	78	78	75	78
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	2	0	0	0	31	167
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	BAD
