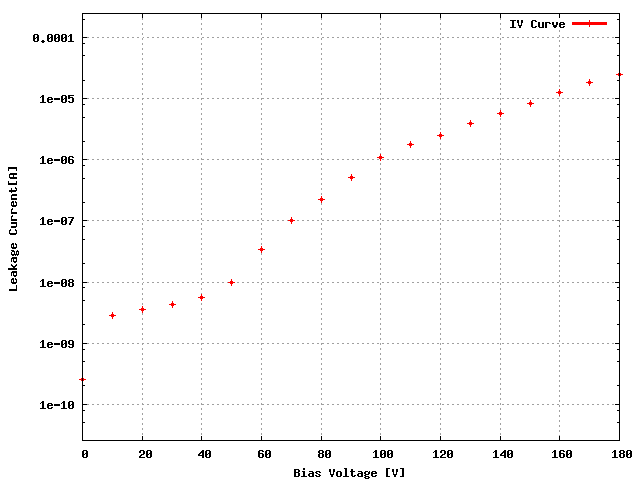

Sensor: S_2x3B_06, Data for leakage current measurement , and plot on overall it is a
ROC | ROC wafer | Label |
---|---|---|
ROC0 | X94KFJT | 04D |
ROC1 | X94KFJT | 23D |
ROC2 | X94KFJT | 04B |
ROC3 | X94KFJT | 34D |
ROC4 | X94KFJT | 34B |
ROC5 | X94KFJT | 24C |
Ibias_DAC, Ibias_DAC Data | 142 | 122 | 124 | 144 | 144 | 148 |
Vana, VanaData | 157 | 122 | 121 | 121 | 131 | 144 |
CalDelData and plots | 79 | 100 | 78 | 84 | 82 | 83 |
VthrCompData and plots | 86 | 57 | 78 | 78 | 74 | 78 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 1 | 0 | 11 | 0 | 13 | 104 |
LightData ,Light Plots | 2 | 0 | 0 | 0 | 31 | 167 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |

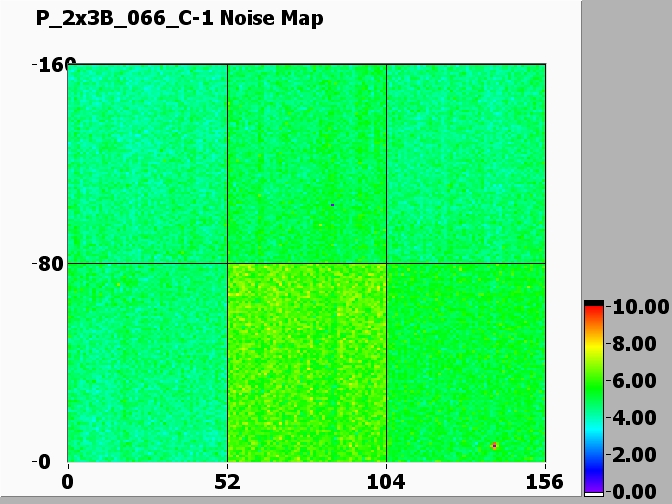

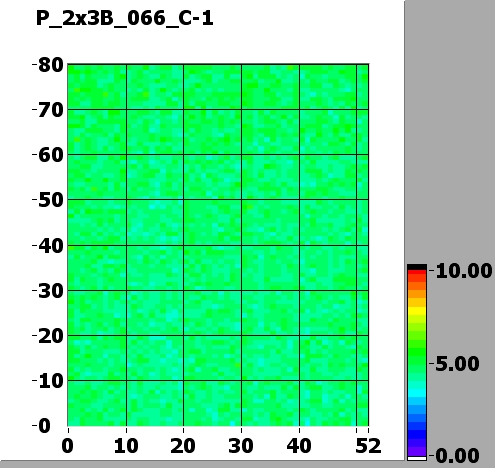

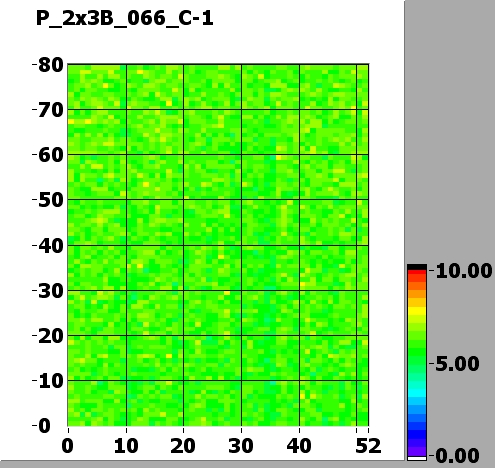

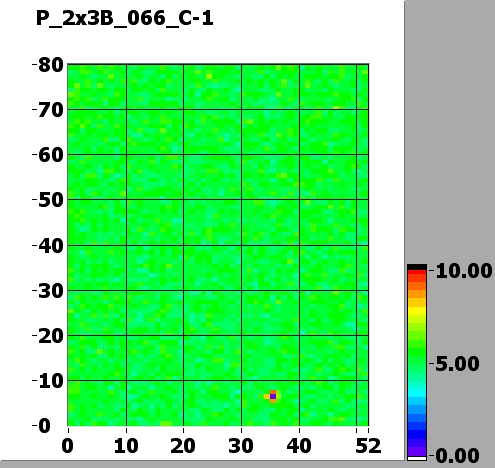

Noise MAP
Efficiency MAP

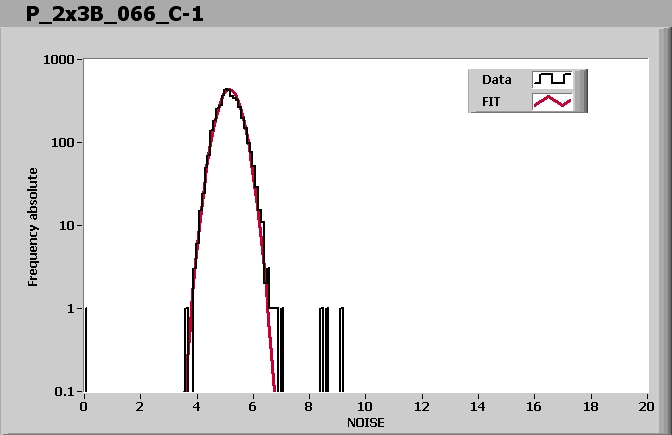

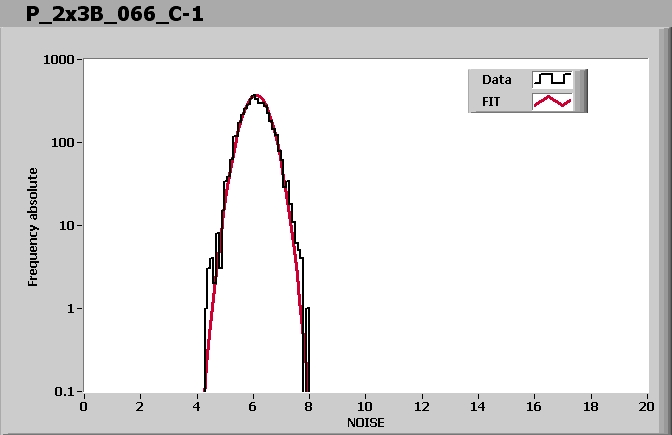

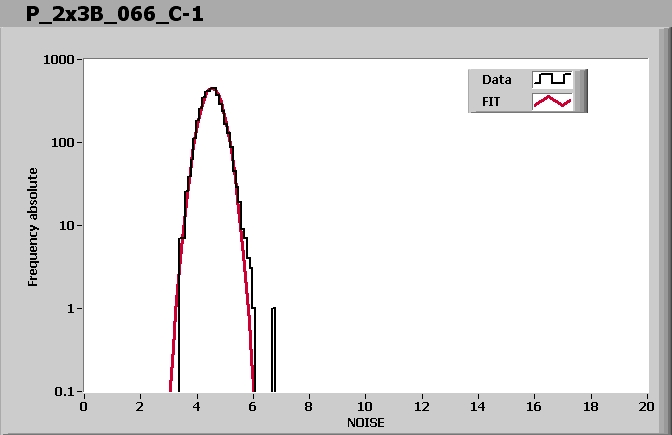

EXTRA DACs for NOISE
VHldDe | 95 | 155 | 135 | 160 | 110 | 90 |
Vsf | 150 | 135 | 130 | 135 | 145 | 140 |
VoffsetOp | 100 | 45 | 75 | 75 | 75 | 95 |
VIbias_PH | 100 | 110 | 100 | 100 | 100 | 95 |
Comment (if any):
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 3:25 PM
