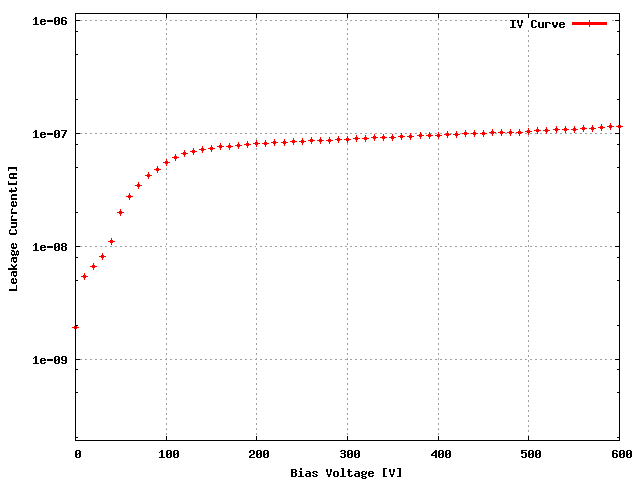

Sensor: S_2x3B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	40B
ROC1	W52_DOLQC8T	40A
ROC2	W52_DOLQC8T	58C
ROC3	W52_DOLQC8T	35B
ROC4	W52_DOLQC8T	35C
ROC5	W52_DOLQC8T	36C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	154	148	154	142	146	154
Vana, VanaData	145	146	138	133	158	144
CalDelData and plots	85	86	93	90	82	79
VthrCompData and plots	82	91	85	90	90	89
TestDdata ,TestD Plots	0	5	4	0	5	8
LightData ,Light Plots	0	0	0	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.298028 SIGMA = 0.312009

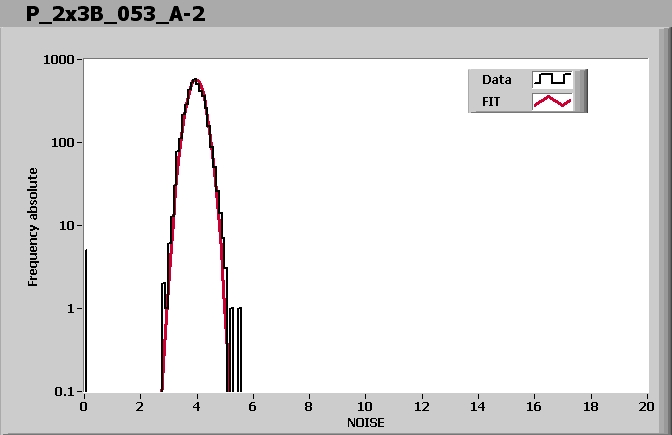

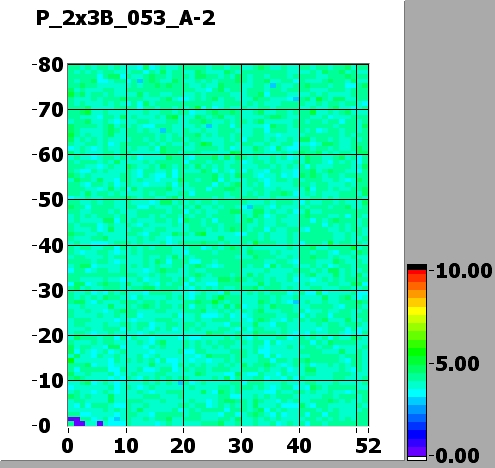

ROC1 NOISE			MEAN = 3.962649 SIGMA = 0.288151

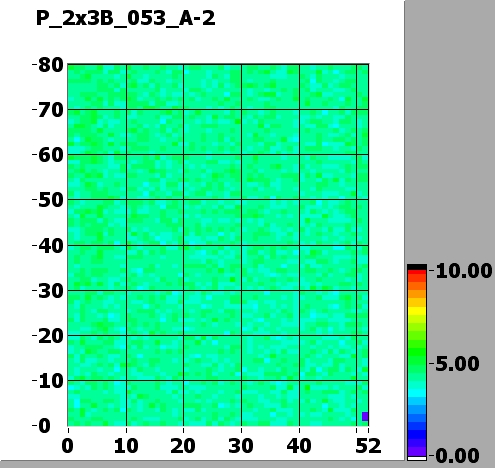

ROC2 NOISE			MEAN = 4.206047 SIGMA = 0.319739
ROC3 NOISE			MEAN = 3.712445 SIGMA = 0.285979

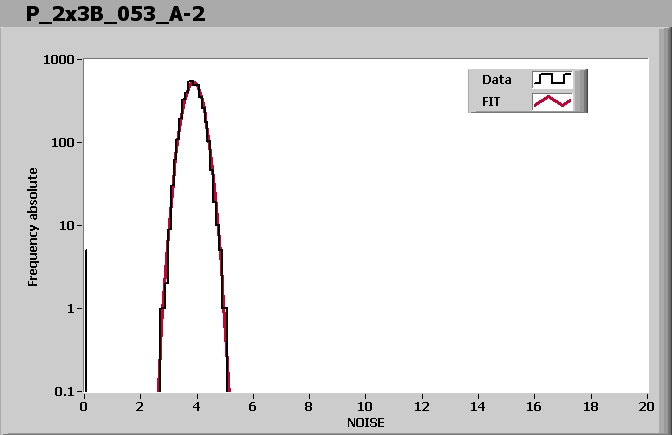

ROC4 NOISE			MEAN = 3.873821 SIGMA = 0.305384

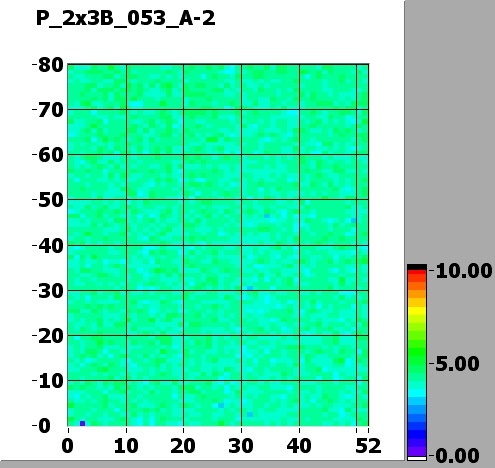

ROC5 NOISE			MEAN = 4.066158 SIGMA = 0.303527

Comment (if any):

P_2x3B_053_A-1.html,

P_2x3B_053_A.html,

End testing time: 9:29 AM
