P_2x3B_053

P_2x3B_053_A

Production testing

Date:11/15/2007

Operator: Ozhan Koybasi

start testing time:6:16 PM

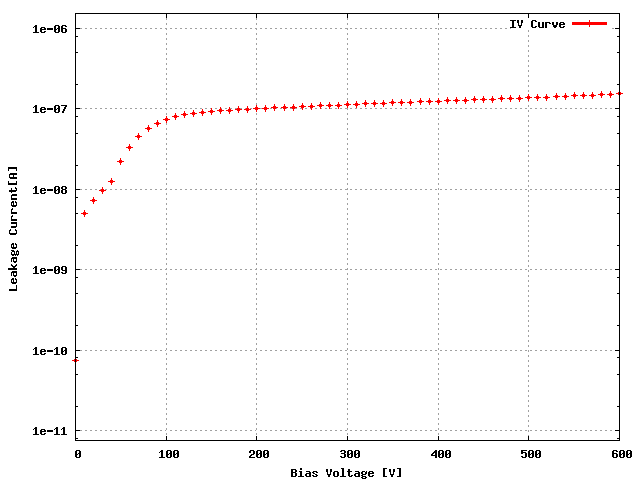

Sensor: S_2x3B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_DOLQC8T 40B

ROC1 W52_DOLQC8T 40A

ROC2 W52_DOLQC8T 58C

ROC3 W52_DOLQC8T 35B

ROC4 W52_DOLQC8T 35C

ROC5 W52_DOLQC8T 36C

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	40B
ROC1	W52_DOLQC8T	40A
ROC2	W52_DOLQC8T	58C
ROC3	W52_DOLQC8T	35B
ROC4	W52_DOLQC8T	35C
ROC5	W52_DOLQC8T	36C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 154 150 156 144 148 156

Vana, VanaData 145 145 137 132 158 144

CalDelData and plots 85 86 92 90 82 79

VthrCompData and plots 82 90 84 89 90 89

TestDdata ,TestD Plots 0 5 2 0 5 1

LightData ,Light Plots 1761 2376 1123 103 1792 1479

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT BAD BAD BAD BAD BAD BAD

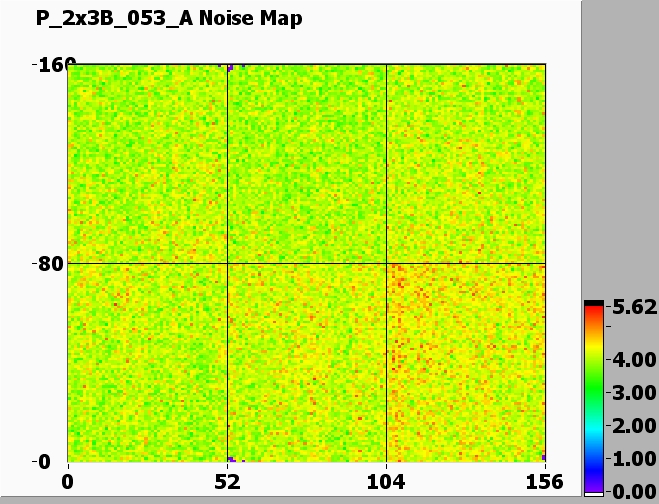

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	100	90	120	100	105
Vsf	145	145	145	140	155	145
VoffsetOp	100	115	105	100	110	115
VIbias_PH	95	100	100	105	95	100

ROC0 NOISE			MEAN = 3.972872 SIGMA = 0.317085

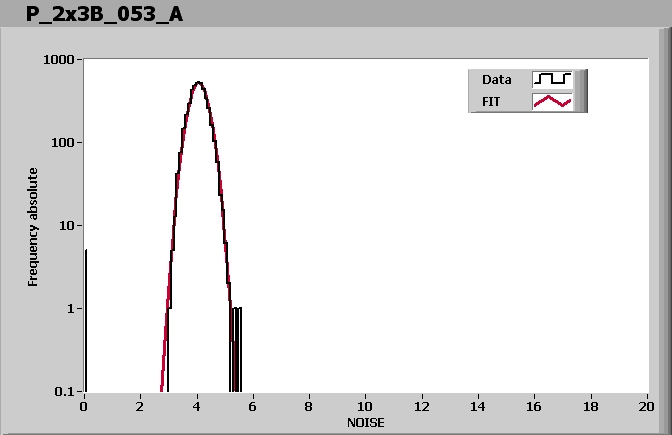

ROC1 NOISE			MEAN = 4.065638 SIGMA = 0.317117
ROC2 NOISE			MEAN = 4.191158 SIGMA = 0.325446
ROC3 NOISE			MEAN = 4.001773 SIGMA = 0.305075
ROC4 NOISE			MEAN = 3.883684 SIGMA = 0.291993
ROC5 NOISE			MEAN = 3.950784 SIGMA = 0.317432

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:44 PM

Ibias_DAC, Ibias_DAC Data	154	150	156	144	148	156
Vana, VanaData	145	145	137	132	158	144
CalDelData and plots	85	86	92	90	82	79
VthrCompData and plots	82	90	84	89	90	89
TestDdata ,TestD Plots	0	5	2	0	5	1
LightData ,Light Plots	1761	2376	1123	103	1792	1479
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	BAD	BAD	BAD	BAD	BAD	BAD
