| IV_XML-File |

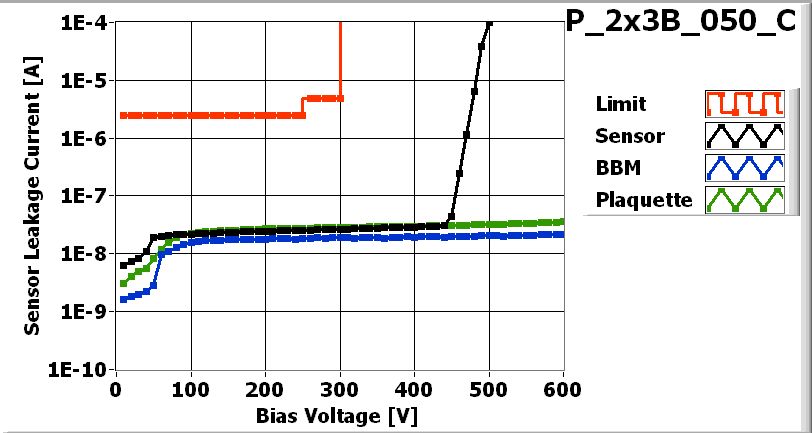

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_050_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_050-2x3B |
| VHDI | 2x3_472 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 57A |
| ROC1 | XG4KFCT | 56A |
| ROC2 | XG4KFCT | 54B |
| ROC3 | XG4KFCT | 55A |
| ROC4 | XG4KFCT | 51A |
| ROC5 | XG4KFCT | 53A |
Inspected by Lockwood Gale on date 2/21/2007
| LR_dev | 0.049 |
| LL_dev | 0.057 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 0 Channel 1 2 attempts, ROC 3 Channel 1 22 attempts, all other wirebonds fine. |
PLAQUETTE made READY for ENCAPSULATION on 2/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/22/2007 by Ozhan Koybasi
P_2x3B_050_Con 2/26/2007 11:15 AM
P_2x3B_050_Con 2/26/2007 11:15 AM
P_2x3B_050_C-1on 2/26/2007 1:27 PM
P_2x3B_050_C-1on 2/26/2007 1:27 PM
PLAQUETTE TESTED on 2007-02-26 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 132 | 144 | 134 | 140 | 134 | 144 | |
| Vana | 124 | 145 | 121 | 120 | 125 | 128 | |
| Cal_Del | 86 | 81 | 86 | 81 | 81 | 69 | |
| Vthrs_Comp | 70 | 93 | 66 | 70 | 84 | 74 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | 0 | |
| Dead | 0 | 160 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 160 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_050_C_Ibias-dac.jpg) |

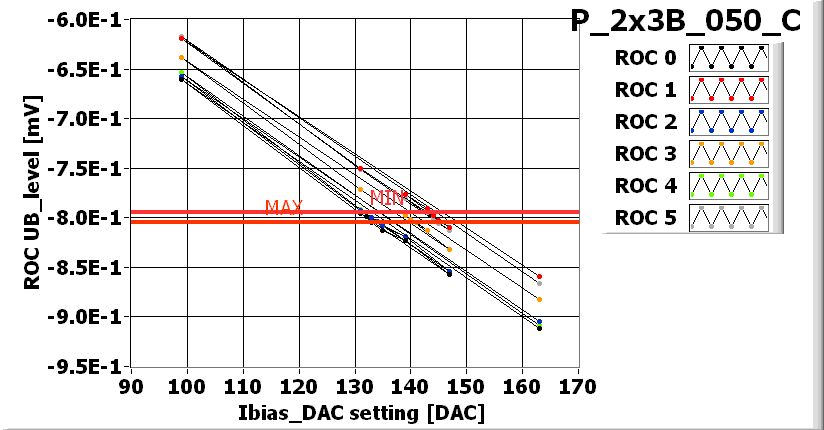

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_050_C_Vana.jpg) |

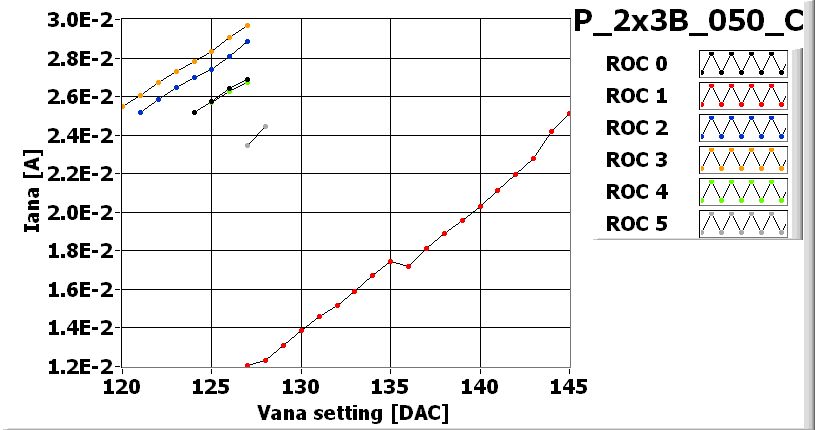

VANA_XML-File |
![[IMAGE] of](P_2x3B_050_CDead-PixelAlivetest.jpg){kind=tracking} |

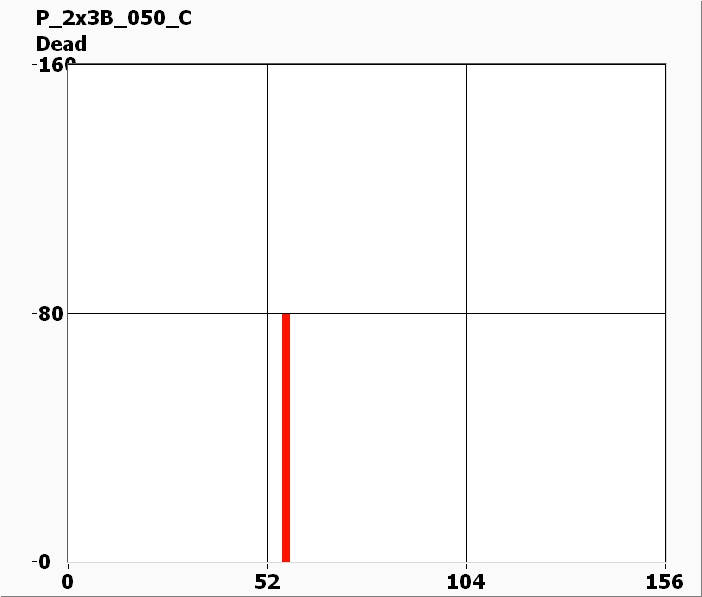

DEAD_XML-File |
![[IMAGE] of](P_2x3B_050_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_050_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_050_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 110 | 180 | 135 | 140 | 120 |
| Vsf | 140 | 135 | 155 | 135 | 135 | 140 |
| VoffsetOp | 75 | 90 | 45 | 85 | 85 | 75 |
| VIbias_PH | 105 | 100 | 100 | 100 | 95 | 105 |

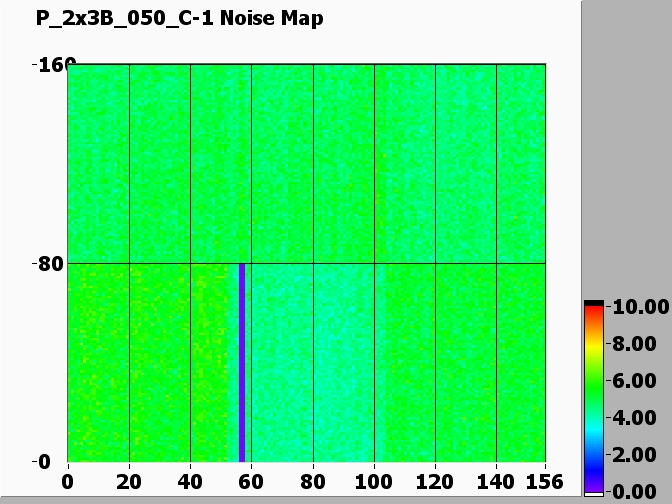

Noise MAP
![[IMAGE] of](P_2x3B_050_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_050_C-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
