Sensor: S_2x3B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	57A
ROC1	XG4KFCT	56A
ROC2	XG4KFCT	54B
ROC3	XG4KFCT	55A
ROC4	XG4KFCT	51A
ROC5	XG4KFCT	53A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	132	144	134	140	134	144
Vana, VanaData	124	145	121	120	125	128
CalDelData and plots	86	81	86	81	81	69
VthrCompData and plots	70	93	66	70	84	74
TestDdata ,TestD Plots	0	160	0	0	0	0
LightData ,Light Plots	0	0	0	1	0	0
Pass/Fail TestD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

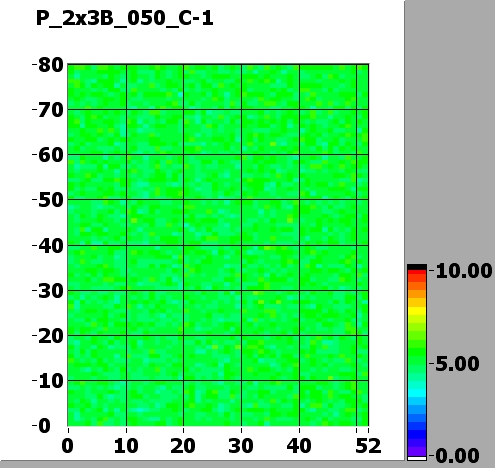

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

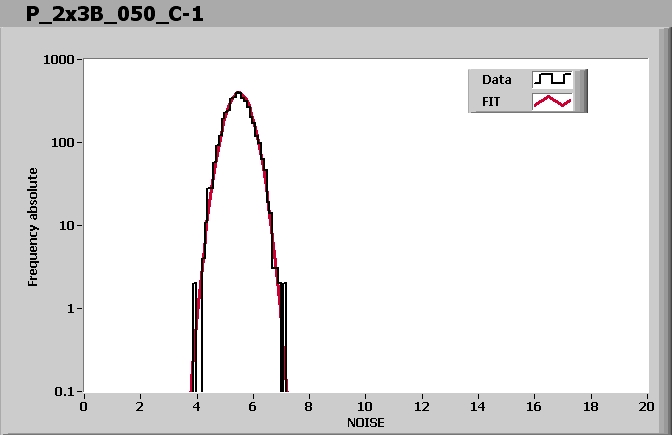

ROC0 NOISE			MEAN = 5.489908 SIGMA = 0.420693

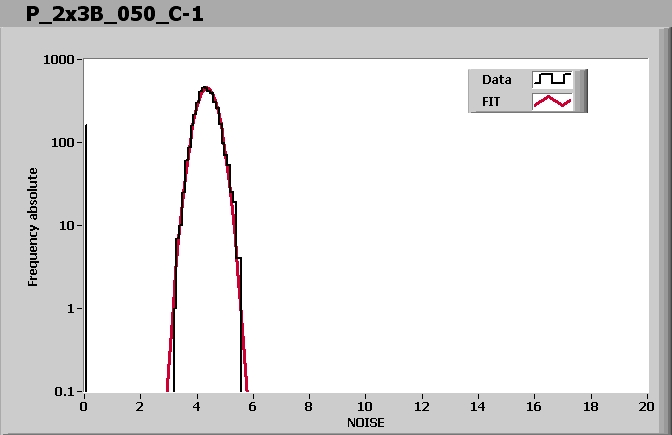

ROC1 NOISE			MEAN = 4.352945 SIGMA = 0.344710

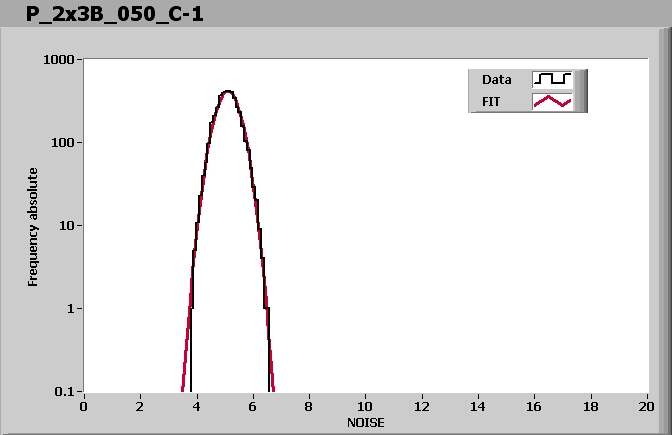

ROC2 NOISE			MEAN = 5.100669 SIGMA = 0.395296

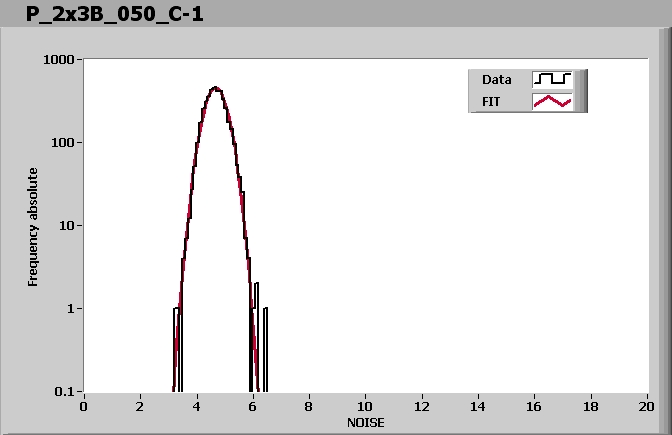

ROC3 NOISE			MEAN = 4.668818 SIGMA = 0.367311
ROC4 NOISE			MEAN = 4.890794 SIGMA = 0.404450
ROC5 NOISE			MEAN = 4.880890 SIGMA = 0.376569

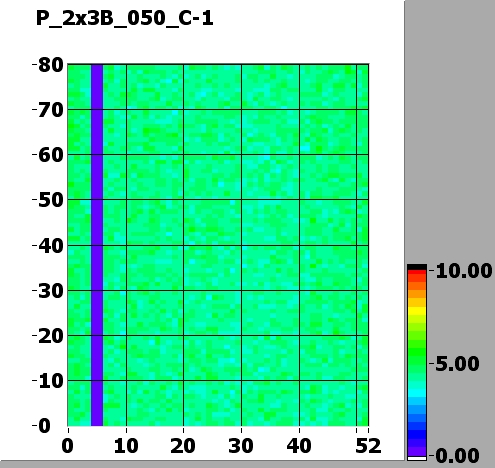

Comment (if any): Double-column still dead. Debugging.

P_2x3B_050_C.html,

End testing time: 1:46 PM
