P_2x3B_014

P_2x3B_014_C

Parts committed by Bolla Gino on date 2/5/2007

Part	ID
BBM	BBM_014-2x3B
VHDI	2x3_427

ROC ROC wafer Label

ROC0 XE4K3KT 28D

ROC1 XE4K3KT 29D

ROC2 XE4K3KT 20B

ROC3 XE4K3KT 22A

ROC4 XE4K3KT 21B

ROC5 XE4K3KT 21A

ROC	ROC wafer	Label
ROC0	XE4K3KT	28D
ROC1	XE4K3KT	29D
ROC2	XE4K3KT	20B
ROC3	XE4K3KT	22A
ROC4	XE4K3KT	21B
ROC5	XE4K3KT	21A

Inspected by Lockwood Gale on date 2/9/2007

LR_dev 0.100

LL_dev 0.102

FINAL COMMENT by Lockwood Gale No assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale

P_2x3B_014_Con 2/9/2007 1:29 PM

PLAQUETTE TESTED on 2007-02-09 by Isaac Childres

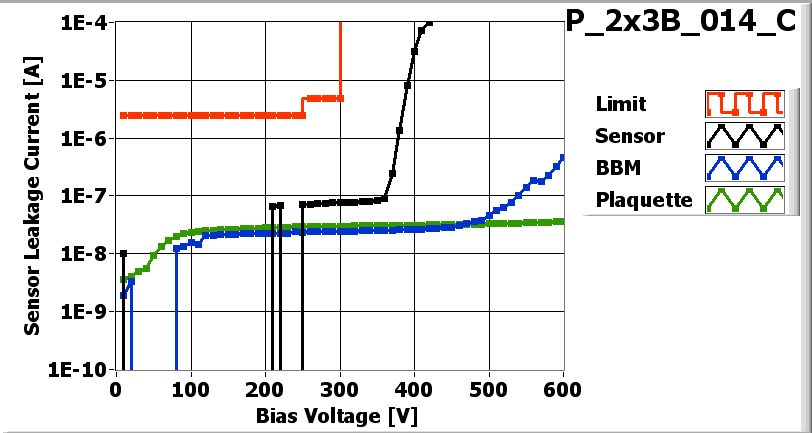

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5
Ibias_DAC	142	138	130	132	132	128
Vana	133	144	107	137	131	128
Cal_Del	78	93	85	80	80	94
Vthrs_Comp	78	74	75	73	78	70
Unbumped	0	0	2	0	0	0
Dead	0	1	0	0	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	1	2	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

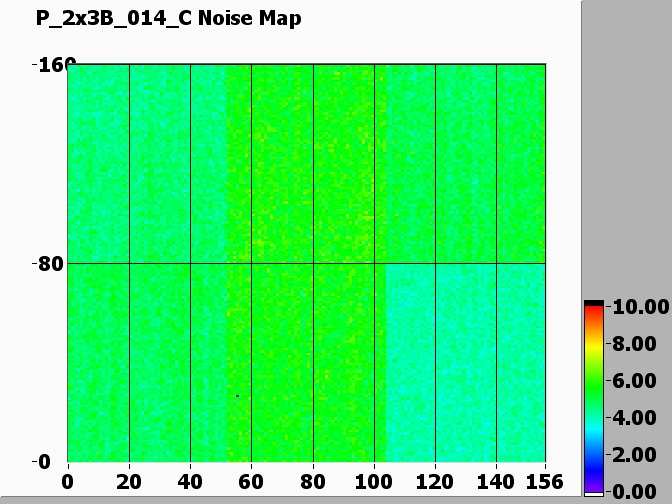

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 4.799549 SIGMA = 0.371821

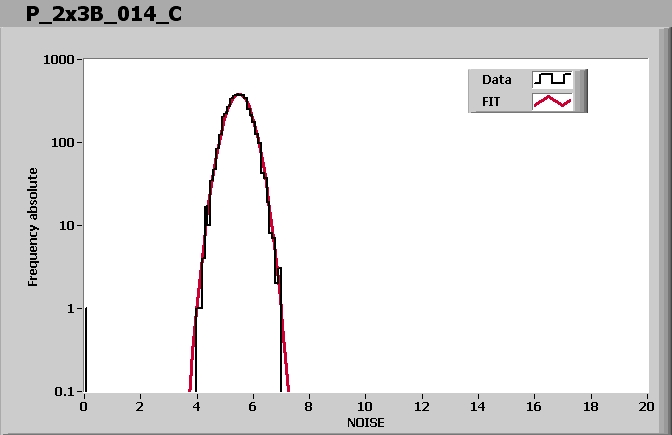

ROC1 NOISE			MEAN = 5.490436 SIGMA = 0.433999
ROC2 NOISE			MEAN = 4.091339 SIGMA = 0.296101
ROC3 NOISE			MEAN = 4.925148 SIGMA = 0.415875

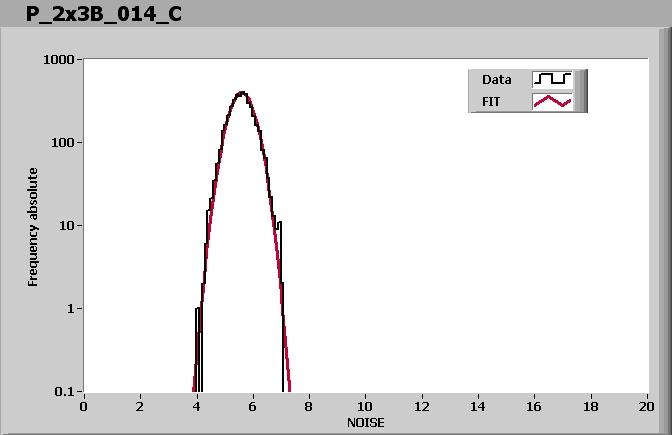

ROC4 NOISE			MEAN = 5.593541 SIGMA = 0.418824
ROC5 NOISE			MEAN = 4.535182 SIGMA = 0.355965

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/13/2007 by Ozhan Koybasi

P_2x3B_014_C-1on 2/15/2007 10:45 AM

P_2x3B_014_C-1on 2/15/2007 10:45 AM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 0/0 0/0

ROC1 1/1 0/0 0/0 1/3 0/0

ROC2 0/0 0/0 0/0 2/0 2/2

ROC3 0/0 0/0 0/0 1/0 0/0

ROC4 0/0 0/0 0/0 0/2 0/0

ROC5 0/0 0/0 0/0 0/1 0/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-16

Plaquette assigned to panel P3R_025
