| IV_XML-File |

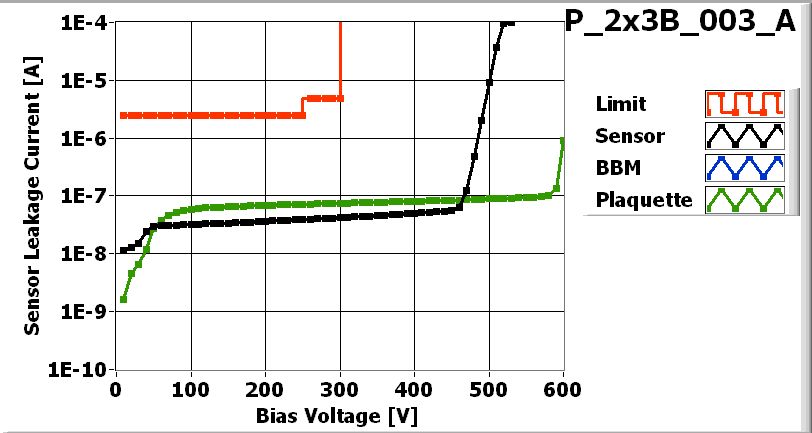

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_003_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_003-2x3B |
| VHDI | 2x3_221 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 27C |
| ROC1 | W53_DXLQY9T | 27B |
| ROC2 | W53_DXLQY9T | 26D |
| ROC3 | W53_DXLQY9T | 12B |
| ROC4 | W53_DXLQY9T | 13A |
| ROC5 | W53_DXLQY9T | 13D |
Inspected by Lockwood Gale on date 2/22/2008
| LR_dev | 0.060 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/22/2008 by Lockwood Gale
PLAQUETTE encapsulated on 2/23/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/23/2008 by Ozhan Koybasi
P_2x3B_003_Aon 2/23/2008 6:23 PM
P_2x3B_003_A-1on 2/23/2008 6:36 PM
P_2x3B_003_A-2on 2/23/2008 6:51 PM
P_2x3B_003_A-3on 2/25/2008 10:09 AM
P_2x3B_003_A-4on 2/25/2008 10:20 AM
P_2x3B_003_A-5on 2/25/2008 10:34 AM
P_2x3B_003_A-6on 2/25/2008 10:37 AM
P_2x3B_003_A-7on 2/25/2008 10:38 AM
P_2x3B_003_A-7on 2/25/2008 10:38 AM
PLAQUETTE TESTED on 2008-02-25 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 174 | 164 | 158 | 146 | 166 | 160 | |
| Vana | 153 | 144 | 144 | 141 | 144 | 133 | |
| Cal_Del | 84 | 88 | 87 | 98 | 60 | 97 | |
| Vthrs_Comp | 91 | 85 | 89 | 77 | 87 | 78 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 2 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 2 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_003_A_Ibias-dac.jpg) |

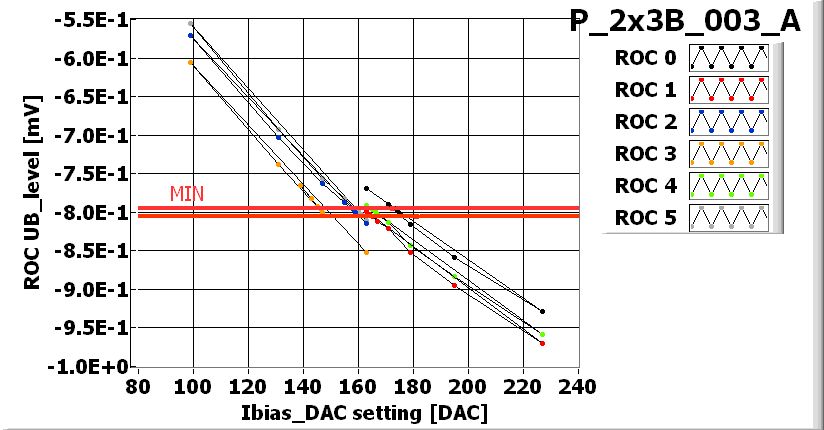

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_003_A_Vana.jpg) |

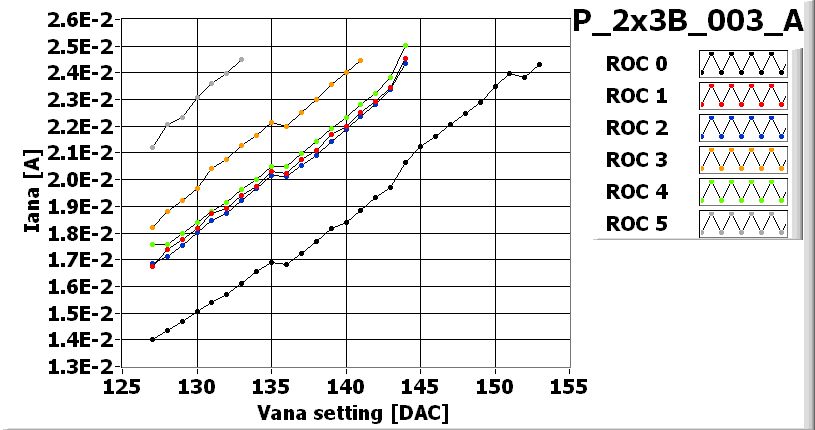

VANA_XML-File |
![[IMAGE] of](P_2x3B_003_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_003_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_003_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_003_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 85 | 95 | 95 | 105 | 125 |
| Vsf | 150 | 150 | 145 | 140 | 145 | 140 |
| VoffsetOp | 145 | 110 | 115 | 85 | 135 | 95 |
| VIbias_PH | 100 | 100 | 100 | 95 | 95 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_003_A-7-580-noise.jpg)

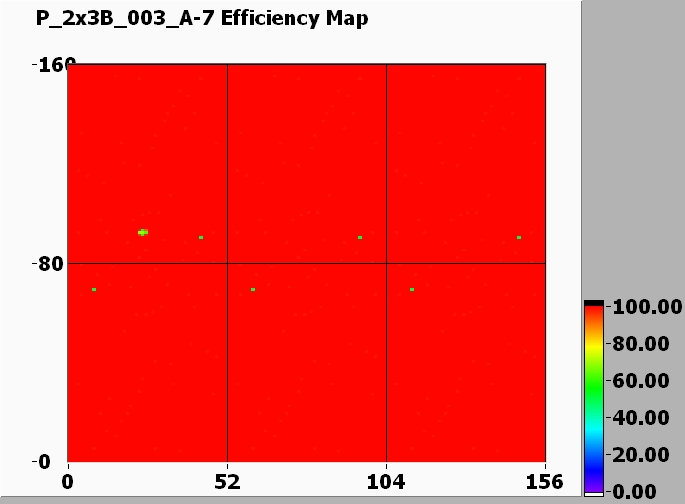

Efficiency MAP
![[IMAGE] of](P_2x3B_003_A-7-580-efficiency.jpg)

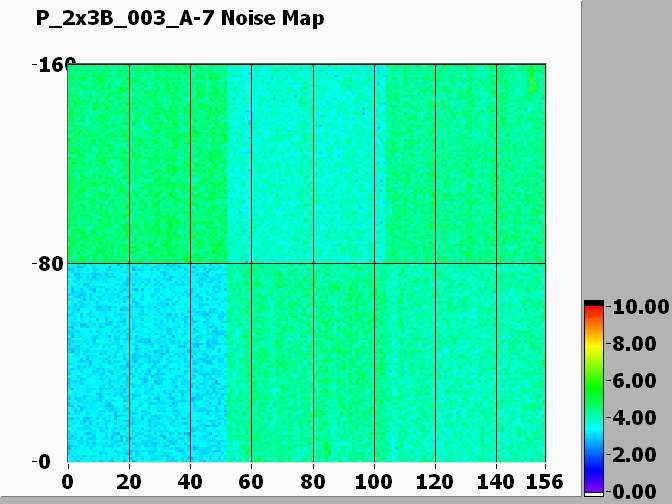

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_003_A-7-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_003_A-7-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
