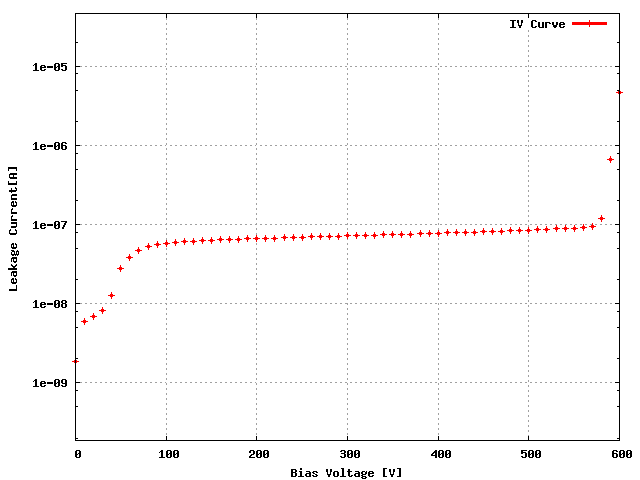

Sensor: S_2x3B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 27C |
| ROC1 | W53_DXLQY9T | 27B |
| ROC2 | W53_DXLQY9T | 26D |
| ROC3 | W53_DXLQY9T | 12B |
| ROC4 | W53_DXLQY9T | 13A |
| ROC5 | W53_DXLQY9T | 13D |
| Ibias_DAC, Ibias_DAC Data | 176 | 164 | 160 | 148 | 166 | 160 |
| Vana, VanaData | 154 | 144 | 145 | 141 | 144 | 133 |
| CalDelData and plots | 84 | 88 | 87 | 98 | 60 | 97 |
| VthrCompData and plots | 91 | 85 | 89 | 77 | 87 | 78 | Depletion Voltage is -10 and suggested operational voltage is -50
