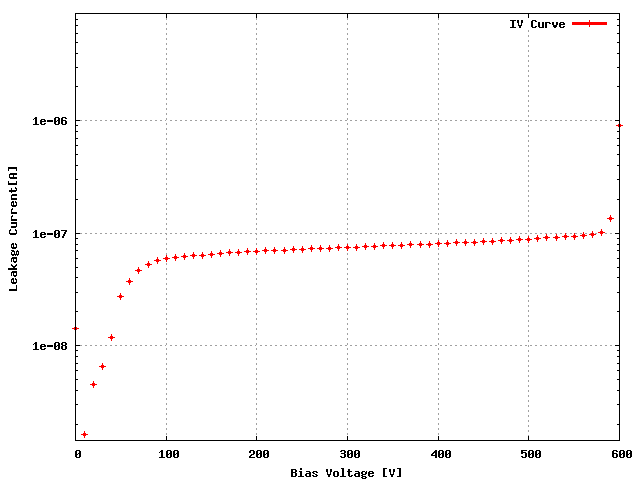

Sensor: S_2x3B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W53_DXLQY9T | 27C |
ROC1 | W53_DXLQY9T | 27B |
ROC2 | W53_DXLQY9T | 26D |
ROC3 | W53_DXLQY9T | 12B |
ROC4 | W53_DXLQY9T | 13A |
ROC5 | W53_DXLQY9T | 13D |
Ibias_DAC, Ibias_DAC Data | 174 | 164 | 158 | 146 | 166 | 160 |
Vana, VanaData | 153 | 144 | 144 | 141 | 144 | 133 |
CalDelData and plots | 84 | 88 | 87 | 98 | 60 | 97 |
VthrCompData and plots | 91 | 85 | 89 | 77 | 87 | 78 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 53 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

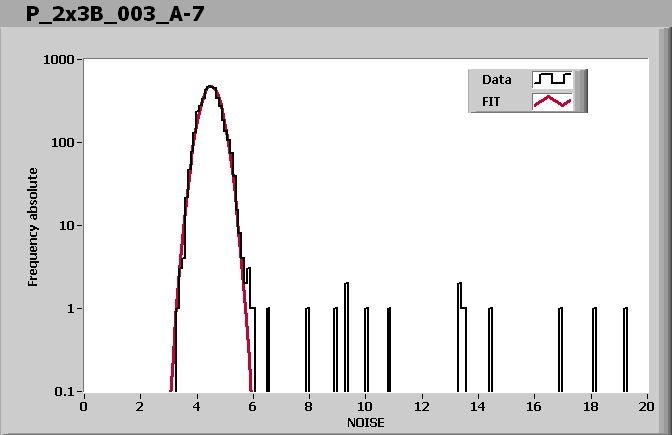

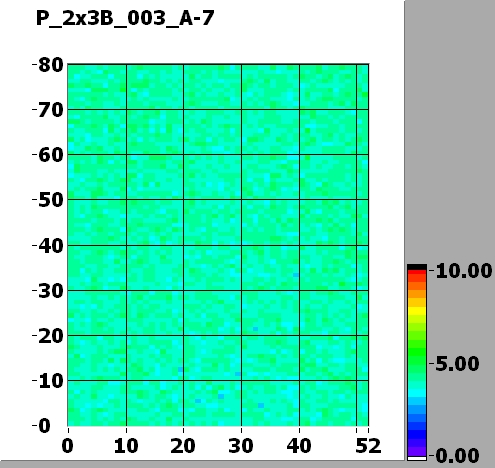

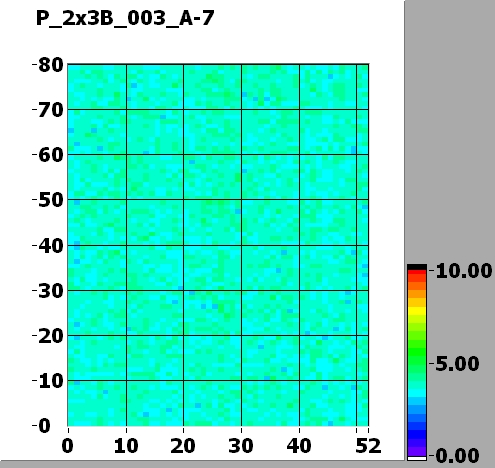

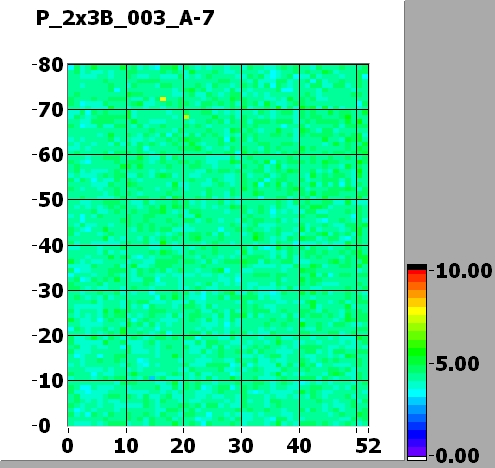

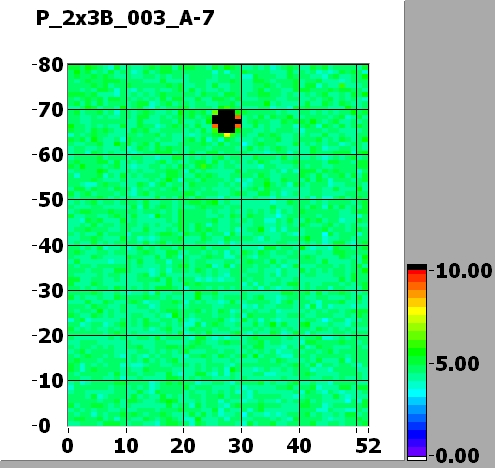

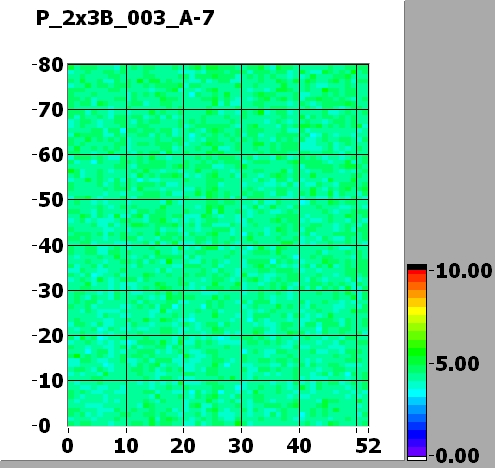

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 105 | 85 | 95 | 95 | 105 | 125 |
Vsf | 150 | 150 | 145 | 140 | 145 | 140 |
VoffsetOp | 145 | 110 | 115 | 85 | 135 | 95 |
VIbias_PH | 100 | 100 | 100 | 95 | 95 | 105 |
Comment (if any):
This Device have been tested 7Times prior to this one and here are the links to the previous tests:End testing time: 11:04 AM
