![[IMAGE] of](P_1x5R_178_C_IV.jpg)

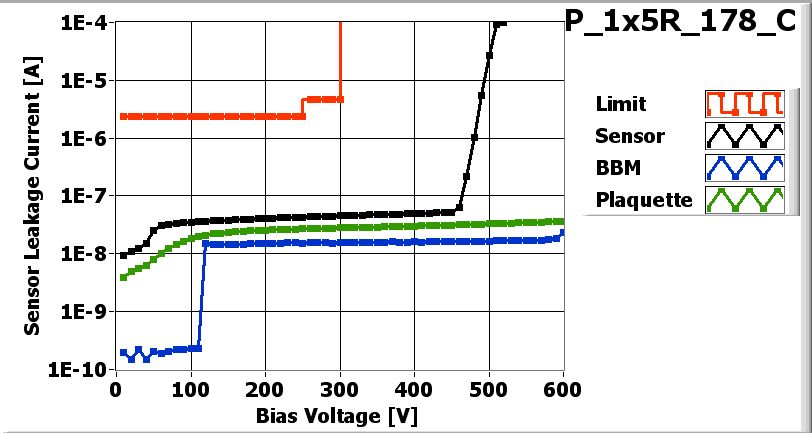

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_178_C_LASER.jpg)

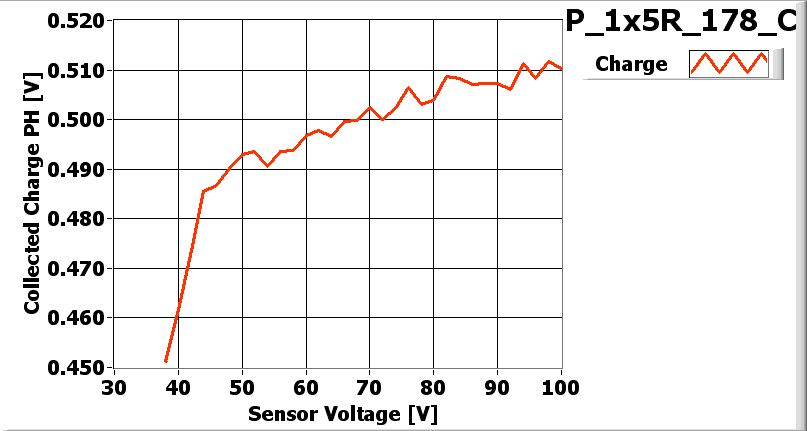

| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 5/8/2007
| Part | ID |
|---|---|
| BBM | BBM_178-1x5 |
| VHDI | 1x5R_283 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 26D |
| ROC1 | KFNG13T | 36A |
| ROC2 | KFNG13T | 36D |
| ROC3 | KFNG13T | 16B |
| ROC4 | KFNG13T | 46C |
Inspected by Arndt Kirk on date 5/10/2007
| LR_dev | 0.060 |
| LL_dev | 0.046 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 5/10/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/10/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/10/2007 by Ortiz Jason
P_1x5R_178_Con 5/15/2007 12:57 PM
P_1x5R_178_Con 5/15/2007 12:57 PM
P_1x5R_178_C-1on 5/15/2007 1:28 PM
P_1x5R_178_C-1on 5/15/2007 1:28 PM
PLAQUETTE TESTED on 2007-05-15 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 148 | 150 | 174 | 140 | 156 | |
| Vana | 133 | 129 | 135 | 127 | 135 | |
| Cal_Del | 91 | 80 | 72 | 81 | 73 | |
| Vthrs_Comp | 75 | 71 | 74 | 76 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_178_C_Ibias-dac.jpg) |

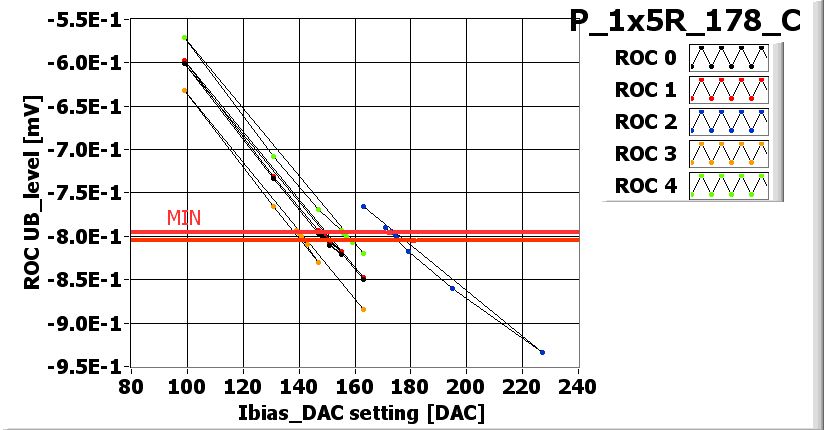

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_178_C_Vana.jpg) |

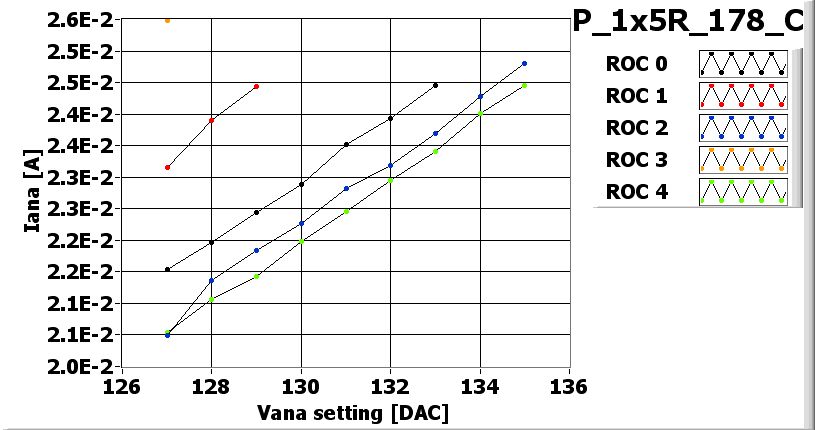

VANA_XML-File |
![[IMAGE] of](P_1x5R_178_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_178_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_178_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_178_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 90 | 100 | 120 | 115 |
| Vsf | 145 | 140 | 140 | 135 | 140 |
| VoffsetOp | 75 | 75 | 90 | 70 | 100 |
| VIbias_PH | 105 | 100 | 100 | 95 | 95 |

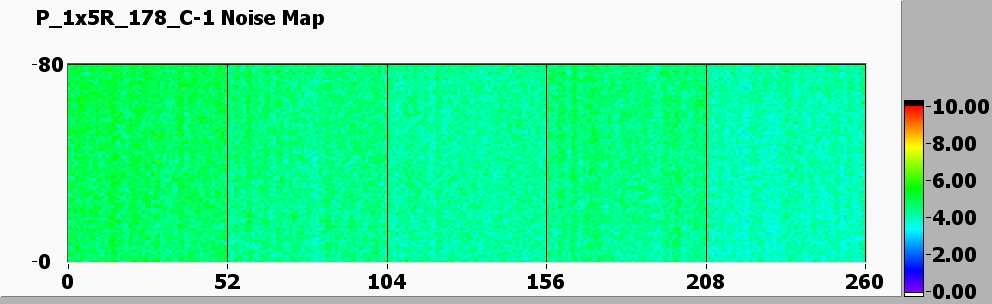

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_178_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_178_C-1-580-efficiency.jpg)

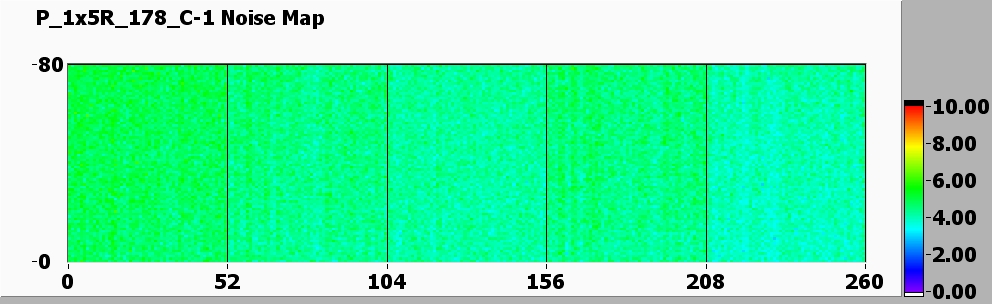

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_178_C-1-200-noise.jpg)

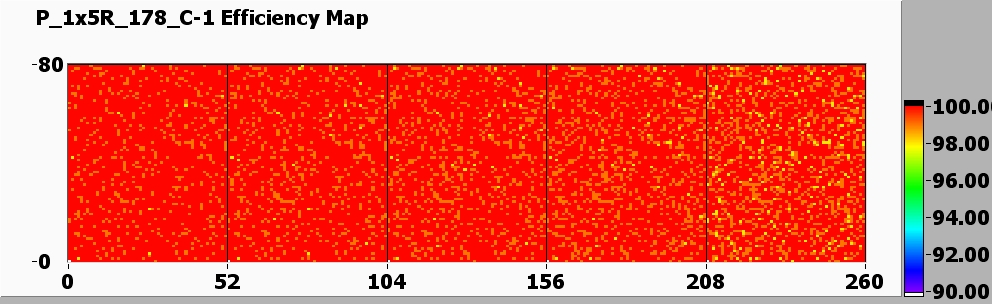

Efficiency MAP
![[IMAGE] of](P_1x5R_178_C-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
