Production testing

Date:5/15/2007

Operator: Emily Grace

start testing time:12:57 PM

Sensor: S_1x5R_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 26D

ROC1 KFNG13T 36A

ROC2 KFNG13T 36D

ROC3 KFNG13T 16B

ROC4 KFNG13T 46C

ROC	ROC wafer	Label
ROC0	KFNG13T	26D
ROC1	KFNG13T	36A
ROC2	KFNG13T	36D
ROC3	KFNG13T	16B
ROC4	KFNG13T	46C

Depletion Voltage is -54 and suggested operational voltage is -94

Ibias_DAC, Ibias_DAC Data 148 148 174 140 156

Vana, VanaData 133 130 135 127 137

CalDelData and plots 92 80 72 81 73

VthrCompData and plots 75 72 74 76 87

TestDdata ,TestD Plots 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

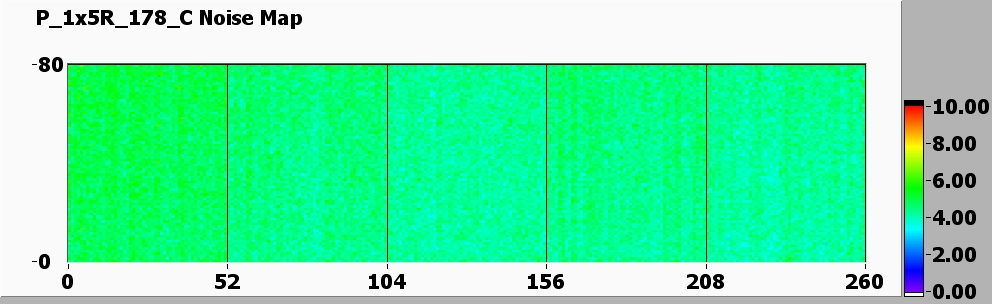

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	85	95	125	100
Vsf	140	140	140	140	140
VoffsetOp	75	75	90	70	100
VIbias_PH	105	100	100	95	100

ROC0 NOISE			MEAN = 4.793847 SIGMA = 0.395890

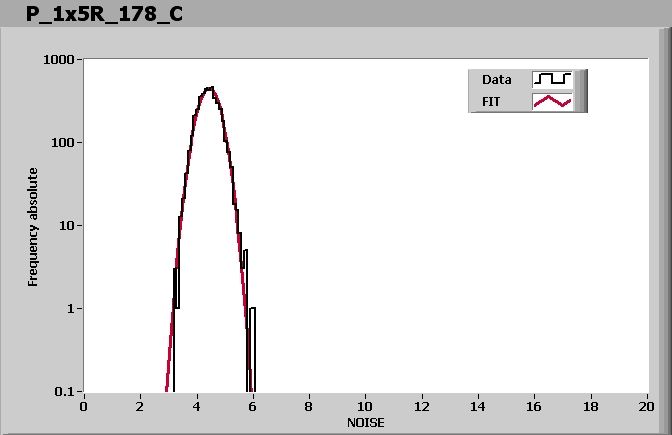

ROC1 NOISE			MEAN = 4.426821 SIGMA = 0.366939
ROC2 NOISE			MEAN = 4.211903 SIGMA = 0.330073

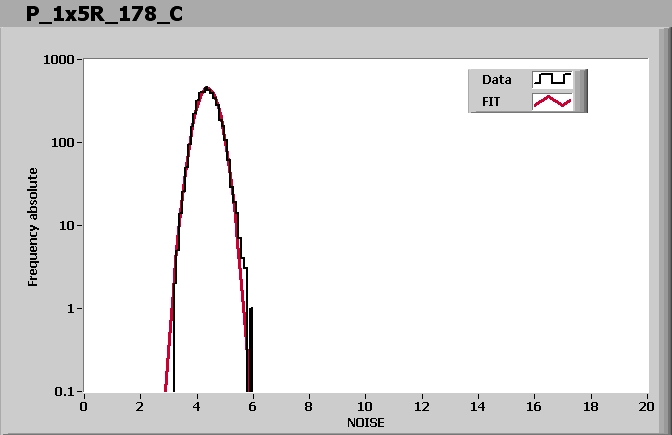

ROC3 NOISE			MEAN = 4.378191 SIGMA = 0.364544
ROC4 NOISE			MEAN = 4.208078 SIGMA = 0.344107

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:24 PM

Ibias_DAC, Ibias_DAC Data	148	148	174	140	156
Vana, VanaData	133	130	135	127	137
CalDelData and plots	92	80	72	81	73
VthrCompData and plots	75	72	74	76	87
TestDdata ,TestD Plots	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
