P_1x5R_171_A

Parts committed by Bolla Gino on date 2/1/2007

PartID
BBMBBM_171-1x5
VHDI1x5R_259

ROCROC waferLabel
ROC0W30_X74K5RT26D
ROC1W30_X74K5RT26C
ROC2W30_X74K5RT26B
ROC3W30_X74K5RT26A
ROC4W30_X74K5RT25D

Inspected by Arndt Kirk on date 2/6/2007
LR_dev0.059
LL_dev0.071
FINAL COMMENT by Arndt KirkNo assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 2/6/2007 by Arndt Kirk

P_1x5R_171_Aon 2/7/2007 10:38 AM

P_1x5R_171_Aon 2/7/2007 10:38 AM

PLAQUETTE TESTED on 2007-02-07 by Cameron McKinney

[IMAGE] of

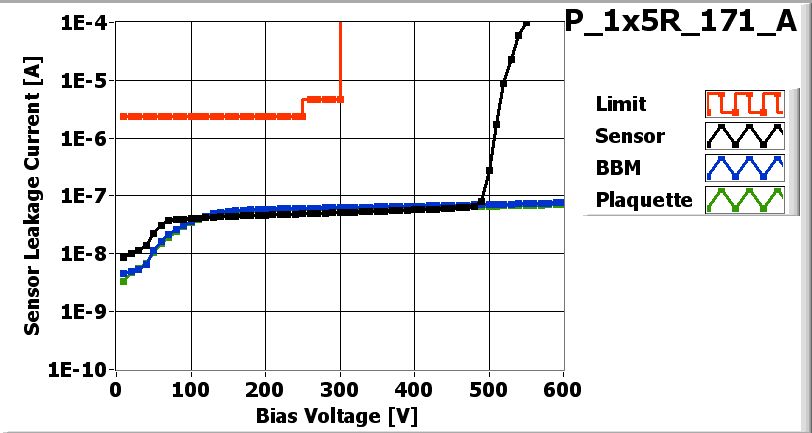

IV_XML-File
Maximum Voltage 600 V
[IMAGE] of

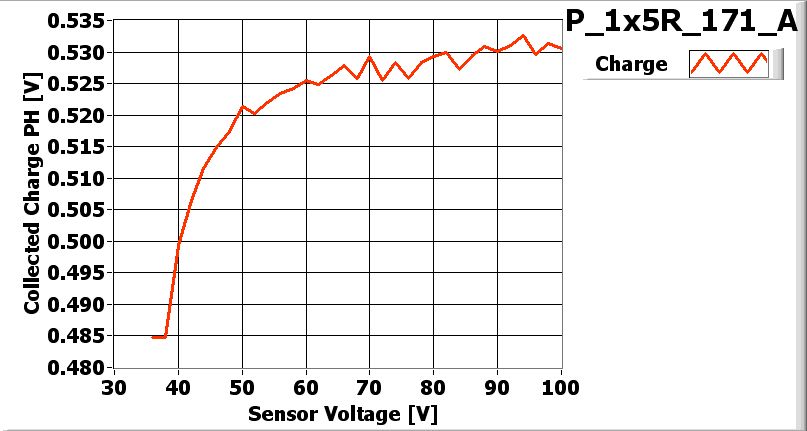

LASER_XML-File
Depletion Voltage 52 V
Operational Voltage 92 V

ROCROC0ROC1ROC2ROC3ROC4

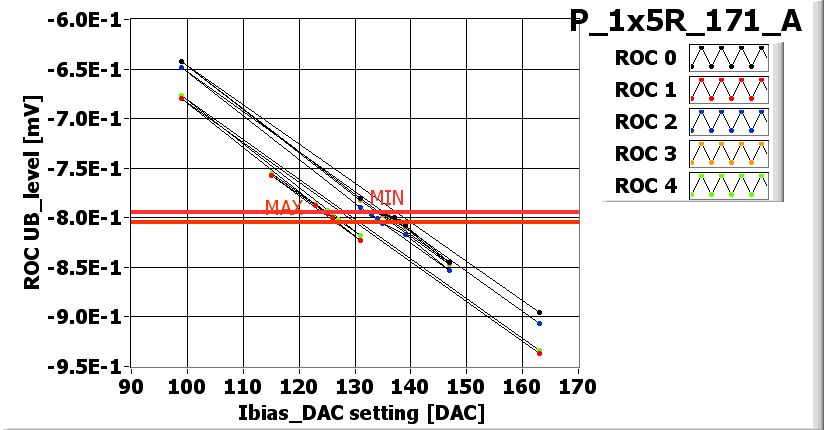

Ibias_DAC138126134136126

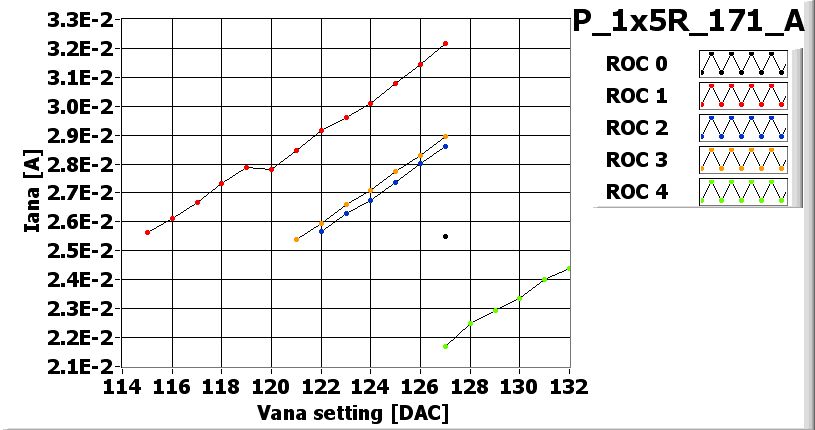

Vana127115122121132
Cal_Del8073838985
Vthrs_Comp7376726781
Unbumped00000
Dead00000
Noisy00000
Undecoded00000
Total BAD00000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

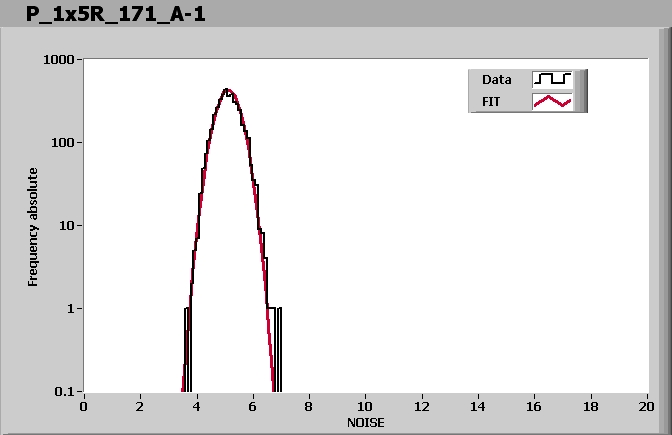

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.112920

SIGMA = 0.395855
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.496442

SIGMA = 0.359923

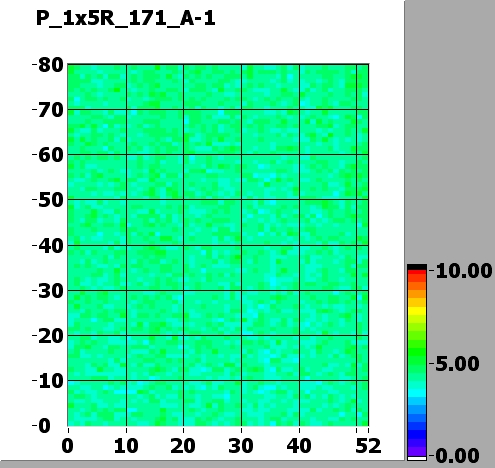

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.227598

SIGMA = 0.330737

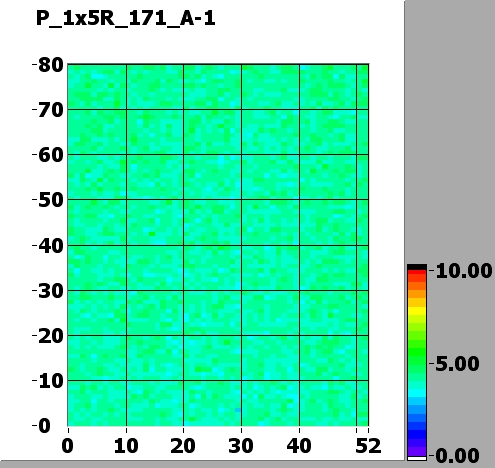

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.087200

SIGMA = 0.317448

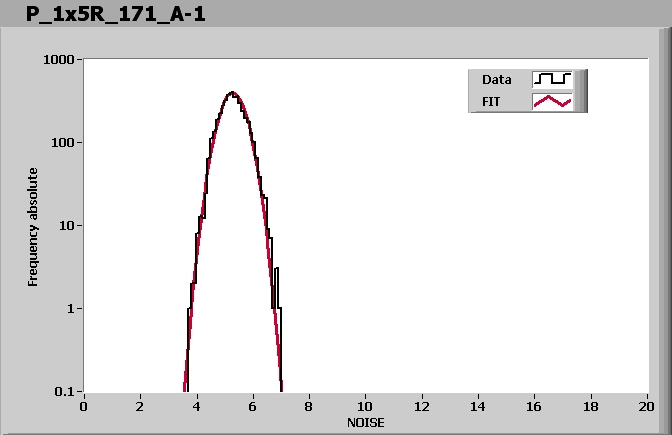

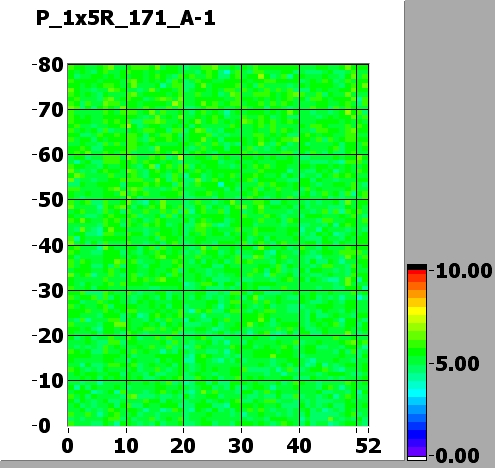

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.274742

SIGMA = 0.426209
PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/8/2007 by Ozhan Koybasi

P_1x5R_171_A-1on 2/9/2007 8:56 AM

P_1x5R_171_A-1on 2/9/2007 8:56 AM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/00/00/0
ROC10/00/00/00/00/0
ROC20/00/00/00/00/0
ROC30/00/00/02/10/0
ROC40/00/00/00/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-12

Plaquette assigned to panel P4L_022
