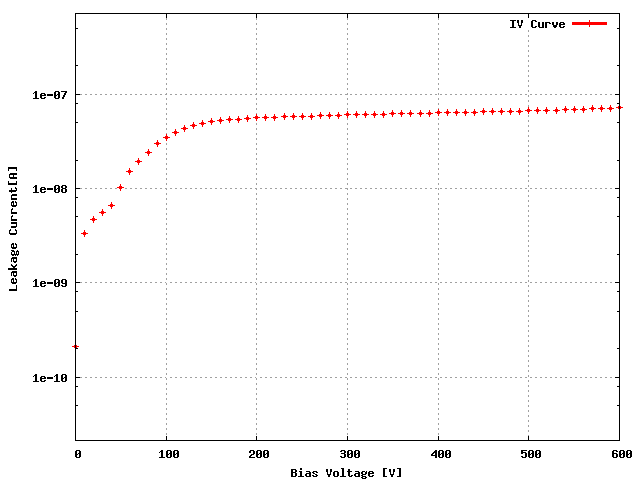

Sensor: S_1x5R_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	26D
ROC1	W30_X74K5RT	26C
ROC2	W30_X74K5RT	26B
ROC3	W30_X74K5RT	26A
ROC4	W30_X74K5RT	25D

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	138	126	134	136	126
Vana, VanaData	127	115	122	121	132
CalDelData and plots	80	73	83	89	85
VthrCompData and plots	73	76	72	67	81
TestDdata ,TestD Plots	0	0	0	2	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD

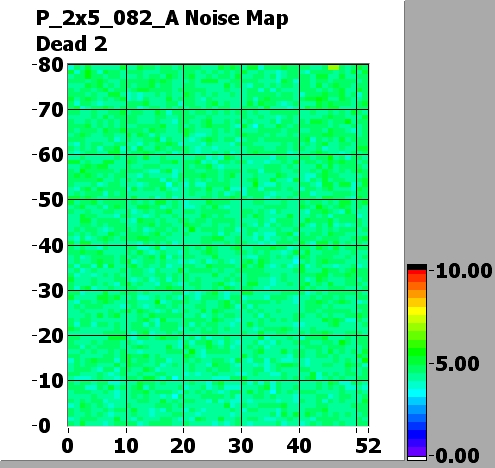

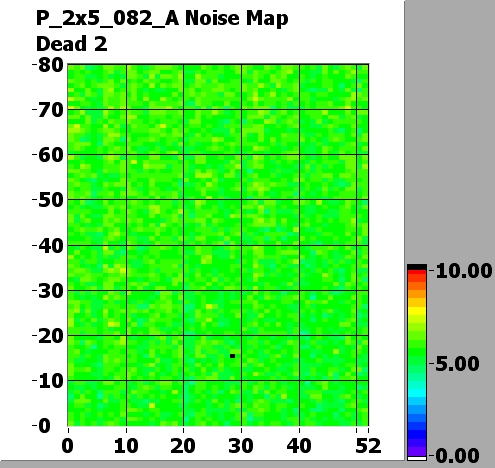

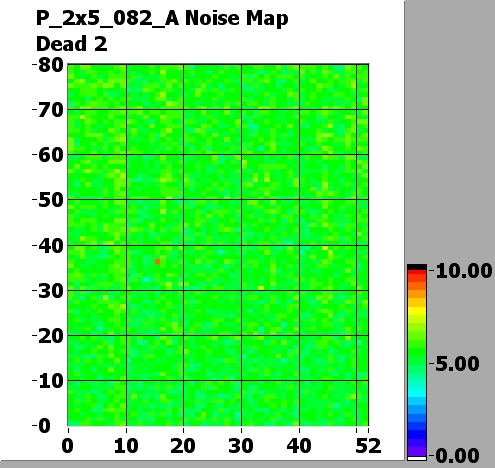

Noise MAP

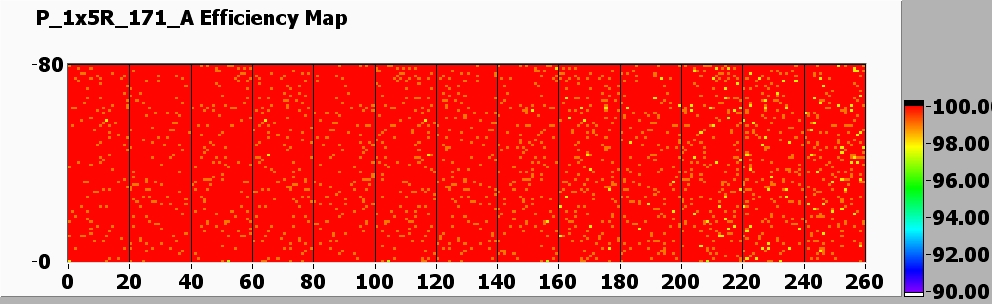

Efficiency MAP

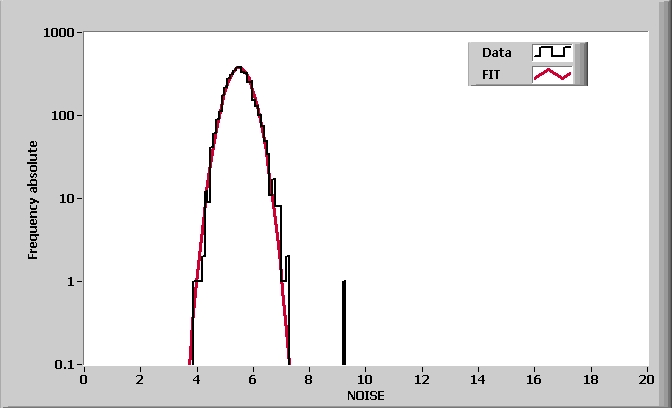

ROC0 NOISE			MEAN = 5.503287 SIGMA = 0.439596
ROC1 NOISE			MEAN = 4.860021 SIGMA = 0.374432

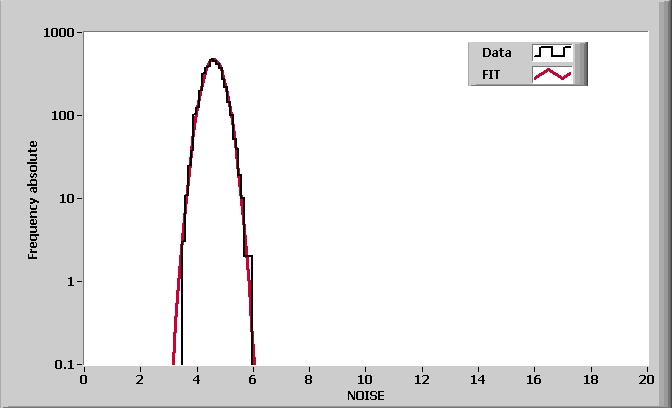

ROC2 NOISE			MEAN = 4.597161 SIGMA = 0.352722

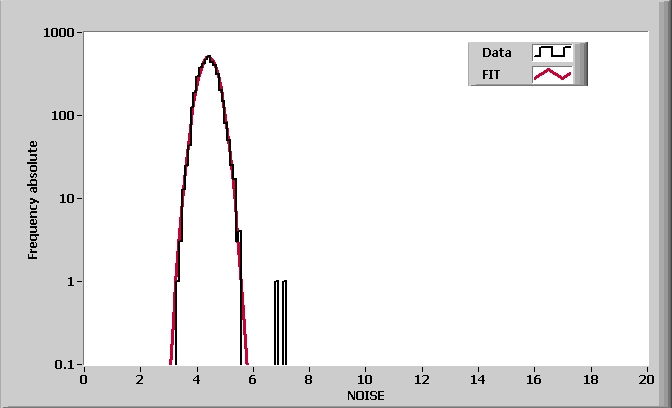

ROC3 NOISE			MEAN = 4.412759 SIGMA = 0.328604

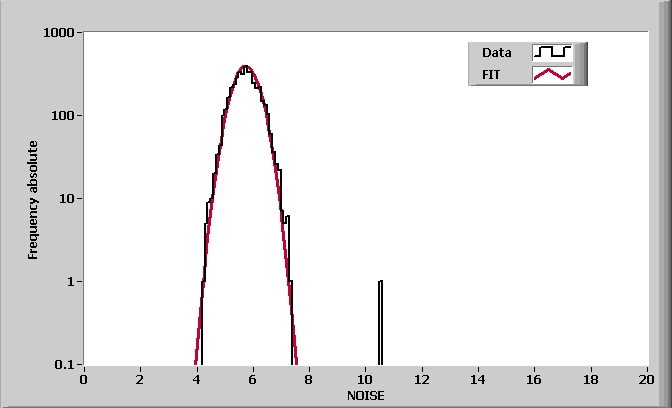

ROC4 NOISE			MEAN = 5.738467 SIGMA = 0.438382

Comment (if any): Good

End testing time: 10:55 AM
