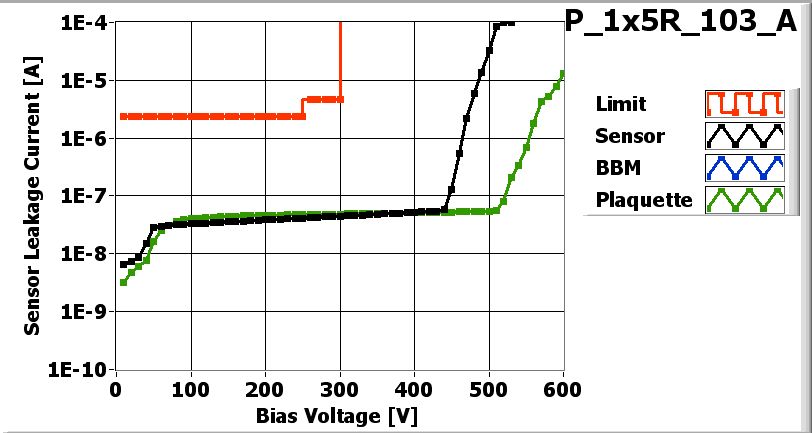

![[IMAGE] of](P_1x5R_103_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_103_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_103-1x5 |
| VHDI | 1x5R_544 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 67B |
| ROC1 | W55_D3LQE4T | 15A |
| ROC2 | W55_D3LQE4T | 14D |
| ROC3 | W55_D3LQE4T | 14B |
| ROC4 | W55_D3LQE4T | 11D |
Inspected by Lockwood Gale on date 12/3/2007
| LR_dev | 0.040 |
| LL_dev | 0.031 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/3/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi
P_1x5R_103_Aon 12/5/2007 2:11 PM
P_1x5R_103_Aon 12/5/2007 2:11 PM
PLAQUETTE TESTED on 2007-12-05 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 148 | 144 | 160 | 158 | 164 | |
| Vana | 141 | 138 | 144 | 144 | 149 | |
| Cal_Del | 88 | 87 | 88 | 85 | 72 | |
| Vthrs_Comp | 75 | 86 | 91 | 85 | 86 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 14 | 122 | 8 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 14 | 122 | 8 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_103_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_103_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_103_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_103_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_103_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_103_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 95 | 105 | 95 | 105 |
| Vsf | 145 | 140 | 145 | 145 | 145 |
| VoffsetOp | 95 | 85 | 115 | 90 | 105 |
| VIbias_PH | 105 | 95 | 95 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_103_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_103_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5R_103_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_103_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
