P_1x5R_103

P_1x5R_103_A-1

Production testing

Date:12/7/2007

Operator: Ozhan Koybasi

start testing time:11:59 AM

Sensor: S_1x5R_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_DOLQC8T 67B

ROC1 W55_D3LQE4T 15A

ROC2 W55_D3LQE4T 14D

ROC3 W55_D3LQE4T 14B

ROC4 W55_D3LQE4T 11D

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	67B
ROC1	W55_D3LQE4T	15A
ROC2	W55_D3LQE4T	14D
ROC3	W55_D3LQE4T	14B
ROC4	W55_D3LQE4T	11D

Inspected by Lockwood Gale on date 12/3/2007

LR_dev 0.040

LL_dev 0.031

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/3/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi

P_1x5R_103_Aon 12/5/2007 2:11 PM

PLAQUETTE TESTED on 2007-12-05 by Ozhan Koybasi

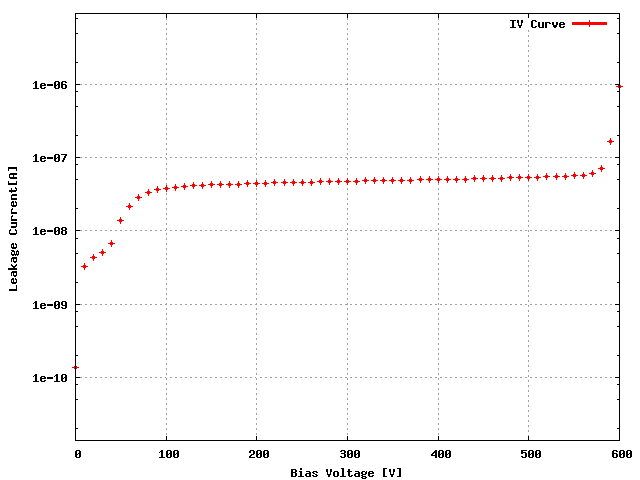

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4
Ibias_DAC	148	144	160	158	164
Vana	141	138	144	144	149
Cal_Del	88	87	88	85	72
Vthrs_Comp	75	86	91	85	86
Unbumped	1	0	0	0	0
Dead	0	14	122	8	2
Noisy	0	0	0	0	0
Undecoded	0	0	0	0	0
Total BAD	1	14	122	8	2

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	85	95	105	95	105
Vsf	145	140	145	145	145
VoffsetOp	95	85	115	90	105
VIbias_PH	105	95	95	100	105

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 148 144 160 158 164

Vana, VanaData 141 138 144 144 149

CalDelData and plots 88 87 88 85 72

VthrCompData and plots 75 86 91 85 86

TestDdata ,TestD Plots 7 14 121 8 2

LightData ,Light Plots 1 0 1 0 0

Pass/Fail TestD GOOD GOOD BAD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

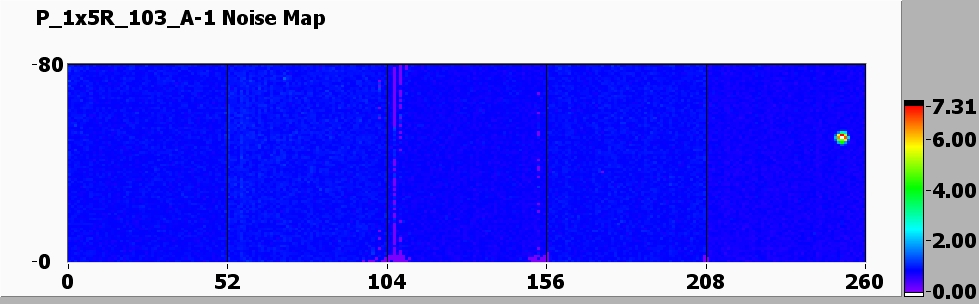

Noise MAP at VMAX

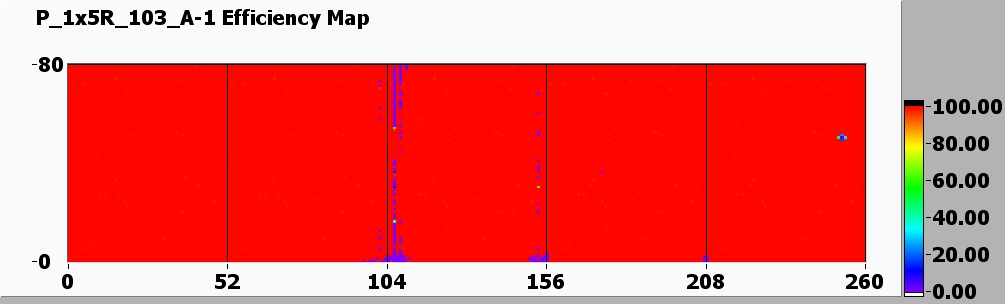

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	85	90	105	100	100
Vsf	145	140	145	145	145
VoffsetOp	95	85	115	90	110
VIbias_PH	100	95	95	95	95

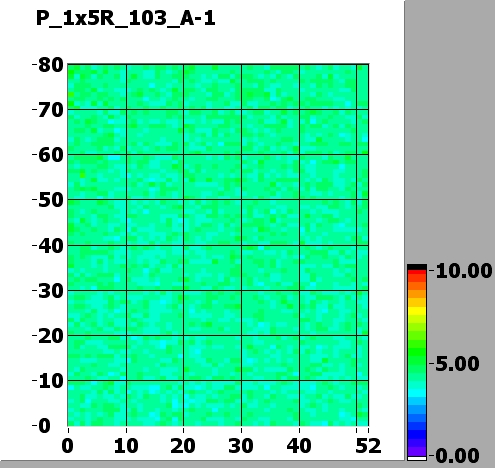

ROC0 NOISE			MEAN = 4.168729 SIGMA = 0.336414
ROC1 NOISE			MEAN = 4.399352 SIGMA = 0.361296

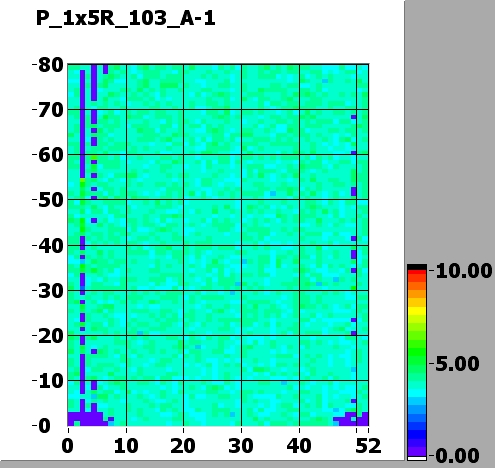

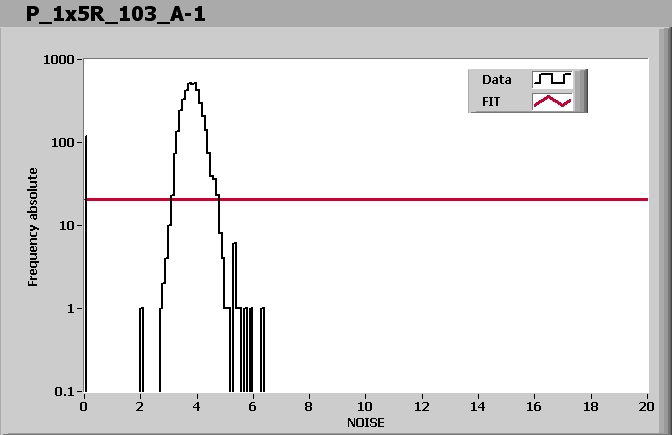

ROC2 NOISE			MEAN = -26665.804698 SIGMA = 265794.266153
ROC3 NOISE			MEAN = 4.259098 SIGMA = 0.333758

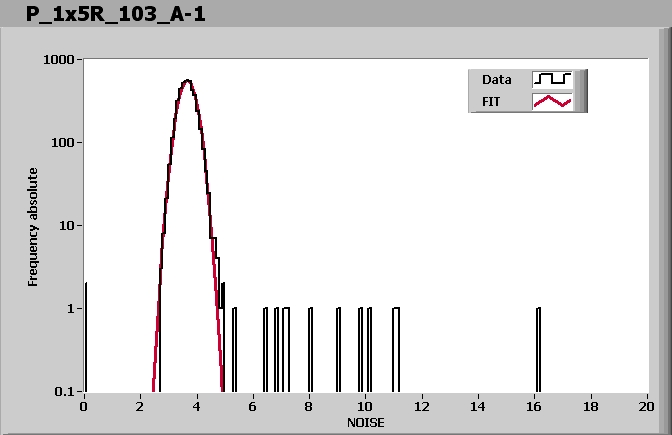

ROC4 NOISE			MEAN = 3.663155 SIGMA = 0.294229

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x5R_103_A.html,

End testing time: 12:27 PM

Ibias_DAC, Ibias_DAC Data	148	144	160	158	164
Vana, VanaData	141	138	144	144	149
CalDelData and plots	88	87	88	85	72
VthrCompData and plots	75	86	91	85	86
TestDdata ,TestD Plots	7	14	121	8	2
LightData ,Light Plots	1	0	1	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
