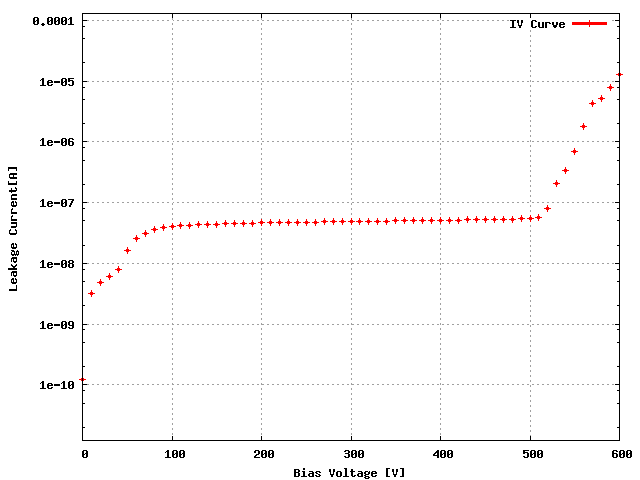

Sensor: S_1x5R_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 67B |
| ROC1 | W55_D3LQE4T | 15A |
| ROC2 | W55_D3LQE4T | 14D |
| ROC3 | W55_D3LQE4T | 14B |
| ROC4 | W55_D3LQE4T | 11D |
Inspected by Lockwood Gale on date 12/3/2007
| LR_dev | 0.040 |
| LL_dev | 0.031 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/3/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi
P_1x5R_103_Aon 12/5/2007 2:11 PM
| Ibias_DAC, Ibias_DAC Data | 148 | 144 | 160 | 158 | 164 |
| Vana, VanaData | 141 | 138 | 144 | 144 | 149 |
| CalDelData and plots | 88 | 87 | 88 | 85 | 72 |
| VthrCompData and plots | 75 | 86 | 91 | 85 | 86 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 5 | 14 | 122 | 8 | 3 |
| LightData ,Light Plots | 1 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_103_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_103_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 85 | 95 | 105 | 95 | 105 |
| Vsf | 145 | 140 | 145 | 145 | 145 |
| VoffsetOp | 95 | 85 | 115 | 90 | 105 |
| VIbias_PH | 105 | 95 | 95 | 100 | 105 |
