P_1x5R_028

P_1x5R_028_C

Parts committed by Bolla Gino on date 2/5/2007

Part	ID
BBM	BBM_028-1x5
VHDI	1x5R_206

ROC ROC wafer Label

ROC0 XE4K3KT 30D

ROC1 XE4K3KT 26B

ROC2 XE4K3KT 27A

ROC3 XE4K3KT 28A

ROC4 XE4K3KT 29A

ROC	ROC wafer	Label
ROC0	XE4K3KT	30D
ROC1	XE4K3KT	26B
ROC2	XE4K3KT	27A
ROC3	XE4K3KT	28A
ROC4	XE4K3KT	29A

Inspected by Lockwood Gale on date 2/9/2007

LR_dev 0.097

LL_dev 0.095

FINAL COMMENT by Lockwood Gale No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale

P_1x5R_028_Con 2/12/2007 12:55 PM

PLAQUETTE TESTED on 2007-02-12 by Isaac Childres

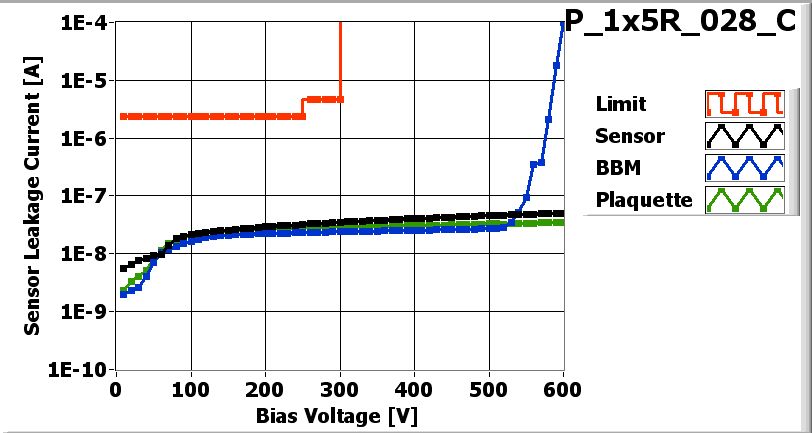

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4

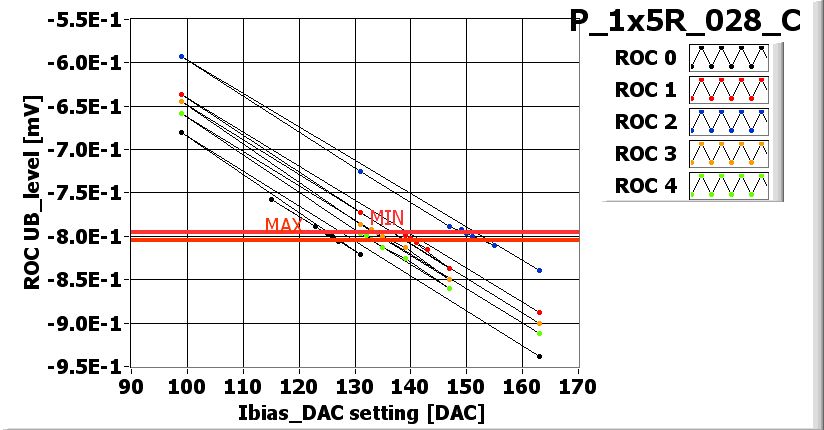

Ibias_DAC	126	140	150	134	132

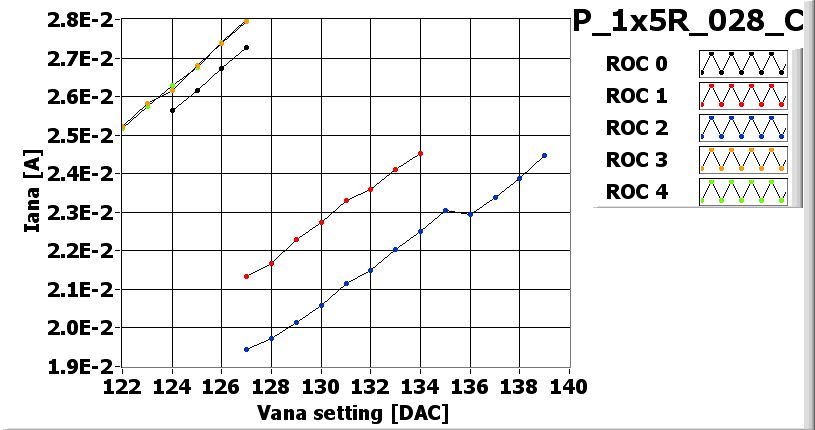

Vana	124	134	139	122	122
Cal_Del	82	83	70	91	87
Vthrs_Comp	79	84	88	64	79
Unbumped	0	0	0	0	0
Dead	0	0	0	0	4
Noisy	0	0	0	0	0
Undecoded	0	0	0	0	0
Total BAD	0	0	0	0	4

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

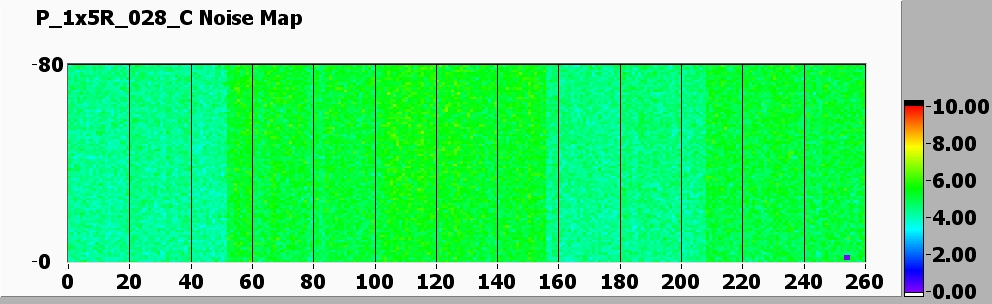

Noise MAP

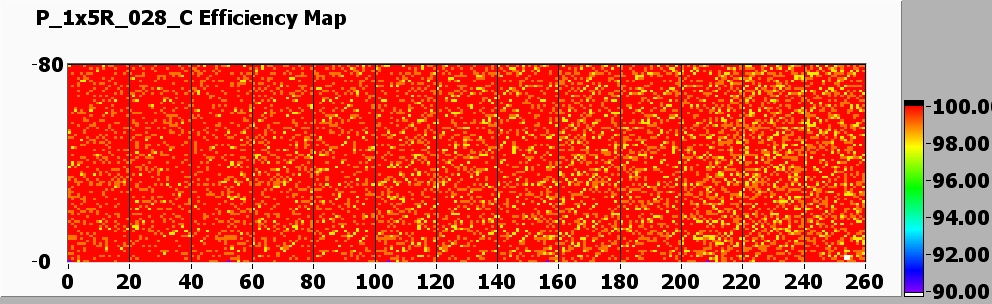

Efficiency MAP

ROC0 NOISE			MEAN = 4.299959 SIGMA = 0.340810

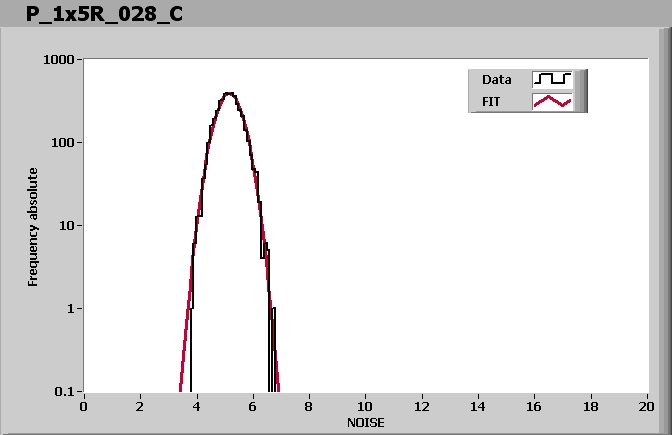

ROC1 NOISE			MEAN = 5.150453 SIGMA = 0.428277

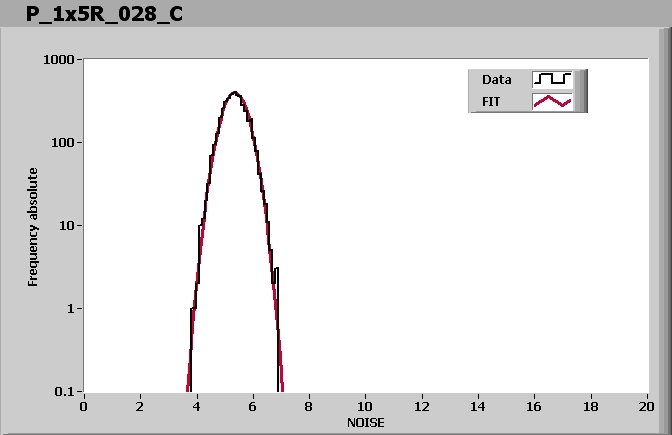

ROC2 NOISE			MEAN = 5.351635 SIGMA = 0.417564
ROC3 NOISE			MEAN = 4.416182 SIGMA = 0.343819

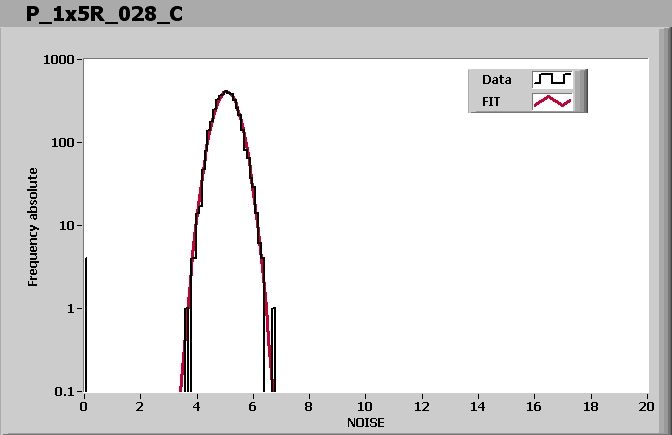

ROC4 NOISE			MEAN = 5.060168 SIGMA = 0.401572

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/13/2007 by Ozhan Koybasi

P_1x5R_028_C-1on 2/15/2007 9:43 AM

P_1x5R_028_C-1on 2/15/2007 9:43 AM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 0/0 0/0

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/1 0/0

ROC3 0/0 0/0 0/0 0/2 0/0

ROC4 4/4 0/0 0/0 0/0 0/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-16

Plaquette assigned to panel P4L_018
