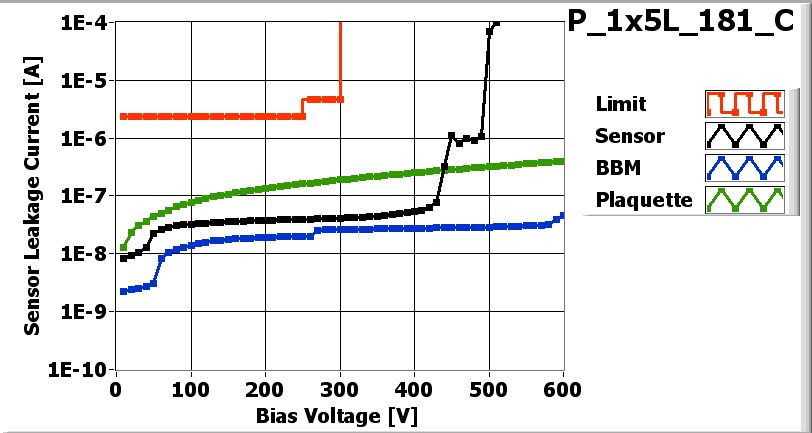

![[IMAGE] of](P_1x5L_181_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_181_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 54 V |
| Operational Voltage 94 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_181-1x5 |
| VHDI | 1x5L_300 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 20D |
| ROC1 | KFNG13T | 11A |
| ROC2 | KFNG13T | 31D |
| ROC3 | KFNG13T | 11B |
| ROC4 | KFNG13T | 11C |
Inspected by Arndt Kirk on date 5/18/2007
| LR_dev | 0.038 |
| LL_dev | 0.063 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. Released pusher before releasing joining force. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/18/2007 by Arndt Kirk
P_1x5L_181_Con 5/18/2007 4:38 PM
P_1x5L_181_Con 5/18/2007 4:38 PM
PLAQUETTE encapsulated on 5/21/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/21/2007 by Perera Rajiv
P_1x5L_181_C-1on 5/22/2007 2:25 PM
P_1x5L_181_C-2on 5/22/2007 2:27 PM
P_1x5L_181_C-3on 5/22/2007 2:46 PM
P_1x5L_181_C-4on 5/22/2007 2:51 PM
P_1x5L_181_C-5on 5/22/2007 3:06 PM
P_1x5L_181_C-6on 5/22/2007 3:18 PM
P_1x5L_181_C-6on 5/22/2007 3:18 PM
PLAQUETTE TESTED on 2007-05-22 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 154 | 172 | 174 | 160 | 156 | |
| Vana | 135 | 144 | 133 | 144 | 157 | |
| Cal_Del | 84 | 70 | 80 | 68 | 77 | |
| Vthrs_Comp | 86 | 90 | 76 | 85 | 90 | |
| Unbumped | 1 | 1 | 1 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_181_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

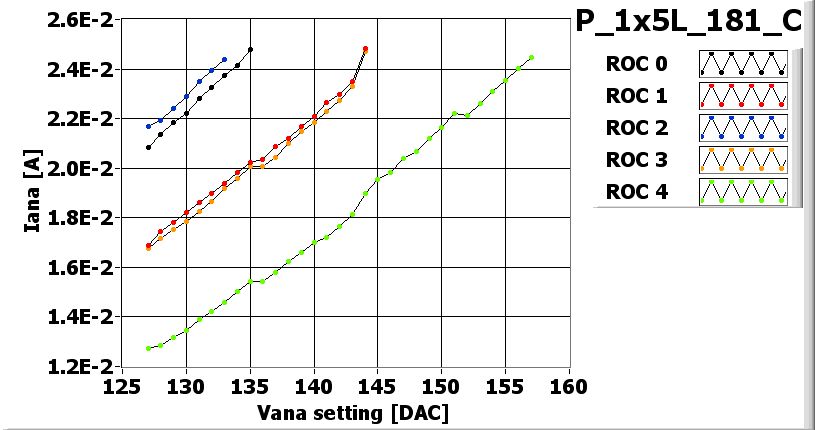

![[IMAGE] of](P_1x5L_181_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_181_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_181_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_181_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_181_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 95 | 115 | 90 | 95 |
| Vsf | 140 | 145 | 140 | 145 | 155 |
| VoffsetOp | 90 | 110 | 105 | 110 | 105 |
| VIbias_PH | 95 | 100 | 100 | 100 | 100 |

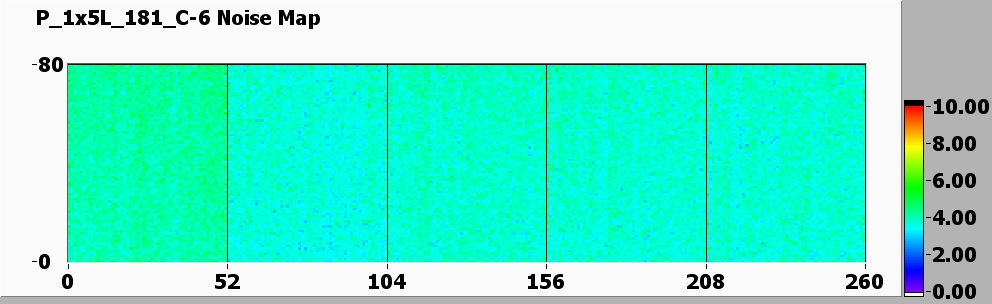

Noise MAP at VMAX
![[IMAGE] of](P_1x5L_181_C-6-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_181_C-6-580-efficiency.jpg)

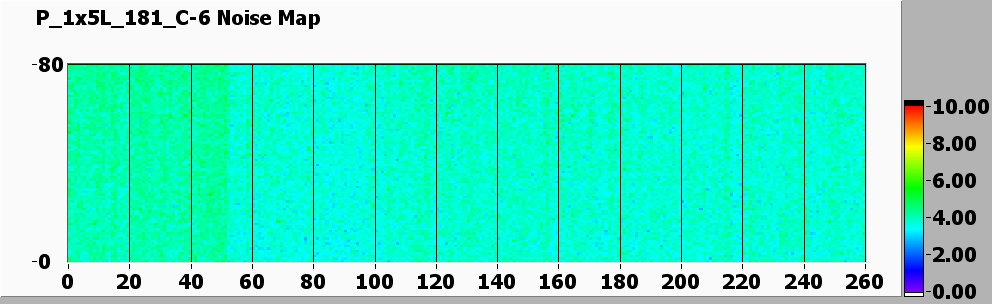

Noise MAP at -200 V
![[IMAGE] of](P_1x5L_181_C-6-200-noise.jpg)

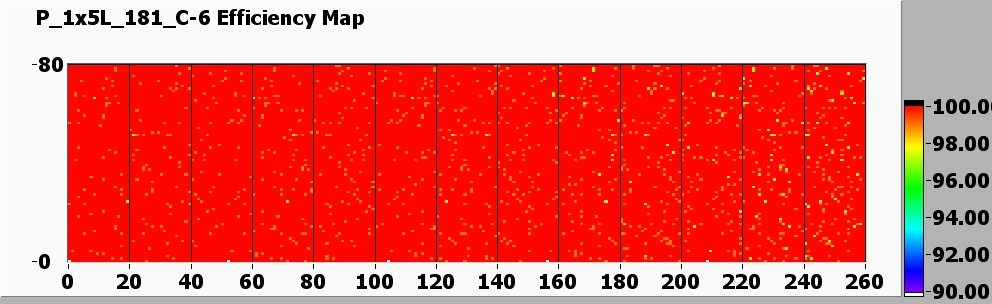

Efficiency MAP
![[IMAGE] of](P_1x5L_181_C-6-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
