P_1x5L_181

P_1x5L_181_C

Production testing

Date:5/18/2007

Operator: Emily Grace

start testing time:4:38 PM

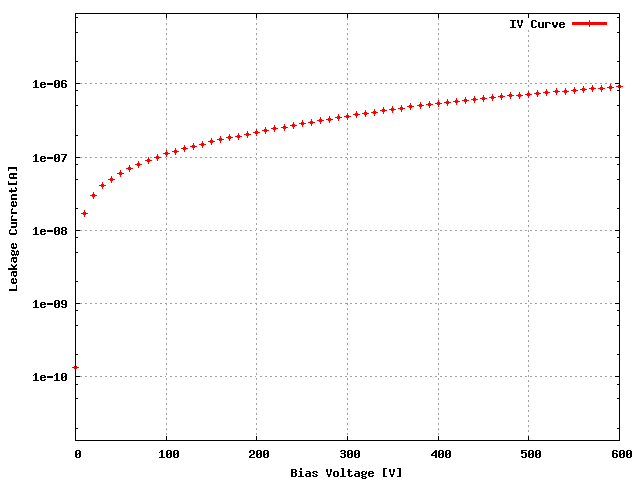

Sensor: S_1x5L_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 20D

ROC1 KFNG13T 11A

ROC2 KFNG13T 31D

ROC3 KFNG13T 11B

ROC4 KFNG13T 11C

ROC	ROC wafer	Label
ROC0	KFNG13T	20D
ROC1	KFNG13T	11A
ROC2	KFNG13T	31D
ROC3	KFNG13T	11B
ROC4	KFNG13T	11C

Depletion Voltage is -54 and suggested operational voltage is -94

Ibias_DAC, Ibias_DAC Data 154 172 174 160 156

Vana, VanaData 134 144 133 144 157

CalDelData and plots 84 70 80 68 77

VthrCompData and plots 85 90 76 85 90

TestDdata ,TestD Plots 0 1 1 7 0

LightData ,Light Plots 1 1 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

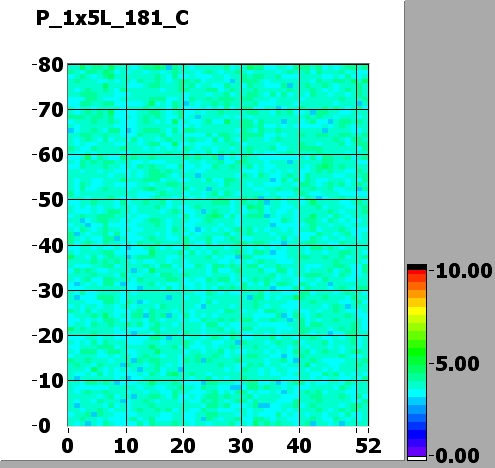

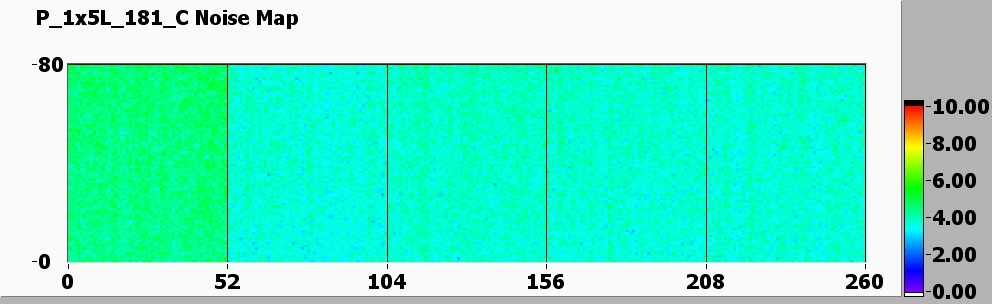

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	135	95	110	90	95
Vsf	140	145	140	145	155
VoffsetOp	85	110	105	110	105
VIbias_PH	105	100	100	100	100

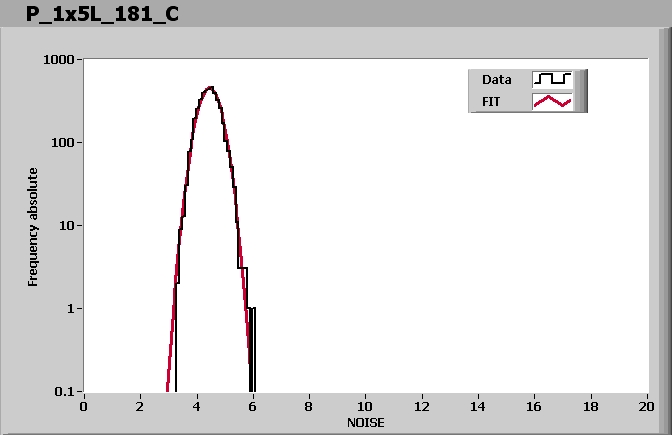

ROC0 NOISE			MEAN = 4.445966 SIGMA = 0.366039
ROC1 NOISE			MEAN = 3.643489 SIGMA = 0.290706
ROC2 NOISE			MEAN = 3.785889 SIGMA = 0.297617

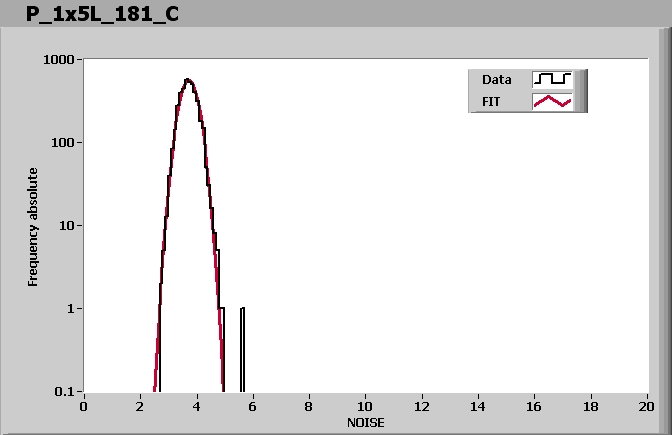

ROC3 NOISE			MEAN = 3.716080 SIGMA = 0.294902

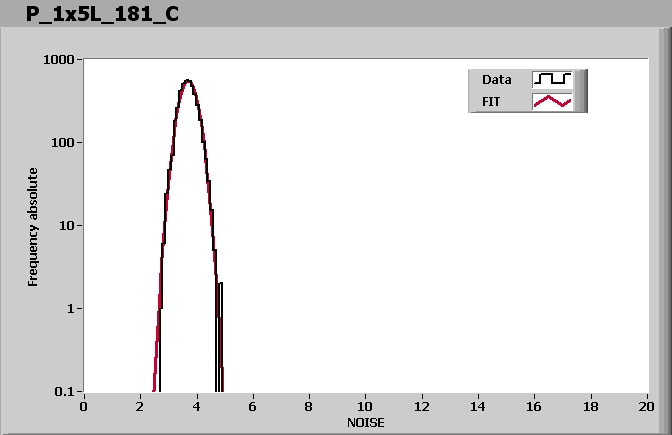

ROC4 NOISE			MEAN = 3.694783 SIGMA = 0.296212

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 5:09 PM

Ibias_DAC, Ibias_DAC Data	154	172	174	160	156
Vana, VanaData	134	144	133	144	157
CalDelData and plots	84	70	80	68	77
VthrCompData and plots	85	90	76	85	90
TestDdata ,TestD Plots	0	1	1	7	0
LightData ,Light Plots	1	1	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
