P_1x5L_181_C-6

Production testing

Date:5/22/2007

Operator: Gino Bolla

start testing time:3:18 PM

Sensor: S_1x5L_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KFNG13T20D
ROC1KFNG13T11A
ROC2KFNG13T31D
ROC3KFNG13T11B
ROC4KFNG13T11C

Depletion Voltage is -54 and suggested operational voltage is -94
Ibias_DAC, Ibias_DAC Data 154 172 174 160 156
Vana, VanaData 135 144 133 144 157
CalDelData and plots8470806877
VthrCompData and plots8690768590
TestDdata ,TestD Plots01140
LightData ,Light Plots11100
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe130951159095
Vsf140145140145155
VoffsetOp90110105110105
VIbias_PH95100100100100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.062412

SIGMA = 0.321633
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 3.624080

SIGMA = 0.305474

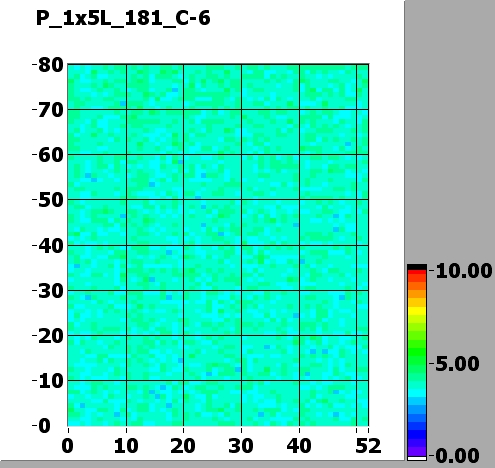

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 3.763529

SIGMA = 0.294191

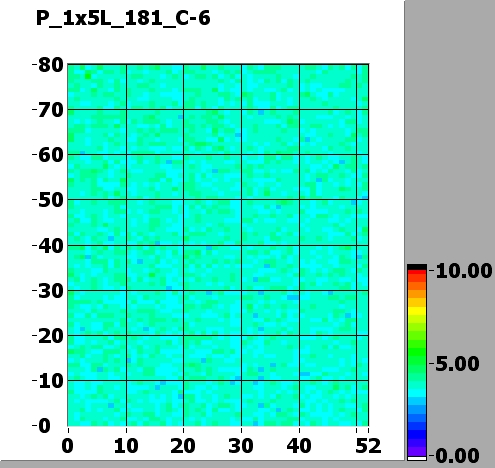

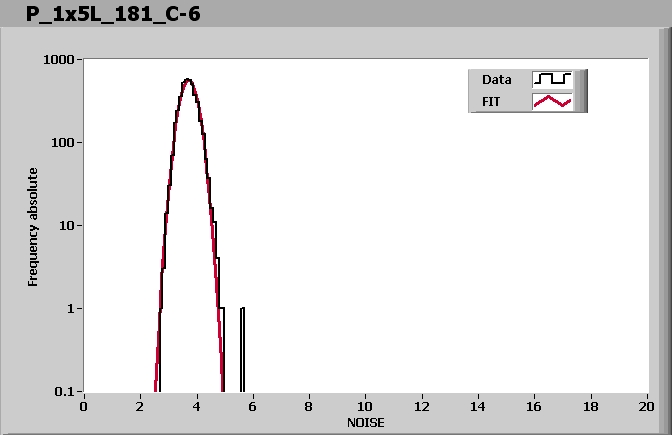

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 3.711062

SIGMA = 0.288638
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 3.708338

SIGMA = 0.302580

Comment (if any):

This Device have been tested 6Times prior to this one and here are the links to the previous tests:

P_1x5L_181_C-1.html,

P_1x5L_181_C-2.html,

P_1x5L_181_C-3.html,

P_1x5L_181_C-4.html,

P_1x5L_181_C-5.html,

P_1x5L_181_C.html,

End testing time: 3:41 PM
