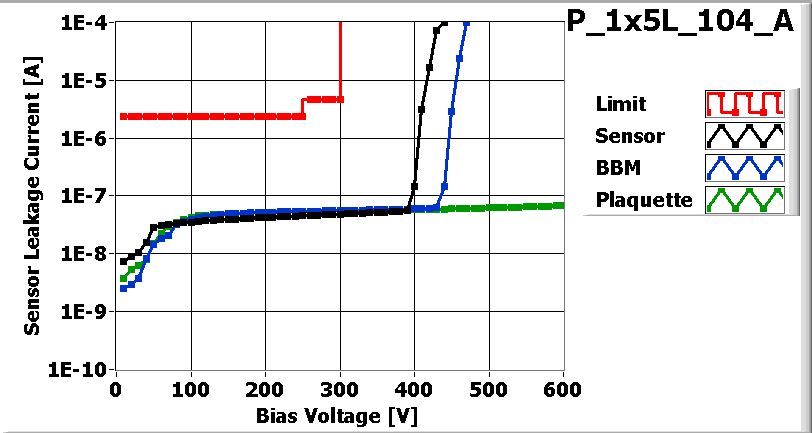

![[IMAGE] of](P_1x5L_104_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_104_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/9/2007
| Part | ID |
|---|---|
| BBM | BBM_104-1x5 |
| VHDI | 1x5L_243 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 57B |
| ROC1 | W33_XC4K5LT | 57A |
| ROC2 | W33_XC4K5LT | 56C |
| ROC3 | W33_XC4K5LT | 56A |
| ROC4 | W33_XC4K5LT | 55D |
Inspected by Lockwood Gale on date 2/14/2007
| LR_dev | 0.061 |
| LL_dev | 0.028 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/14/2007 by Lockwood Gale
P_1x5L_104_Aon 2/16/2007 1:08 PM
P_1x5L_104_Aon 2/16/2007 1:08 PM
PLAQUETTE TESTED on 2007-02-16 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 132 | 140 | 140 | 142 | 140 | |
| Vana | 131 | 141 | 140 | 113 | 127 | |
| Cal_Del | 99 | 82 | 82 | 76 | 83 | |
| Vthrs_Comp | 79 | 72 | 84 | 68 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

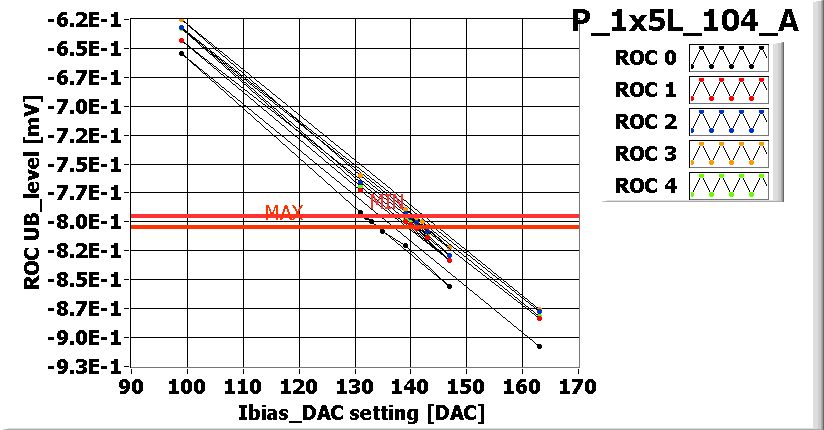

![[IMAGE] of](P_1x5L_104_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

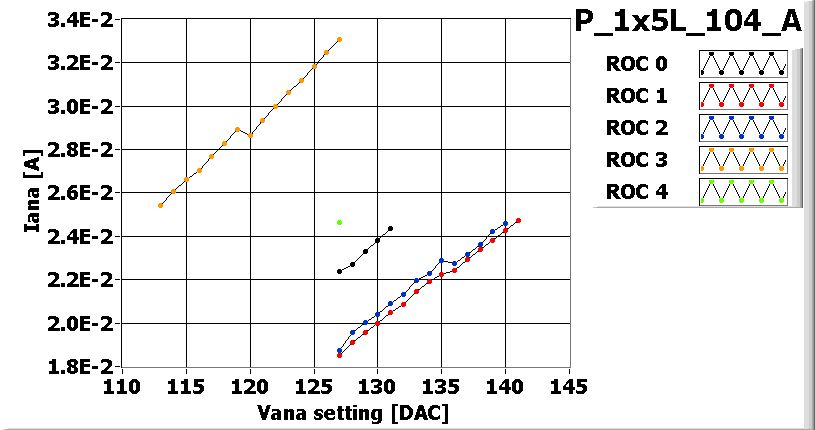

![[IMAGE] of](P_1x5L_104_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_104_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

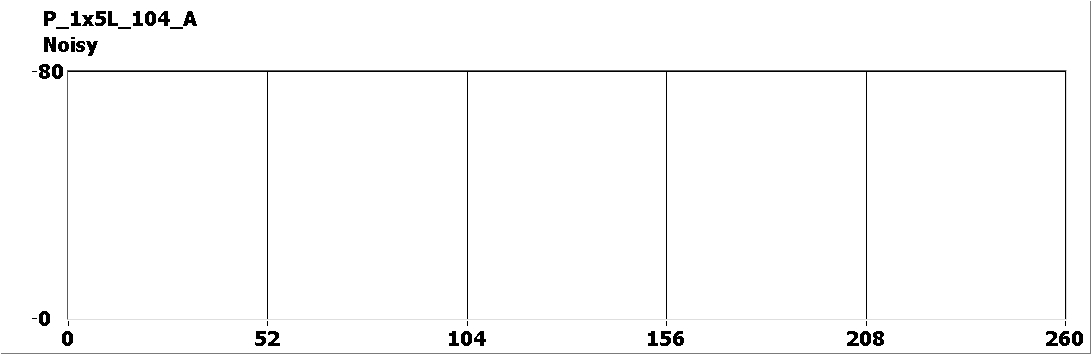

![[IMAGE] of](P_1x5L_104_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

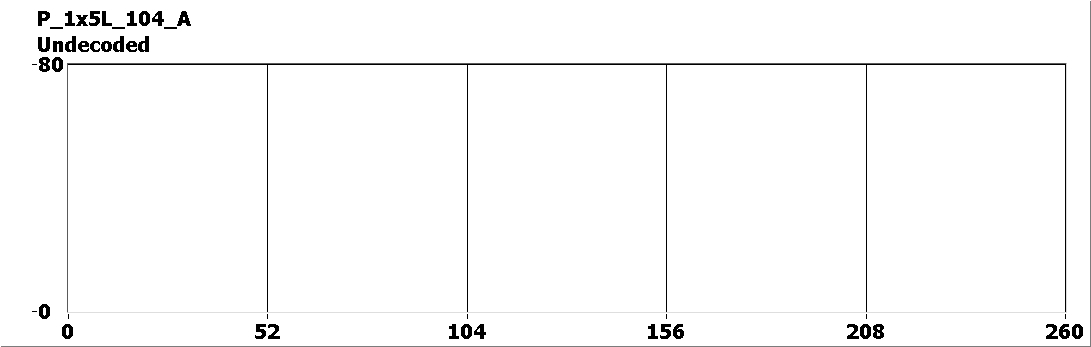

![[IMAGE] of](P_1x5L_104_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

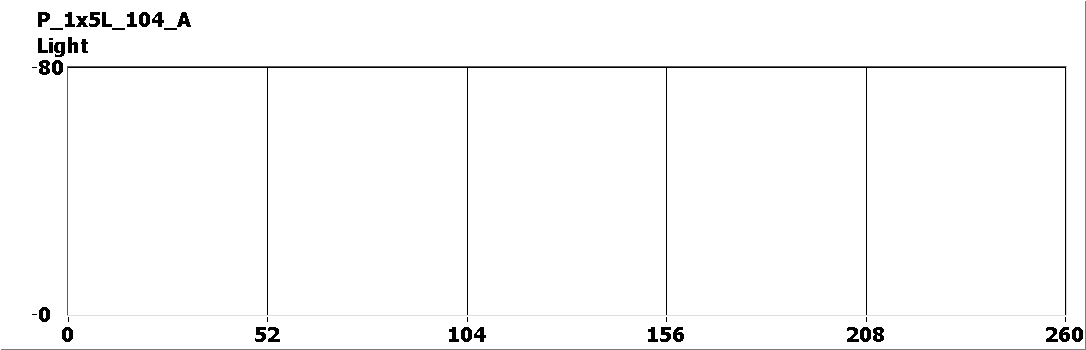

![[IMAGE] of](P_1x5L_104_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 90 | 120 | 120 | 145 |
| Vsf | 140 | 145 | 140 | 135 | 140 |
| VoffsetOp | 80 | 110 | 85 | 65 | 70 |
| VIbias_PH | 105 | 100 | 100 | 105 | 100 |

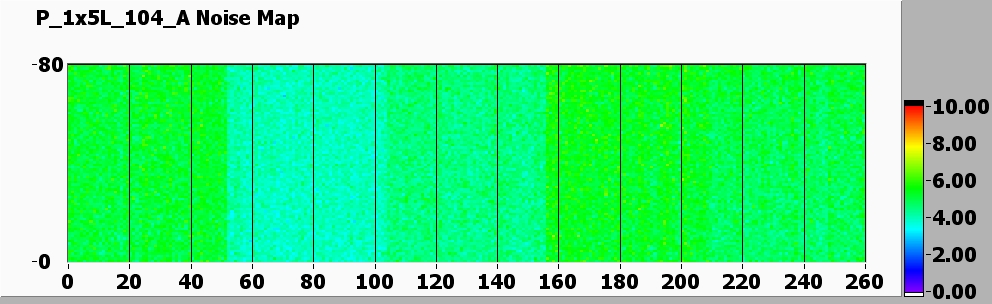

Noise MAP
![[IMAGE] of](P_1x5L_104_A-100-noise.jpg)

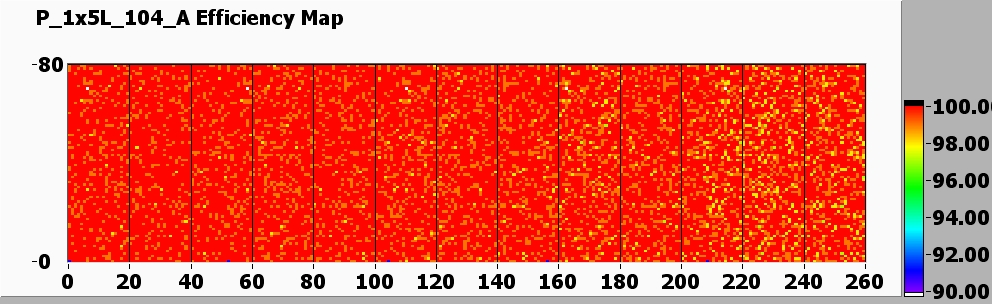

Efficiency MAP
![[IMAGE] of](P_1x5L_104_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 110 | 90 | 120 | 120 | 145 |
| Vsf | 140 | 145 | 140 | 135 | 140 |
| VoffsetOp | 80 | 110 | 85 | 65 | 70 |
| VIbias_PH | 105 | 100 | 100 | 105 | 100 |
PLAQUETTE READY TO BE POTTED
