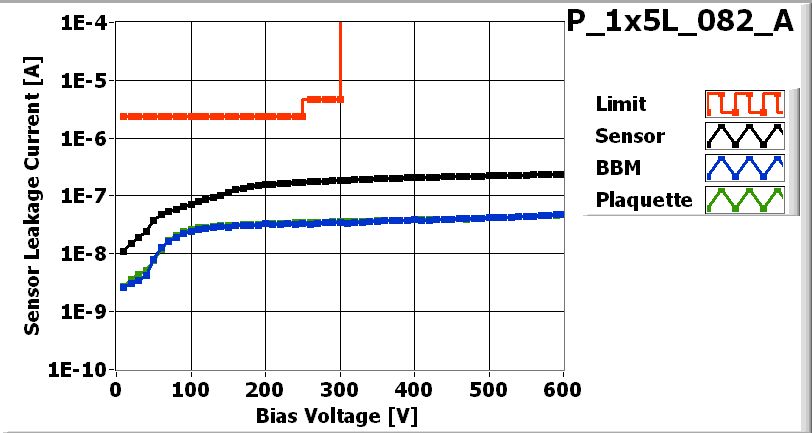

![[IMAGE] of](P_1x5L_082_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

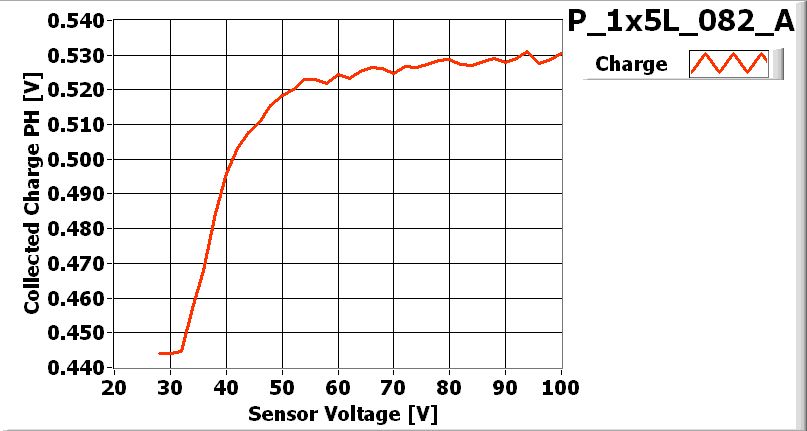

![[IMAGE] of](P_1x5L_082_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/30/2007
| Part | ID |
|---|---|
| BBM | BBM_082-1x5 |
| VHDI | 1x5L_213 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 56B |
| ROC1 | W32_XA4K5NT | 56A |
| ROC2 | W32_XA4K5NT | 55D |
| ROC3 | W28_X54K5TT | 05C |
| ROC4 | W32_XA4K5NT | 55B |
Inspected by Arndt Kirk on date 1/31/2007
| LR_dev | 0.058 |
| LL_dev | 0.053 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 1/31/2007 by Arndt Kirk
P_1x5L_082_Aon 1/31/2007 2:20 PM
P_1x5L_082_A-1on 1/31/2007 2:31 PM
P_1x5L_082_A-1on 1/31/2007 2:31 PM
PLAQUETTE TESTED on 2007-01-31 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 140 | 142 | 152 | 140 | 138 | |
| Vana | 124 | 129 | 132 | 147 | 138 | |
| Cal_Del | 85 | 77 | 67 | 92 | 70 | |
| Vthrs_Comp | 68 | 80 | 89 | 80 | 89 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

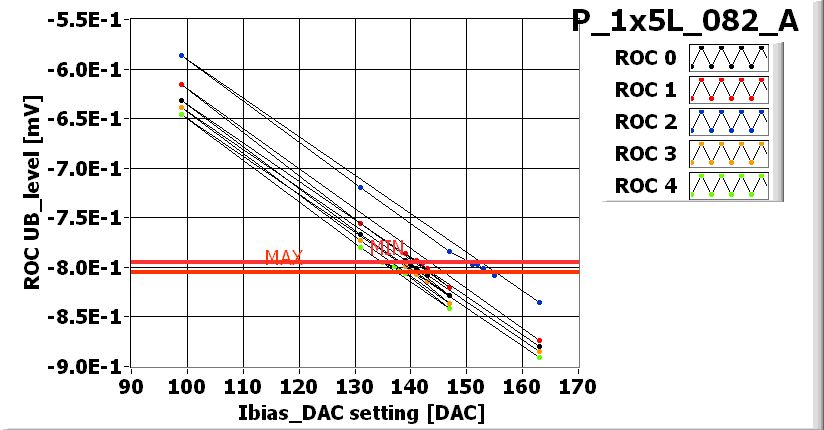

![[IMAGE] of](P_1x5L_082_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

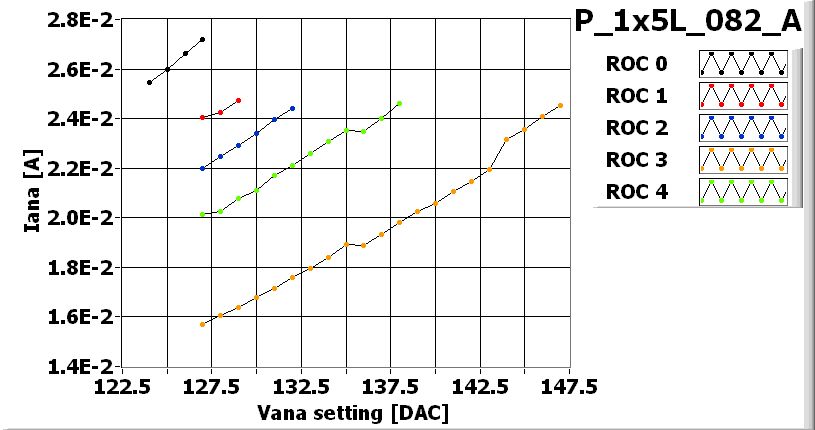

![[IMAGE] of](P_1x5L_082_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_082_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_082_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_082_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_082_Ano-bump-light.jpg) |
LIGHT_XML-File |

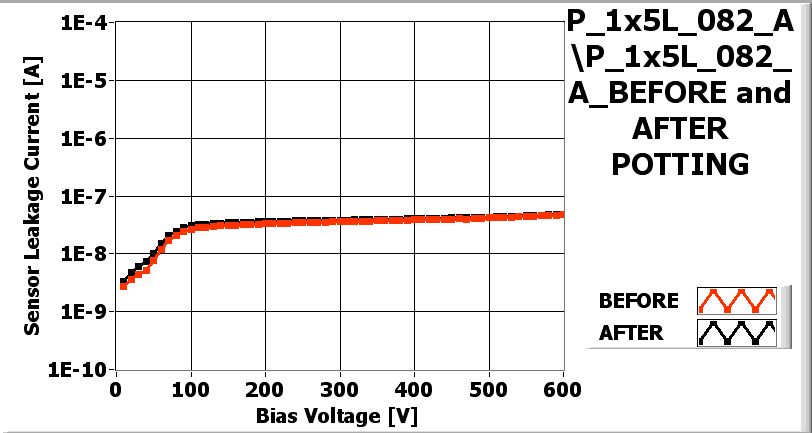

PLAQUETTE READY TO BE POTTED
