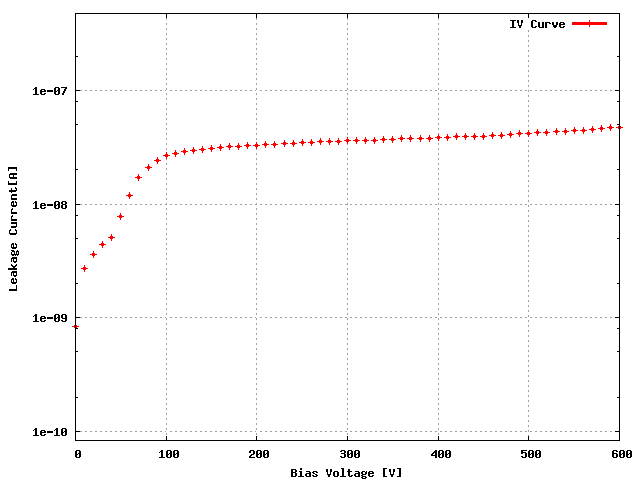

Sensor: S_1x5L_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 56B |
| ROC1 | W32_XA4K5NT | 56A |
| ROC2 | W32_XA4K5NT | 55D |
| ROC3 | W28_X54K5TT | 05C |
| ROC4 | W32_XA4K5NT | 55B |
| Ibias_DAC, Ibias_DAC Data | 140 | 142 | 152 | 140 | 138 |
| Vana, VanaData | 124 | 129 | 132 | 147 | 138 |
| CalDelData and plots | 85 | 77 | 67 | 92 | 70 |
| VthrCompData and plots | 68 | 80 | 89 | 80 | 89 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 2:50 PM
