P_1x5L_067

P_1x5L_067_A

Parts committed by Bolla Gino on date 2/8/2007

Part	ID
BBM	BBM_067-1x5
VHDI	1x5L_242

ROC ROC wafer Label

ROC0 W29_X64K5ST 04C

ROC1 W29_X64K5ST 04B

ROC2 W29_X64K5ST 04A

ROC3 W29_X64K5ST 03D

ROC4 W29_X64K5ST 03C

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	04C
ROC1	W29_X64K5ST	04B
ROC2	W29_X64K5ST	04A
ROC3	W29_X64K5ST	03D
ROC4	W29_X64K5ST	03C

Inspected by Lockwood Gale on date 2/15/2007

LR_dev 0.014

LL_dev 0.049

FINAL COMMENT by Lockwood Gale No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 2/15/2007 by Lockwood Gale

P_1x5L_067_Aon 2/15/2007 1:41 PM

PLAQUETTE TESTED on 2007-02-15 by Gino Bolla

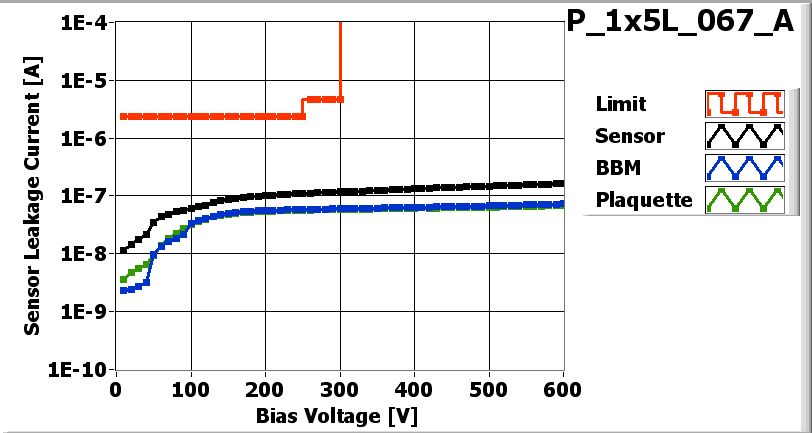

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4
Ibias_DAC	128	132	136	128	122
Vana	128	122	117	133	120
Cal_Del	80	73	75	77	75
Vthrs_Comp	66	80	76	62	59
Unbumped	0	0	0	0	1
Dead	0	0	0	0	0
Noisy	0	0	0	0	0
Undecoded	0	0	0	0	0
Total BAD	0	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

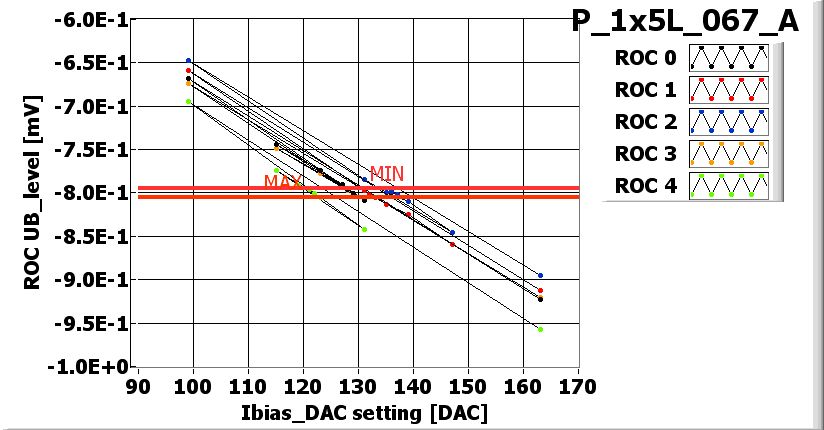

	I_BIAS_DAC_XML-File

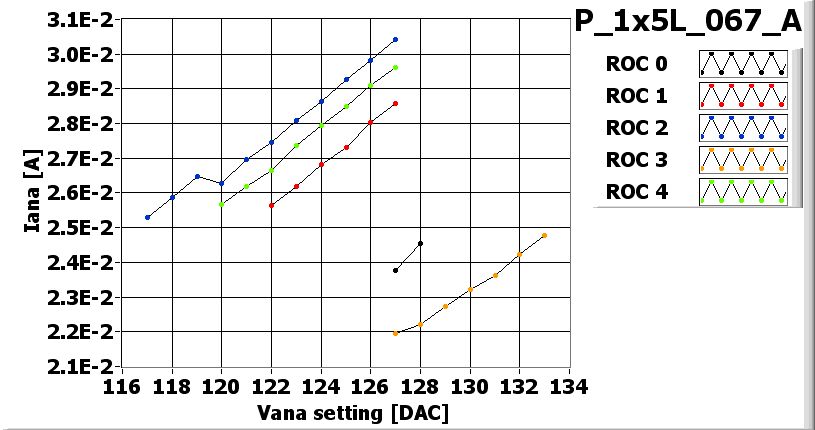

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	110	155	175	110	115
Vsf	135	135	140	135	135
VoffsetOp	80	75	90	80	75
VIbias_PH	95	100	105	100	100

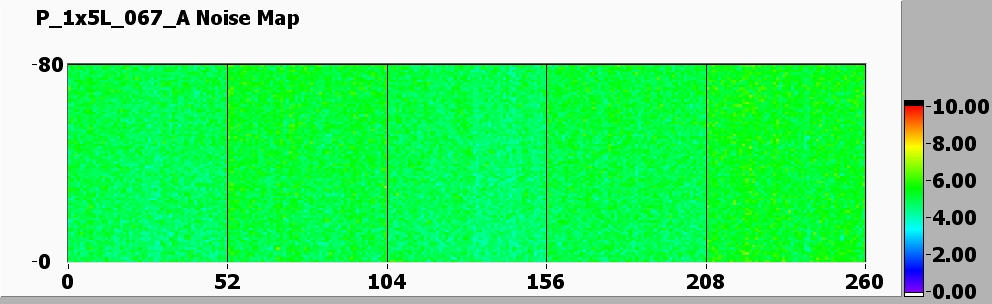

Noise MAP

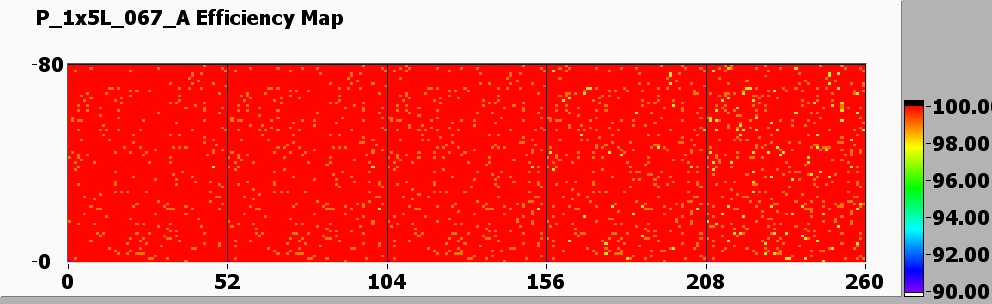

Efficiency MAP

ROC0 NOISE			MEAN = 4.855155 SIGMA = 0.385347

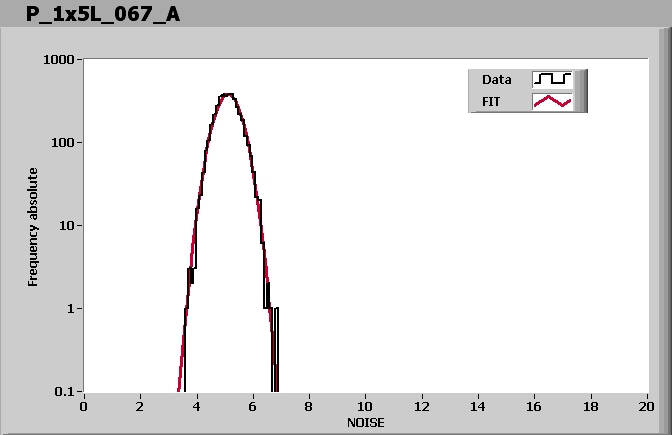

ROC1 NOISE			MEAN = 5.105085 SIGMA = 0.429730
ROC2 NOISE			MEAN = 4.784585 SIGMA = 0.376767
ROC3 NOISE			MEAN = 4.989022 SIGMA = 0.379445

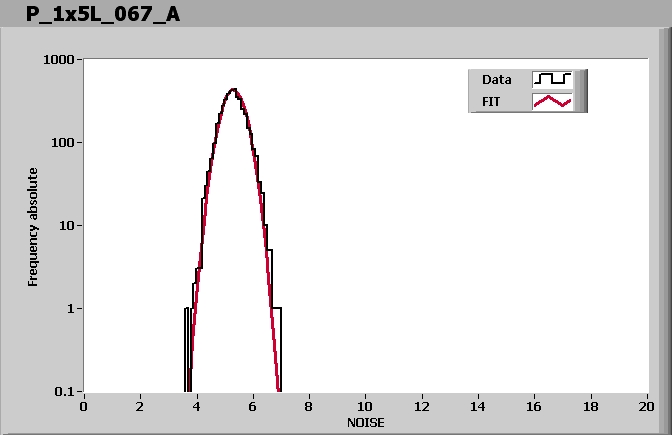

ROC4 NOISE			MEAN = 5.294337 SIGMA = 0.386763

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/19/2007 by Arndt Kirk

P_1x5L_067_A-1on 2/19/2007 3:13 PM

P_1x5L_067_A-1on 2/19/2007 3:13 PM AFTER POTTING

BAD CHANNELS COMPARISON XML-files/NOW

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 0/0 0/0

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/0 0/0

ROC3 0/0 0/0 0/0 0/0 0/0

ROC4 0/0 0/0 0/0 0/5 1/1

Plaquette Ready for SHIPPING

Shipped on date 2007-02-20

Plaquette assigned to panel P4R_016
