P_1x5L_067

P_1x5L_067_A

Production testing

Date:2/15/2007

Operator: Gino Bolla

start testing time:1:41 PM

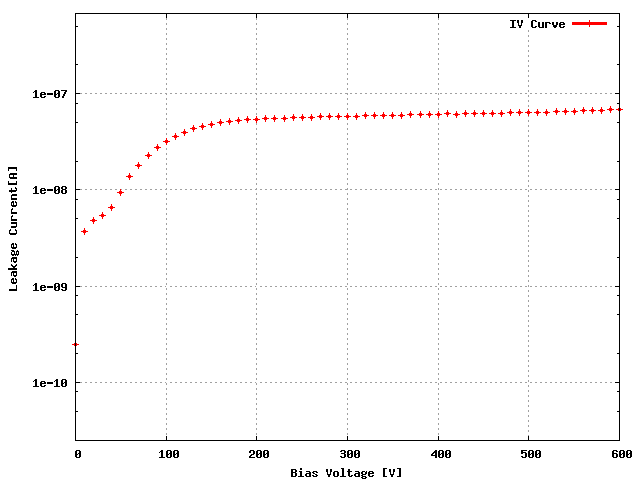

Sensor: S_1x5L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W29_X64K5ST 04C

ROC1 W29_X64K5ST 04B

ROC2 W29_X64K5ST 04A

ROC3 W29_X64K5ST 03D

ROC4 W29_X64K5ST 03C

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	04C
ROC1	W29_X64K5ST	04B
ROC2	W29_X64K5ST	04A
ROC3	W29_X64K5ST	03D
ROC4	W29_X64K5ST	03C

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 128 132 136 128 122

Vana, VanaData 128 122 117 133 120

CalDelData and plots 80 73 75 77 75

VthrCompData and plots 66 80 76 62 59

TestDdata ,TestD Plots 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

EXTRA DACs for NOISE

VHldDe	110	155	175	110	115
Vsf	135	135	140	135	135
VoffsetOp	80	75	90	80	75
VIbias_PH	95	100	105	100	100

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 4.855155 SIGMA = 0.385347
ROC1 NOISE			MEAN = 5.105085 SIGMA = 0.429730
ROC2 NOISE			MEAN = 4.784585 SIGMA = 0.376767
ROC3 NOISE			MEAN = 4.989022 SIGMA = 0.379445
ROC4 NOISE			MEAN = 5.294337 SIGMA = 0.386763

Comment (if any): GOOD

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:01 PM

Ibias_DAC, Ibias_DAC Data	128	132	136	128	122
Vana, VanaData	128	122	117	133	120
CalDelData and plots	80	73	75	77	75
VthrCompData and plots	66	80	76	62	59
TestDdata ,TestD Plots	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
