P_1x5L_007

P_1x5L_007_A-4

Production testing

Date:2/27/2008

Operator: Gino Bolla

start testing time:8:49 AM

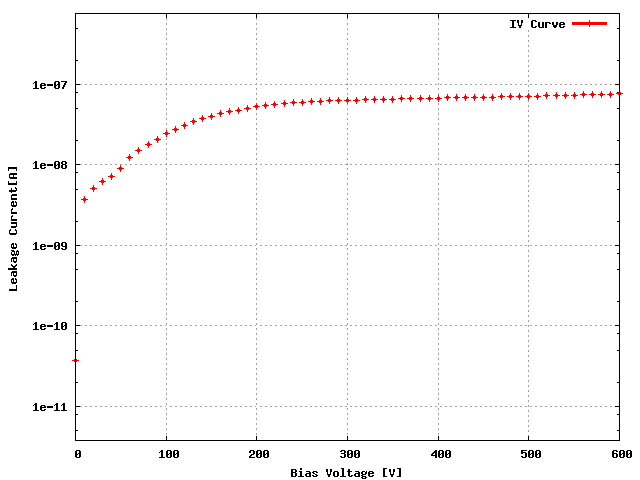

Sensor: S_1x5L_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W55_D3LQE4T 03A

ROC1 W55_D3LQE4T 12B

ROC2 W55_D3LQE4T 12A

ROC3 W55_D3LQE4T 43D

ROC4 W55_D3LQE4T 43C

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	03A
ROC1	W55_D3LQE4T	12B
ROC2	W55_D3LQE4T	12A
ROC3	W55_D3LQE4T	43D
ROC4	W55_D3LQE4T	43C

Depletion Voltage is -54 and suggested operational voltage is -94

Ibias_DAC, Ibias_DAC Data 162 150 148 174 170

Vana, VanaData 142 161 151 157 137

CalDelData and plots 90 87 89 81 86

VthrCompData and plots 83 94 91 90 90

TestDdata ,TestD Plots 0 0 0 1 0

LightData ,Light Plots 0 31 144 36 40

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD BAD GOOD GOOD

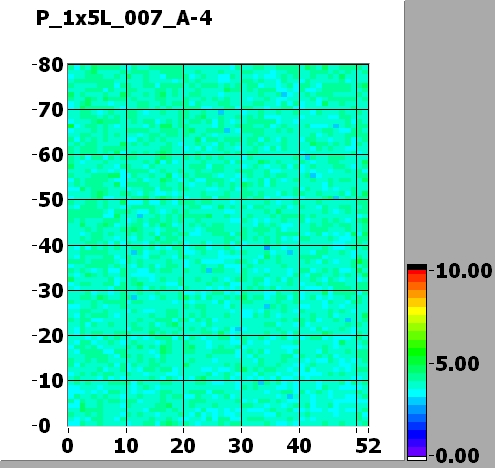

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	80	100	100	100	110
Vsf	140	160	150	150	140
VoffsetOp	100	95	115	130	115
VIbias_PH	105	100	95	100	100

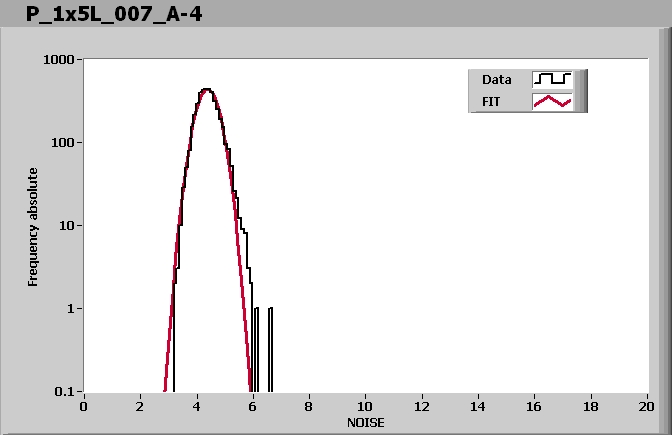

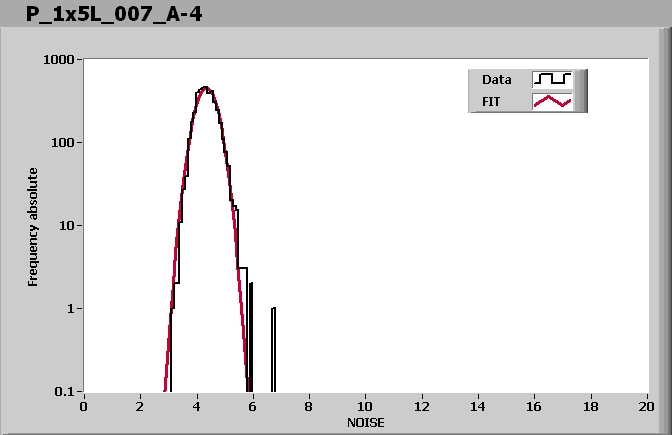

ROC0 NOISE			MEAN = 4.333710 SIGMA = 0.357456
ROC1 NOISE			MEAN = 4.379032 SIGMA = 0.369311

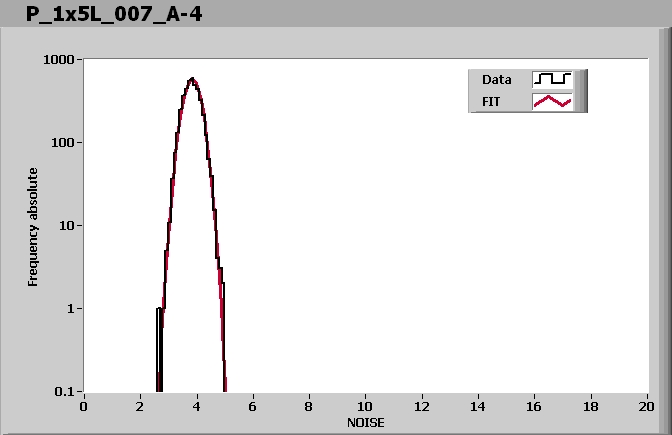

ROC2 NOISE			MEAN = 3.832584 SIGMA = 0.287184

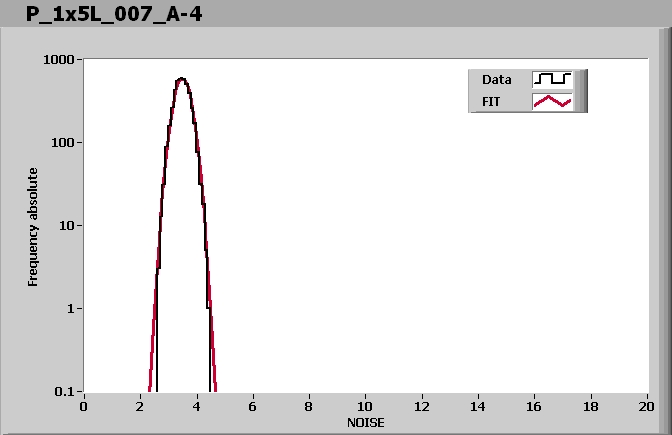

ROC3 NOISE			MEAN = 3.487382 SIGMA = 0.279260
ROC4 NOISE			MEAN = 3.783927 SIGMA = 0.285672

Comment (if any):

This Device have been tested 4Times prior to this one and here are the links to the previous tests:

End testing time: 9:14 AM

Ibias_DAC, Ibias_DAC Data	162	150	148	174	170
Vana, VanaData	142	161	151	157	137
CalDelData and plots	90	87	89	81	86
VthrCompData and plots	83	94	91	90	90
TestDdata ,TestD Plots	0	0	0	1	0
LightData ,Light Plots	0	31	144	36	40
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	BAD	GOOD	GOOD
