| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_182_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 2/1/2007
| Part | ID |
|---|---|
| BBM | BBM_182-1x2T |
| VHDI | 1x2R_267 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 11A |
| ROC1 | W28_X54K5TT | 29B |
Inspected by Lockwood Gale on date 2/5/2007
| LR_dev | 0.056 |
| LL_dev | 0.065 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/5/2007 by Lockwood Gale
P_1x2R_182_Aon 2/6/2007 9:16 AM
P_1x2R_182_Aon 2/6/2007 9:16 AM
PLAQUETTE TESTED on 2007-02-06 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 124 | 130 | |
| Vana | 128 | 128 | |
| Cal_Del | 78 | 79 | |
| Vthrs_Comp | 77 | 82 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

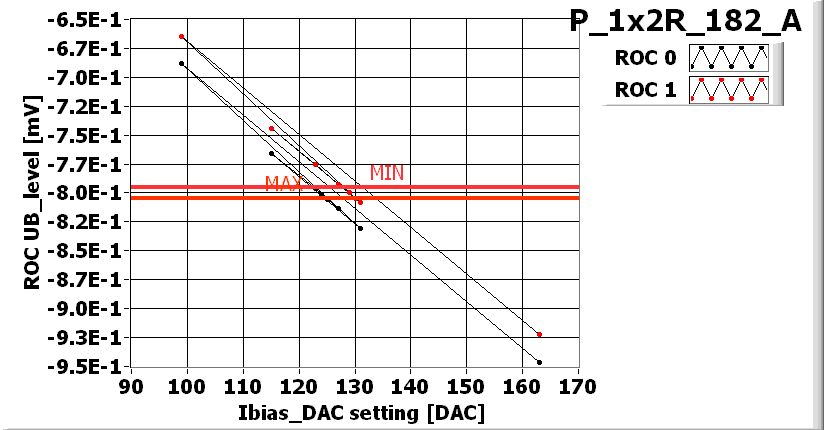

![[IMAGE] of](P_1x2R_182_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_182_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_182_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_182_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_182_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_182_Ano-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_1x2R_182_A-1-100-noise.jpg)

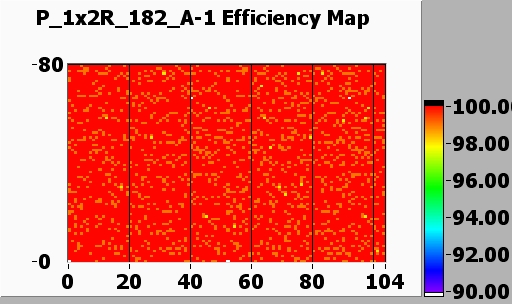

Efficiency MAP
![[IMAGE] of](P_1x2R_182_A-1-100-efficiency.jpg)

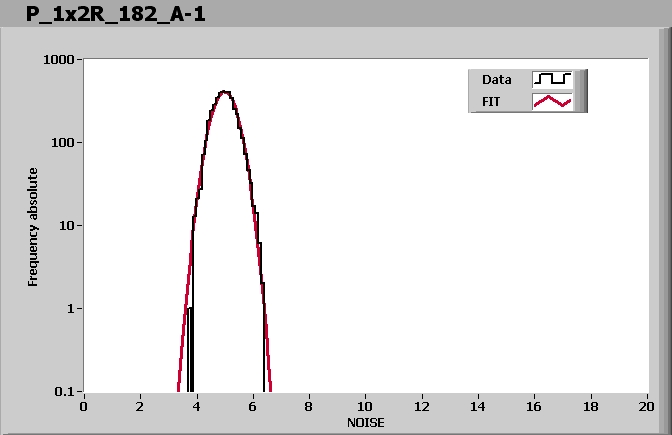

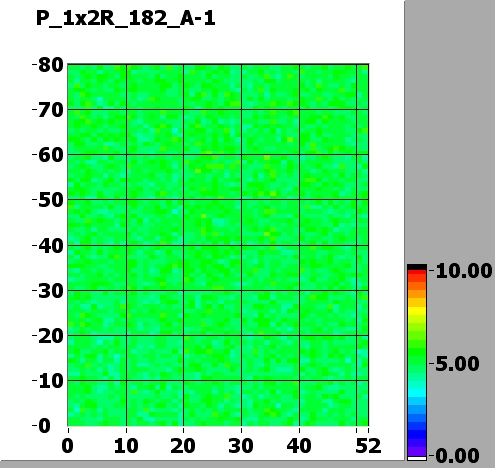

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_182_A-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_182_A-1-100-noise-ROC0-HISTO.jpg) | MEAN = 4.984634SIGMA = 0.403124 |

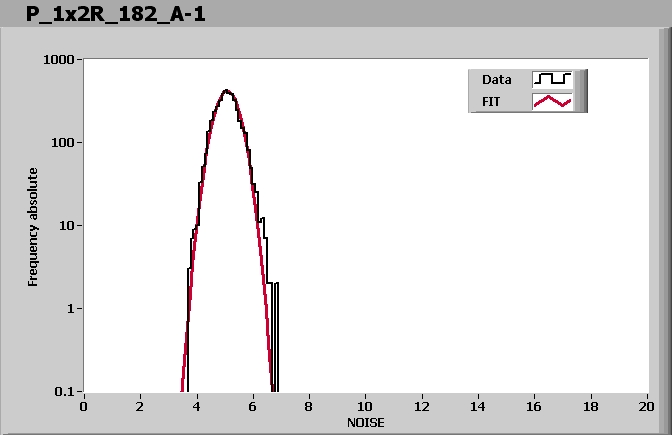

| ROC1 NOISE | ![[IMAGE] of](P_1x2R_182_A-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_182_A-1-100-noise-ROC1-HISTO.jpg) | MEAN = 5.075475SIGMA = 0.393917 |
PLAQUETTE READY TO BE POTTED
