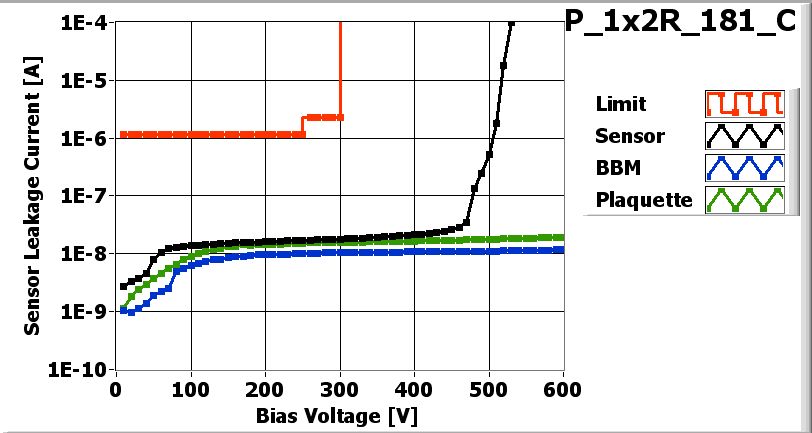

| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_181_C_LASER.jpg)

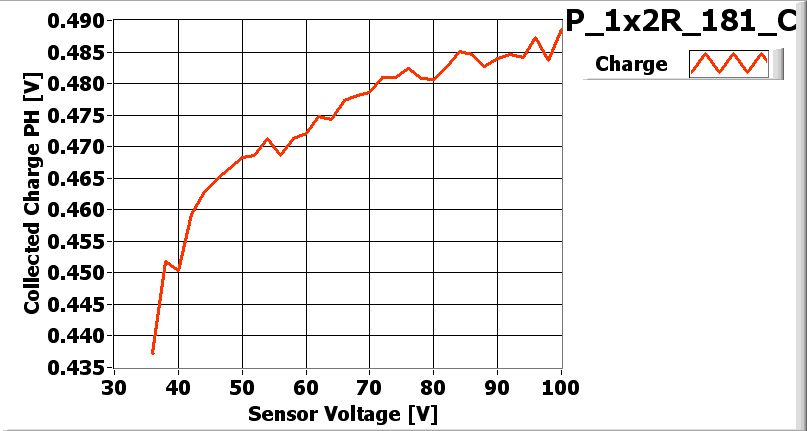

| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_181-1x2T |
| VHDI | 1x2R_285 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 49D |
| ROC1 | KBNG0QT | 28C |
Inspected by Lockwood Gale on date 5/16/2007
Inspected by Lockwood Gale on date 5/16/2007
| LR_dev | 0.036 |
| LL_dev | 0.029 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/16/2007 by Lockwood Gale
P_1x2R_181_Con 5/16/2007 12:09 PM
P_1x2R_181_Con 5/16/2007 12:09 PM
PLAQUETTE encapsulated on 5/17/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/17/2007 by Perera Rajiv
P_1x2R_181_C-1on 5/18/2007 10:16 AM
P_1x2R_181_C-1on 5/18/2007 10:16 AM
P_1x2R_181_C-2on 5/21/2007 8:49 AM
P_1x2R_181_C-2on 5/21/2007 8:49 AM
PLAQUETTE TESTED on 2007-05-21 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 146 | 154 | |
| Vana | 138 | 144 | |
| Cal_Del | 89 | 70 | |
| Vthrs_Comp | 83 | 86 | |
| Unbumped | 44 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 44 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_181_C_Ibias-dac.jpg) |

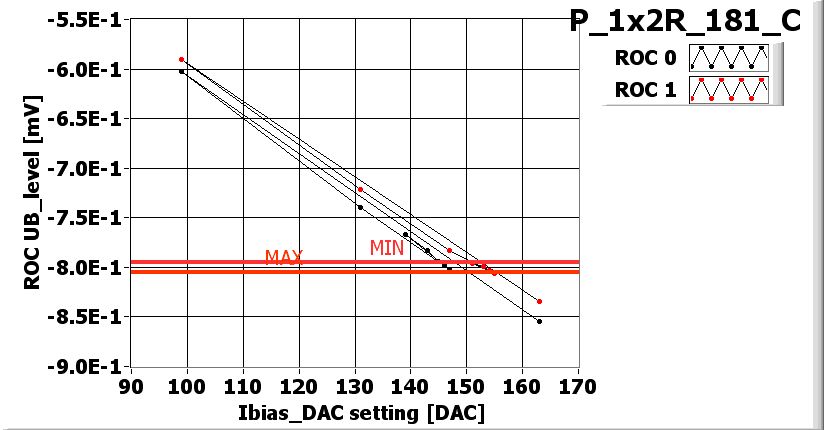

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_181_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_181_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_181_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_181_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_181_Cno-bump-light.jpg) |

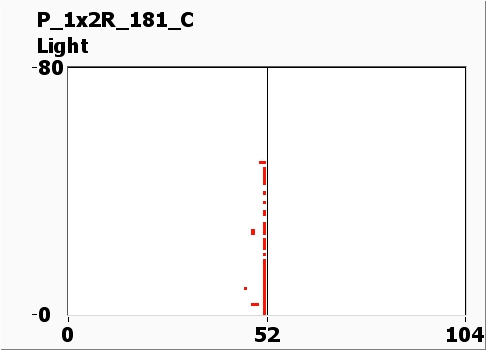

LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 90 |
| Vsf | 140 | 145 |
| VoffsetOp | 75 | 95 |
| VIbias_PH | 105 | 95 |

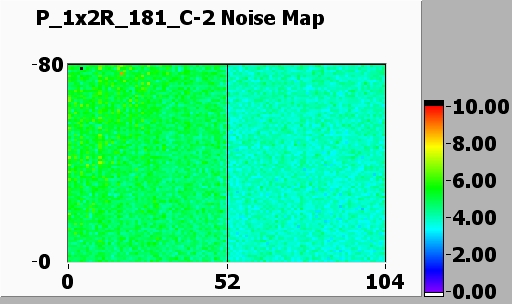

Noise MAP at VMAX
![[IMAGE] of](P_1x2R_181_C-2-580-noise.jpg)

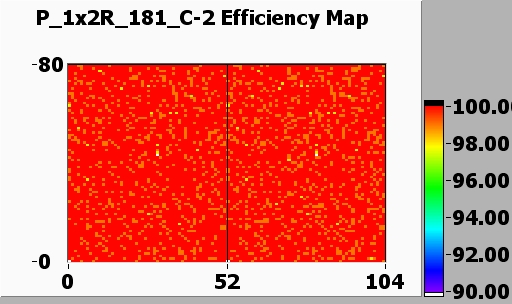

Efficiency MAP
![[IMAGE] of](P_1x2R_181_C-2-580-efficiency.jpg)

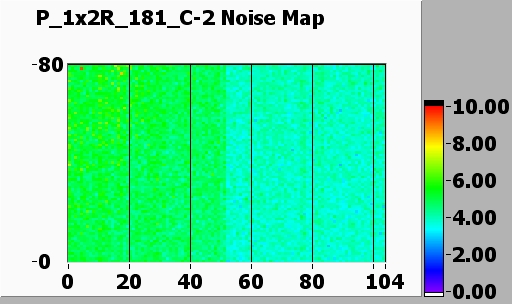

Noise MAP at -200 V
![[IMAGE] of](P_1x2R_181_C-2-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_181_C-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
