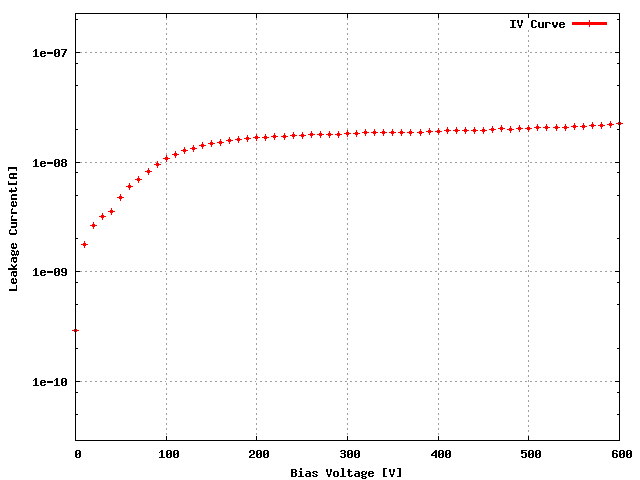

Sensor: S_1x2R_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 49D |
| ROC1 | KBNG0QT | 28C |
| Ibias_DAC, Ibias_DAC Data | 146 | 152 |
| Vana, VanaData | 138 | 144 |
| CalDelData and plots | 89 | 70 |
| VthrCompData and plots | 83 | 86 | Depletion Voltage is -60 and suggested operational voltage is -100
| TestDdata ,TestD Plots | 2 | 0 |
| LightData ,Light Plots | 42 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | GOOD |

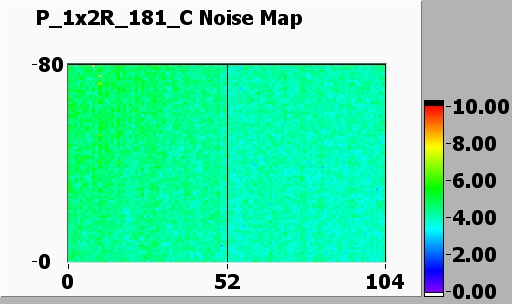

Noise MAP at VMAX
![[IMAGE] of](P_1x2R_181_C-580-noise.jpg)

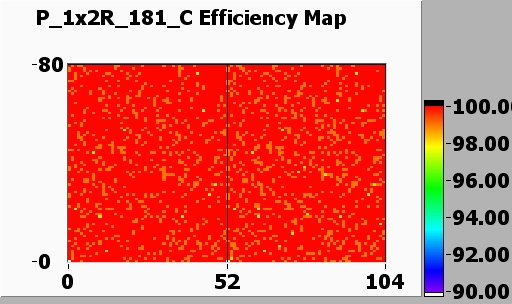

Efficiency MAP
![[IMAGE] of](P_1x2R_181_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 85 | 90 |
| Vsf | 140 | 145 |
| VoffsetOp | 80 | 95 |
| VIbias_PH | 95 | 100 |

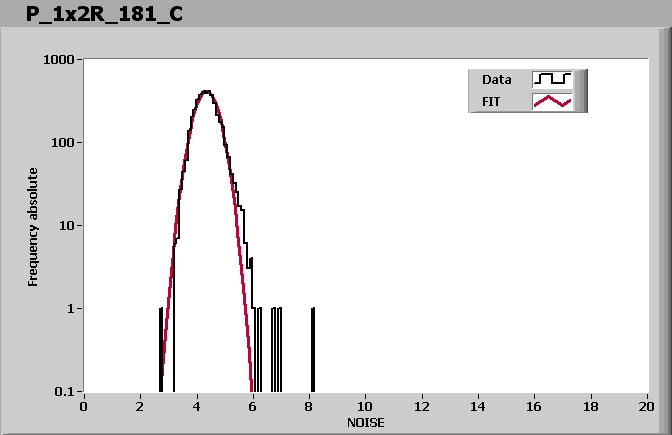

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_181_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_181_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.340006SIGMA = 0.396304 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_181_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_181_C-580-noise-ROC1-HISTO.jpg) | MEAN = 3.953385SIGMA = 0.318322 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:32 PM
