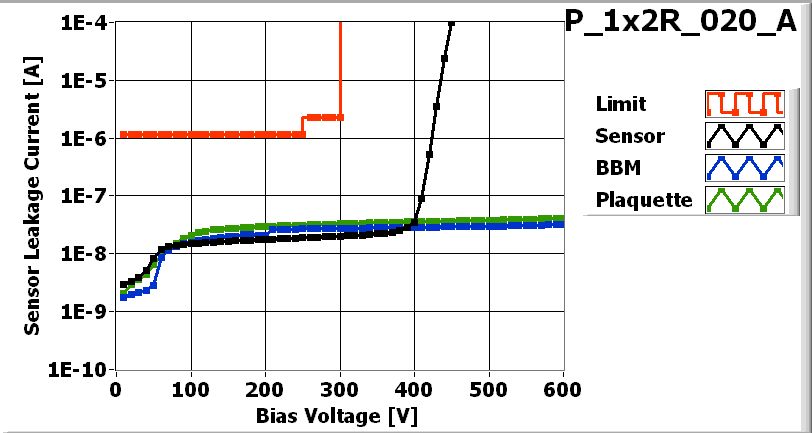

![[IMAGE] of](P_1x2R_020_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_020_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_020-1x2T |
| VHDI | 1x2R_282 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 22A |
| ROC1 | W49_D1LQG5T | 21D |
Inspected by Arndt Kirk on date 5/22/2007
| LR_dev | 0.066 |
| LL_dev | 0.053 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/22/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/22/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/22/2007 by Perera Rajiv
P_1x2R_020_Aon 5/24/2007 12:05 PM
P_1x2R_020_Aon 5/24/2007 12:05 PM
P_1x2R_020_A-1on 5/24/2007 2:24 PM
P_1x2R_020_A-1on 5/24/2007 2:24 PM
PLAQUETTE TESTED on 2007-05-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 154 | 144 | |
| Vana | 150 | 141 | |
| Cal_Del | 73 | 87 | |
| Vthrs_Comp | 92 | 91 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

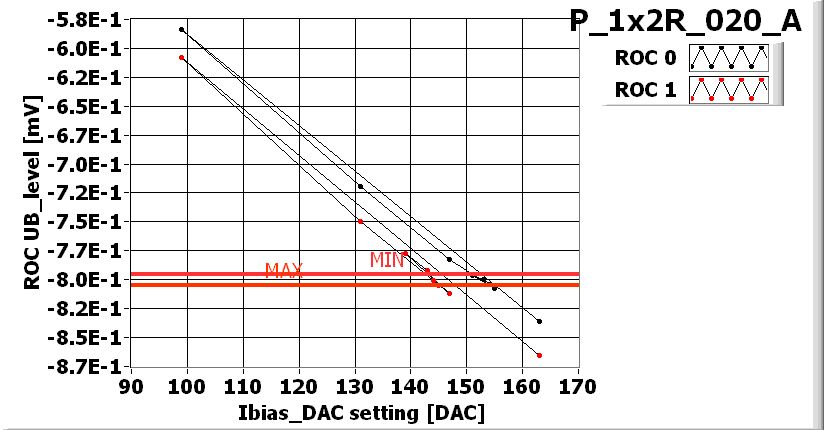

![[IMAGE] of](P_1x2R_020_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

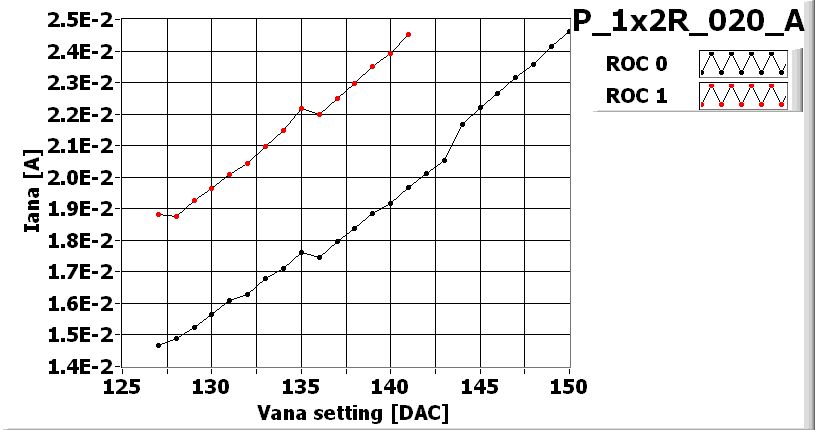

![[IMAGE] of](P_1x2R_020_A_Vana.jpg) |
VANA_XML-File |

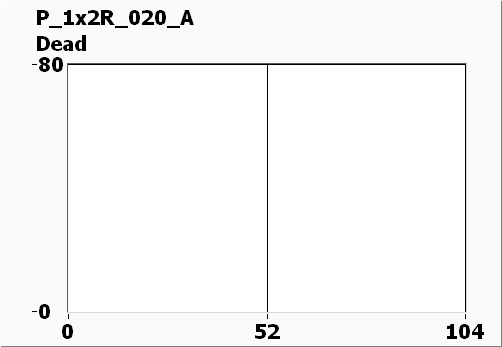

![[IMAGE] of](P_1x2R_020_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_020_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_020_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_020_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 |
| Vsf | 145 | 140 |
| VoffsetOp | 115 | 95 |
| VIbias_PH | 100 | 100 |

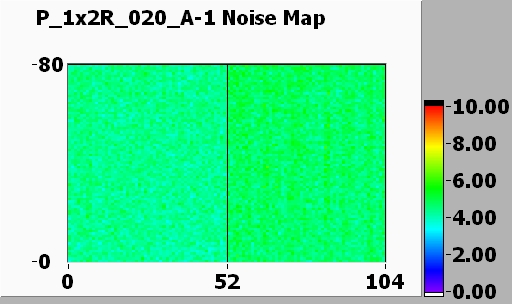

Noise MAP at VMAX
![[IMAGE] of](P_1x2R_020_A-1-580-noise.jpg)

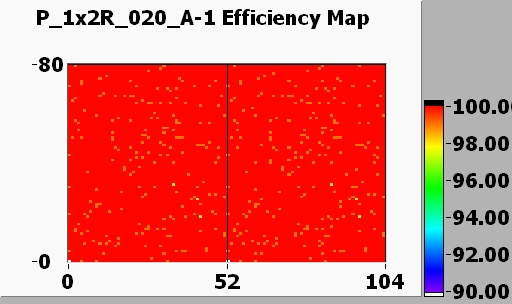

Efficiency MAP
![[IMAGE] of](P_1x2R_020_A-1-580-efficiency.jpg)

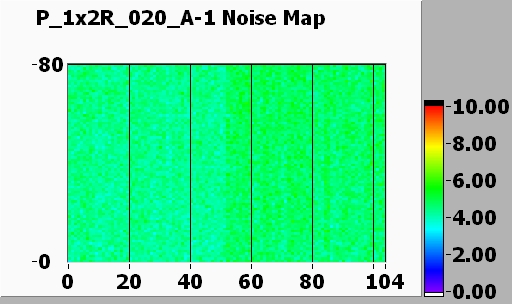

Noise MAP at -200 V
![[IMAGE] of](P_1x2R_020_A-1-200-noise.jpg)

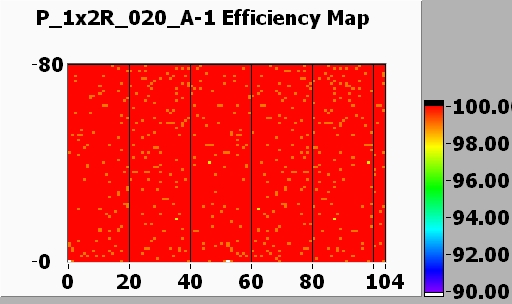

Efficiency MAP
![[IMAGE] of](P_1x2R_020_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
