Sensor: S_1x2R_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 22A |
| ROC1 | W49_D1LQG5T | 21D |
| Ibias_DAC, Ibias_DAC Data | 152 | 144 |
| Vana, VanaData | 150 | 141 |
| CalDelData and plots | 73 | 87 |
| VthrCompData and plots | 92 | 91 | Depletion Voltage is -70 and suggested operational voltage is -110
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_020_A-580-noise.jpg)

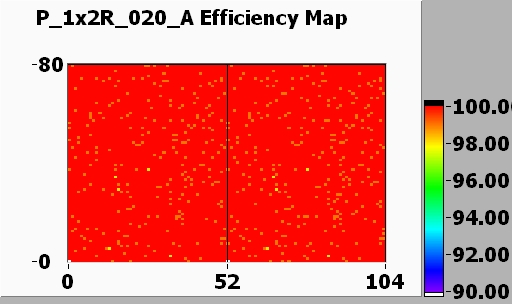

Efficiency MAP
![[IMAGE] of](P_1x2R_020_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 95 |
| Vsf | 150 | 140 |
| VoffsetOp | 115 | 95 |
| VIbias_PH | 100 | 105 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_020_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_020_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.287893SIGMA = 0.327150 |

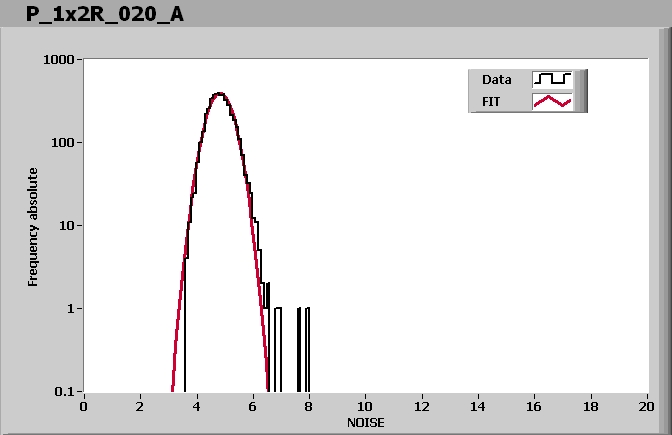

| ROC1 NOISE | ![[IMAGE] of](P_1x2R_020_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_020_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.823994SIGMA = 0.420276 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:27 PM
