P_1x2R_020_A-1

Production testing

Date:5/24/2007

Operator: Emily Grace

start testing time:2:24 PM

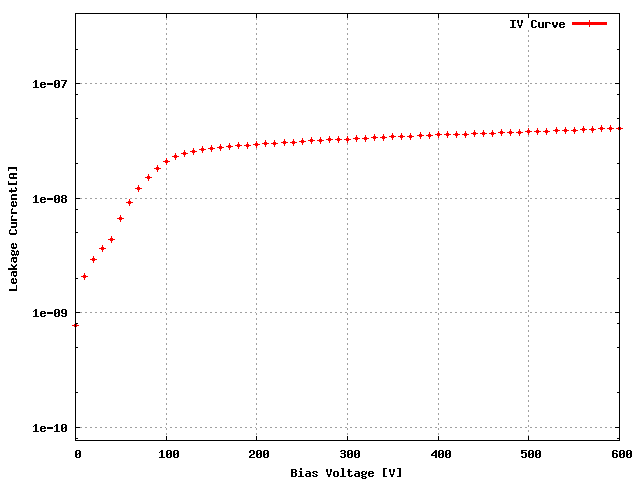

Sensor: S_1x2R_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W49_D1LQG5T22A
ROC1W49_D1LQG5T21D

Depletion Voltage is -40 and suggested operational voltage is -80
Ibias_DAC, Ibias_DAC Data 154 144
Vana, VanaData 150 141
CalDelData and plots7387
VthrCompData and plots9291
TestDdata ,TestD Plots00
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

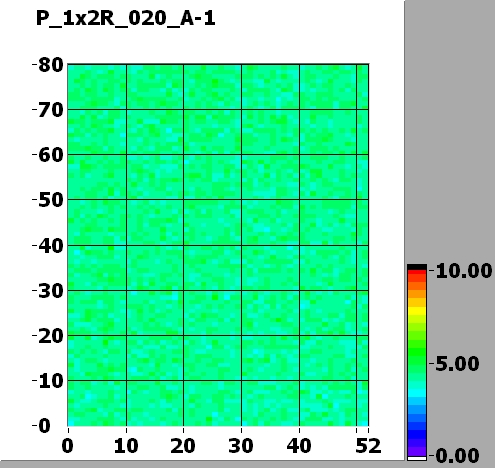

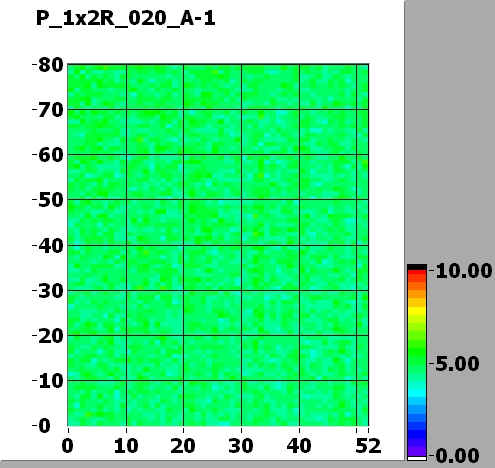

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe95100
Vsf145140
VoffsetOp11595
VIbias_PH100100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.310266

SIGMA = 0.336378
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.658153

SIGMA = 0.375270

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2R_020_A.html,

End testing time: 2:45 PM
